YCT series magnetic speed adjustable three phase induction motor
Product Description
YCT series magnetic speed regulating asynchronous motor is a type of step less AC constant motor torque speed regulating motors. It consists of pulling motor (three-phase induction motor), electromagnetic rotation difference clutch, velocity testing generator and controller. It has some specialties in speed regulating, like wide regulating range, no non-control area, large starting torque, strong and frequent starting without impact on electric network, stable speed and high accuracy, etc.
Application
YCT series speed regulating motors can be used on the equipment requiring accurate control of the operational speed in textile, chemical, metallurgical, building materials industry, paper-making and synthetic resin. It is more suitable to be used on torque-changing centrifugal pump and blower load, replacing the open and close of valve with speed regulating, and thus controlling the flow and pressure in order to better save energy. The mounting arrangement of YCT series electromagnetic speed regulation motors is IMB3. Its protection class is IP21, IC01 method of cooling, Work way is S1 continuous duty, B class insulation.
Work Condition
Operating conditions: The working environment of the electromagnetic speed regulation motors should have little dust, no dust of iron magnetic materials, no explosive gases that corrode metals and destroy insulation.
The altitude is less than 1000m
Ambient temperature is -15°C~+40°C
Packaging and Delivery
Packaging detail: plywood boxes based on international standard
Delivery detail: 5~30 days after payment receipt
| Type | Power(kW) | Rated torque | Speed range | Speed precision | Weight | |
| (kw) | (N.m) | (r/min) | (%) | (kg) | ||
| YCT112 | -4A | 0.55 | 3.6 | 1230-125 | 2.5 | 55 |
| -4B | 0.75 | 4.9 | ||||
| YCT132 | -4A | 1.1 | 7.11 | 1230-125 | 2.5 | 85 |
| -4B | 1.5 | 9.72 | ||||
| YCT160 | -4A | 2.2 | 14.1 | 1250-125 | 2.5 | 120 |
| -4B | 3 | 19.2 | ||||
| YCT180 | -4A | 4 | 25.2 | 1250-125 | 2.5 | 160 |
| YCT200 | -4A | 5.5 | 36.1 | 1250-125 | 2.5 | 250 |
| -4B | 7.5 | 47.7 | ||||
| YCT225 | -4A | 11 | 69.1 | 1250-125 | 2.5 | 420 |
| -4B | 15 | 94.3 | ||||
| YCT250 | -4A | 18.5 | 116 | 1320-132 | 2.5 | 500 |
| -4B | 22 | 137 | ||||
| YCT280 | -4A | 30 | 189 | 1320-132 | 2.5 | 630 |
| YCT315 | -4A | 37 | 232 | 1320-132 | 2.5 | 850 |
| -4B | 45 | 282 | ||||
| YCT355 | -4A | 55 | 344 | 1340-440 | 2.5 | 1700 |
| YCT355 | -4B | 75 | 469 | 1340-440 | 2.5 | 1700 |
| YCT355 | -4C | 90 | 564 | 2.5 | 1700 | |

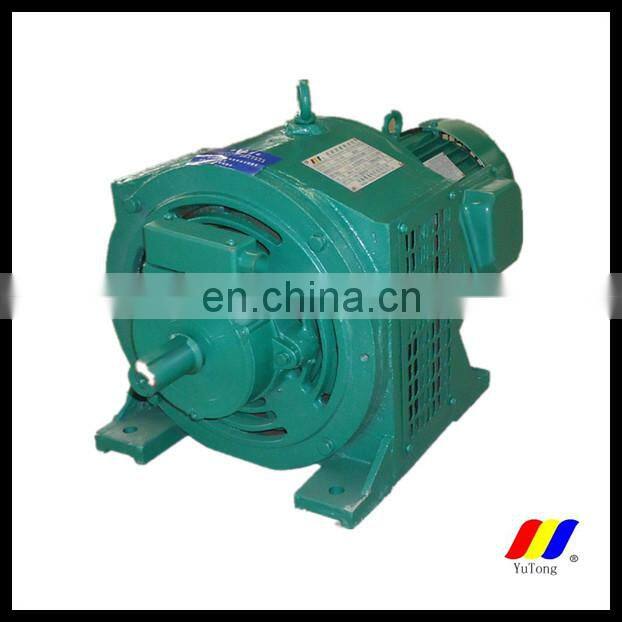

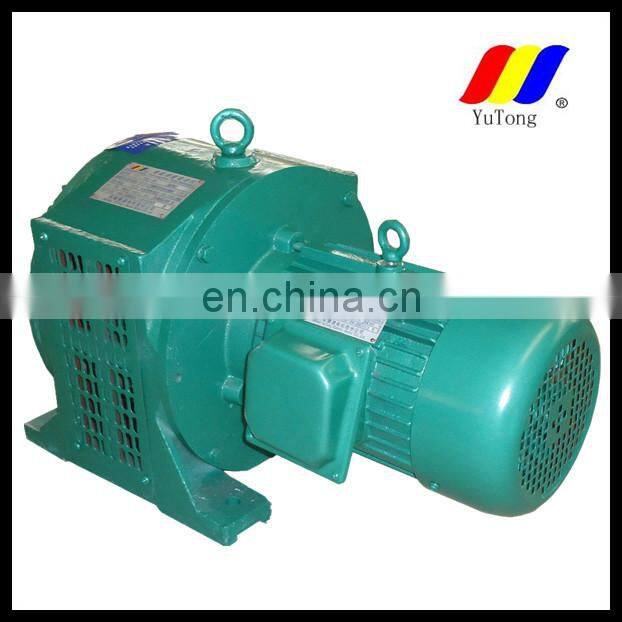

Pictures of product

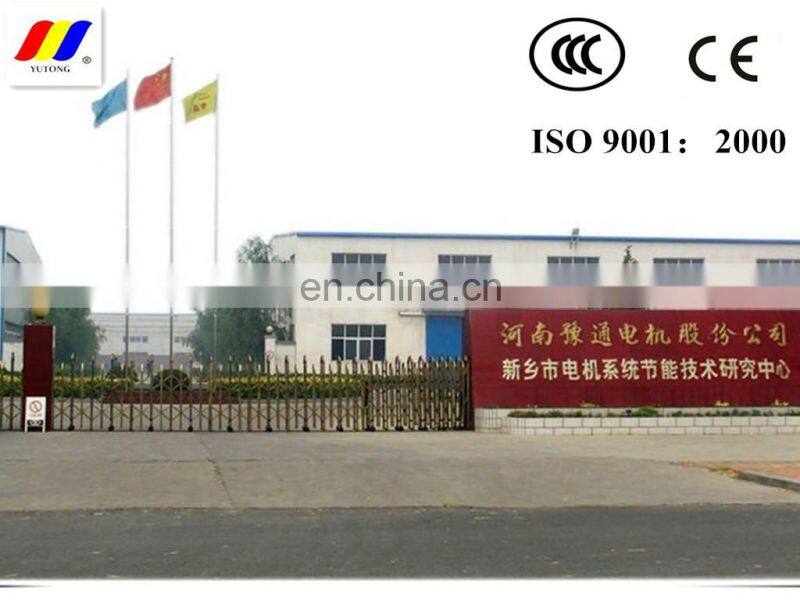

Introduction of Yutong
Henan Yutong Electric Motor Shares Company is the largest processional manufacturer of universal electric motor and vibration motor in Henan Province , located in the North of China with CNY 21.68 million registered capital, more than 500 employees , over 50,000m² production area and 3,000 m² building proportion.

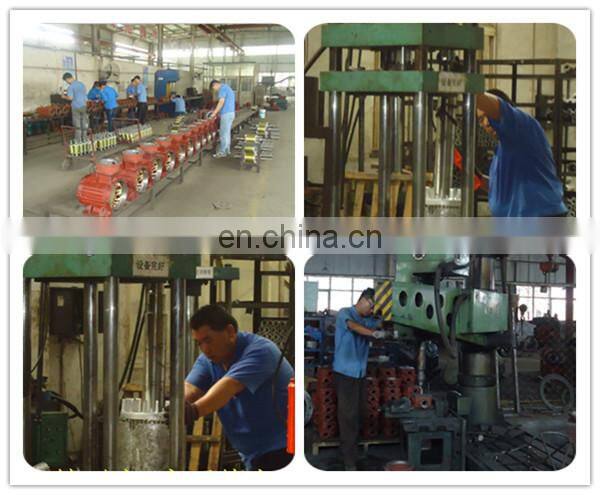

There are five production workshops include assemblage, wire embedded , axis machining, case processing, punching and so on. Yutong motor has advanced equipments include high-precision CNC machine tools, vacuum impregnation,motor core production line, motor assembling production line and digital automatic test lines, the whole process from spare parts processing to motor assembling test can be finished to ensure that motors are in line with
national standards and IEC standard.
Welcome to visit ! We should be grateful for your trial order !
