Three Phase ac Electro Magnetism Speed Regulating Motor
US$ 149 - 2,083
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YUTONG
Place of Origin:
Henan, China
Model Number:
YCT315-4A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ningbo/As request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YCT Three Phase Electro Magnetic Speed Adjustable Electric MotorUS$ 1,399 - 2,099MOQ: 1 Set -
Yutong 3 Phase Electro Magnetic Speed Regulating Electric Motor Wholesale Asynchronous Motor Three-phase Ce Totally EnclosedUS$ 1,399 - 2,099MOQ: 1 Set
-
YCT Series High Quality AC Industrial Electric Magnetic Generator Motor IP55/60HzUS$ 200 - 2,099MOQ: 1 Set
-
YCT Series AC Motor Magnetic Speed RegulatorUS$ 1,399 - 2,099MOQ: 1 Set
-
4hp 3kw YCT Series AC Magnetic Speed Adjustable Three Phase Electric MotorUS$ 1,399 - 2,099MOQ: 1 Set
Brand Name
YUTONG
Place of Origin
Henan, China
Model Number
YCT315-4A
Company Profile
- Henan Yutong Electric Motor Shares Company is the largest processional manufacturer of general electric motor and vibration motor in Henan Province, North China.
- Yutong motor has advanced equipments including high-precision NC machine tool and vacuum impregnation.
- Yutong motor has motor core production line, motor assembling production line and digital automatic test lines, which can complete the whole process from spare parts processing to motor assembling test.
- Our products are sold to all over the world including Indonesia, Chile, Thailand, Russia, South Africa, Spain, India, Vietnam, the United Arab Emirates, Sweden and other countries.
Product Descriptions

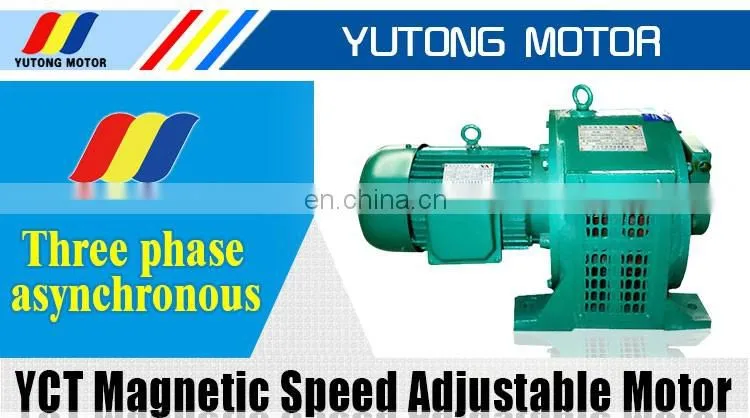

Three Phase ac Electro Magnetism Speed Regulating Motor
- A type of stepless speed-adjustable motor with AC constant torque
- It consists of electromagnetic slipping clutch of pulling motor (three-phase induction motor), velocity-testing generator and controller.
- With wide regulating range, no non-control area, large starting torque, strong and frequent starting without impact on electric network, stable speed and high accuracy.
- Can be widely used in textile, chemical, metallurgical, building materials industry, paper-making and synthetic resin.
Technical Specifications
- Output Range: 0.55KW~450KW
- Voltage: 415V/380V/660V/as required
- Frequency: 50Hz/60Hz/as required
- No. of Poles: 2, 4, 6, 8, 10, etc
- Speed: 450rpm~3000rpm
- Torque: 3.6Nm~564Nm
- Protection class: IP21
- Cooling method: IC01
- Duty type: S1
- Insulation class: B
- Connection: Y/D
- Mounting styles: B3/B5/B35/V1, etc.
- Altitude: less than 1000m
Product Model |
Power of the Motor (kW) |
Rated Torque (N·m) |
Speed Adjustable Range (r/min) |
|
YCT112-4A |
0.55 |
3.6 |
1250-125 |
|
YCT112-4B |
0.75 |
4.9 |
1250-125 |
|
YCT132 -4A |
1.1 |
7.1 |
1250-125 |
|
YCT160-4A |
2.2 |
14.1 |
1250-125 |
|
YCT160-4B |
3 |
19.2 |
1250-125 |
|
YCT180-4A |
4 |
25.2 |
1250-125 |
|
YCT200-4A |
5.5 |
36.1 |
1250-125 |
|
YCT225-4A |
11 |
69 |
1250-125 |
|
YCT225-4B |
15 |
94 |
1250-125 |
|
YCT250 -4A |
18.5 |
110 |
1320-132 |
|
YCT250 -4B |
22 |
137 |
1320-132 |
|
YCT315-4A |
37 |
232 |
1320-132 |
|
YCT315-4B |
45 |
282 |
1320-132 |
|
YCT355-4A |
55 |
344 |
1340-440 |
|
YCT355-4B |
75 |
469 |
1340-440 |
|
YCT355-4C |
90 |
564 |
1340-600 |
