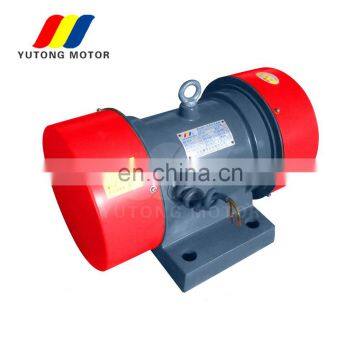

AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor

AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-1
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-2
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-3
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-4
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-5
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor thumbnail-6
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-1
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-2
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-3
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-4
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-5
AC Electric Three Phase Wound Rotor Low Rpm Speed Control Induction Electric Vibrating Motor photo-6
US$ 50 - 2,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yu Tong
Place of Origin:
Henan, China
Model Number:
YZS
Contact Supplier Request Quote Chat Now
Henan Yutong Electric Motor Shares Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yu Tong
Place of Origin Henan, China
Model Number YZS
Company Profile

•　Henan Yutong Electric Motor Shares Company is the largest processional manufacturer of general electric motor and vibration motor in Henan Province, North China.

•　We are Motor Manufacturer, and have own factory.

•　We mainly manufacture 3-phase ac asynchronous electric motor.
•　All motors based on IEC standard.
•　All the motors from our factory have one year quality warranty.

Product Description

AC electric Three Phase wound rotor low rpm Speed Control induction electric Vibrating Motor

•　Widely used in electricity, building materials, grain, coal mining, metallurgy, light industry, chemical industry, cement, railways, ports, etc.

•　 Using as vibrating feeder, vibrating conveyor, vibrating beneficiation, vibrating sand-off, vibrating screening and silo vibration anti-clogging.
•　 Small bulk, light weight, strong oscillatory power, stable vibration amplitude, adjustable vibration force, wholly sealed machine shell.
•　YZD series multi-speed vibrating motor and YZVP series frequency variable and speed adjustable vibration motor can be provided.
Technical Data

Output Range: 0.55KW~11KW
Voltage: 415V/440V/380V/660V/as required
Frequency: 50Hz/60Hz/as required
No. of Poles: 2, 4, 6, 8, 10, etc
Speed: 450rpm~3000rpm
Protection class: IP44, IP54, IP55, etc.
Insulation class: B or F
Duty type: S1
Cooling method: IC0041
Connection: Y/D
Mounting style: B3
Altitude: less than 1000m
Working temperature:-15℃~40℃

Product Model
Parameters
Product Model
Max. Vibration Force (KN)
Rated Output
(kW)
Product Model
Max. Vibration Force (KN)
Rated Output
(kW)
YZS-1-2
1
0.09
YZS-75-4
75
3.7
YZS-1.5-2
1.5
0.12
YZS-100-4
100
6.3
YZS-2.5-2
2.5
0.22
YZS-3-6
3
0.25
YZS-3-2
3
0.25
YZS-5-6
5
0.37
YZS-5-2
5
0.37
YZS-8-6
8
0.75
YZS-8-2
8
0.75
YZS-10-6
10
0.75
YZS-10-2
10
0.75
YZS-15-6
15
1.1
YZS-15-2
15
1.1
YZS-20-6
20
1.5
YZS-20-2
20
1.5
YZS-30-6B
30
2.2
YZS-30-2
30
2.2
YZS-30-6
30
2.2
YZS-50-2
50
3.7
YZS-40-6
40
3
YZS-1-4
1
0.09
YZS-50-6B
50
3.7
YZS-1.5-4
1.5
0.12
YZS-50-6
50
3.7
YZS-2.5-4
2.5
0.18
YZS-75-6B
75
5.5
YZS-3-4
3
0.18
YZS-75-6
75
5.5
YZS-5-4
5
0.25
YZS-100-6
100
7.5
YZS-8-4
8
0.55
YZS-120-6
120
9.5
YZS-10-4
10
0.55
YZS-140-6
140
11
YZS-15-4
15
0.75
YZS-10-8
10
0.75
YZS-20-4
20
1.1
YZS-20-8
20
1.5
YZS-30-4
30
1.5
YZS-30-8
30
2.2
YZS-50-4
50
2.2
YZS-50-8
50
3.7

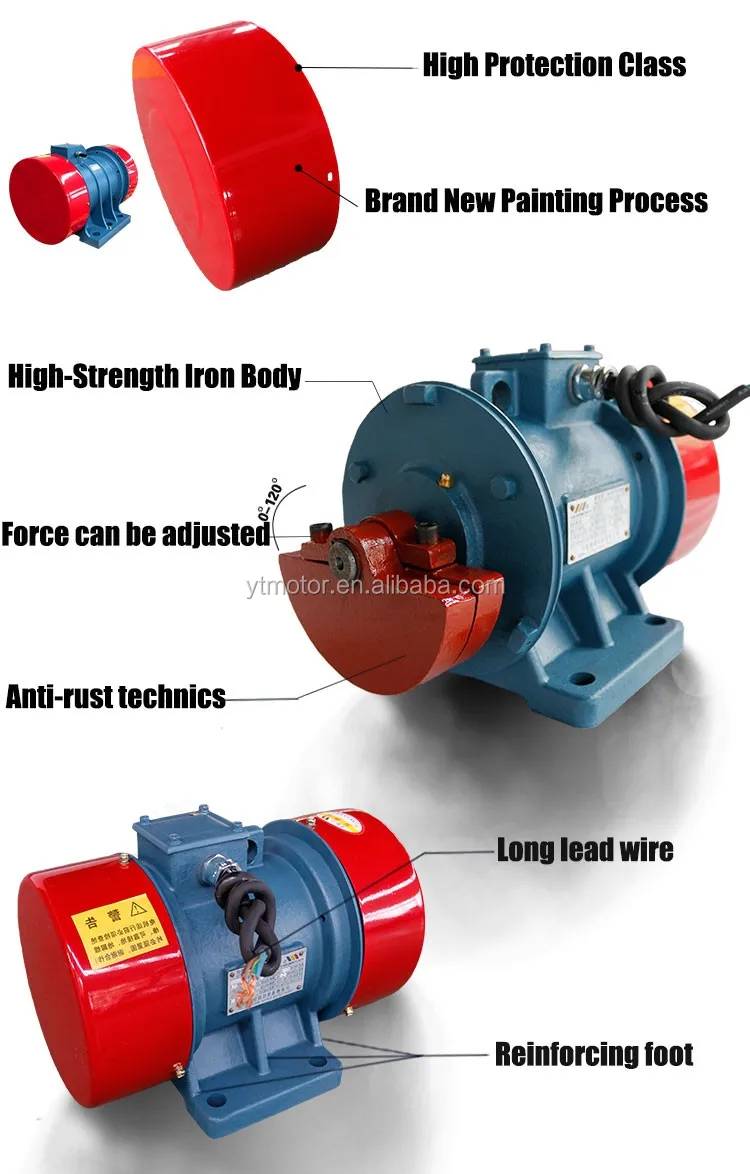

Detailed Images
