Home > Electrical & Electronics > Electric Motor > Stepper Motor > 3kw Induction Motor 3-phase Vibrating Table Motor

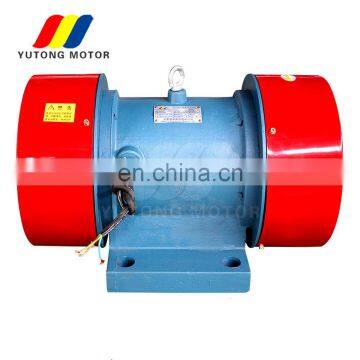

3kw Induction Motor 3-phase Vibrating Table Motor
US$ 90 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yu Tong
Place of Origin:
China
Model Number:
YZS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110v 220v 240v 3phase ac Asynchronous Vibrating Motor Vibrator MotorUS$ 90 - 3,000MOQ: 1 Set -
3 Phase 20hp 220 Volt ac Electric Concrete Mold Vibrator MotorUS$ 90 - 3,000MOQ: 1 Set
-
1.5KN 0.12KW Small Vibrating Motor 3 Phase AC VibratorUS$ 55 - 66MOQ: 10 Sets
-
YZS Industrial Vibrating Vibro MotorUS$ 60 - 3,011MOQ: 1 Set
-
Yutong Factory Price Unbalance Vibratory MotorUS$ 56 - 1,550MOQ: 2 Sets
Brand Name
Yu Tong
Place of Origin
China
Model Number
YZS
Company Profile
- Henan Yutong Electric Motor Shares Company is the largest processional manufacturer of general electric motor and vibration motor in Henan Province, North China.
- Yutong motor has advanced equipments including high-precision NC machine tool and vacuum impregnation.
- Yutong motor has motor core production line, motor assembling production line and digital automatic test lines, which can complete the whole process from spare parts processing to motor assembling test.
- Our products are sold to all over the world including Indonesia, Chile, Thailand, Russia, South Africa, Spain, India, Vietnam, the United Arab Emirates, Sweden and other countries.
Product Descriptions
- Widely used in electricity, building materials, grain, coal mining, metallurgy, light industry, chemical industry, cement, railways, ports, etc.
- Using as vibrating feeder, vibrating conveyor, vibrating beneficiation, vibrating sand-off, vibrating screening and silo vibration anti-clogging.

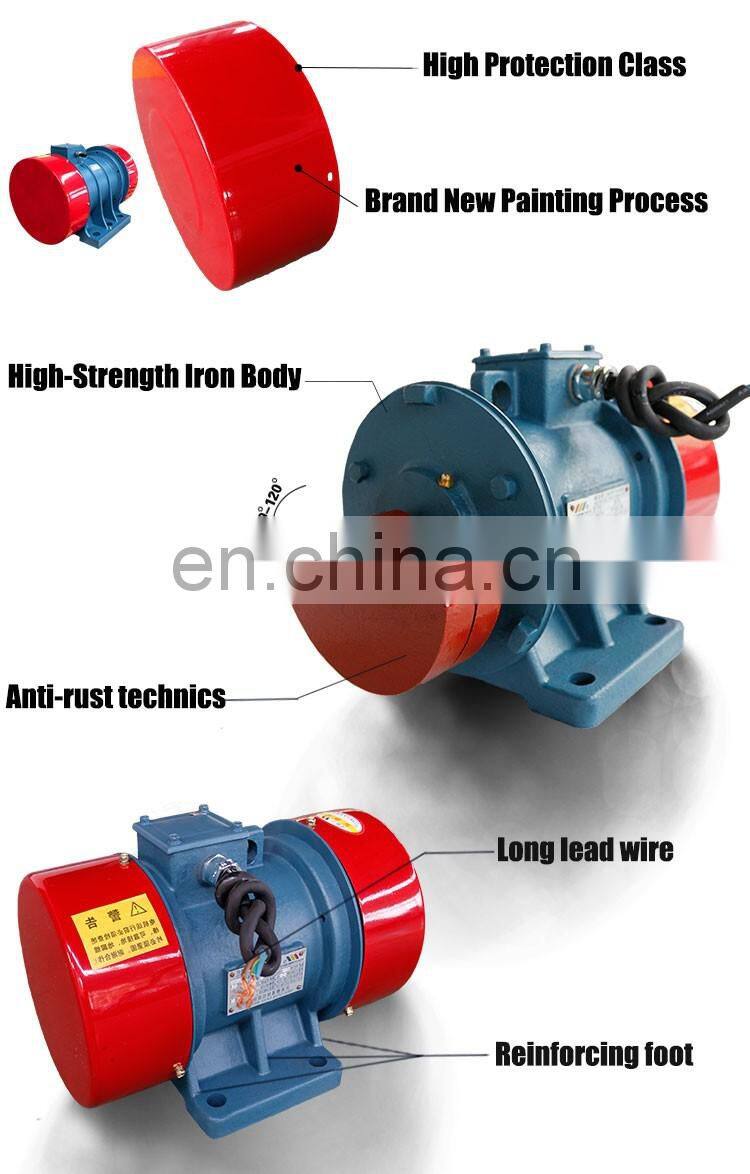

- Small bulk, light weight, strong oscillatory power, stable vibration amplitude, adjustable vibration force, wholly sealed machine shell.
- YZD series multi-speed vibration motor and YZVP series frequency variable and speed adjustable vibration motor can be provided.
Technical Specifications
- Output Range: 0.55KW~11KW
- Voltage: 380V/415V/440V/660V/as required
- Frequency: 50Hz/60Hz/as required
- No. of Poles: 2, 4, 6, 8, 10, etc
- Speed: 450rpm~3000rpm
- Protection class: IP44, IP54, IP55, etc.
- Insulation class: B or F
- Duty type: S1
- Cooling method: IC0041
- Connection: Y/D
- Mounting style: B3
- Altitude: less than 1000m
- Working temperature:-15℃~40℃
Product Model |
Max. Vibration Force |
Rated Output |
Product Model |
Max. Vibration Force |
Rated Output |
(KN) |
(kW) |
(KN) |
(kW) |
||
YZS-10-2 |
10 |
0.75 |
YZS-20-6 |
20 |
1.5 |
YZS-15-2 |
15 |
1.1 |
YZS-30-6B |
30 |
2.2 |
YZS-20-2 |
20 |
1.5 |
YZS-30-6 |
30 |
2.2 |
YZS-30-2 |
30 |
2.2 |
YZS-40-6 |
40 |
3 |
YZS-50-2 |
50 |
3.7 |
YZS-50-6B |
50 |
3.7 |
YZS-10-4 |
10 |
0.55 |
YZS-50-6 |
50 |
3.7 |
YZS-15-4 |
15 |
0.75 |
YZS-75-6B |
75 |
5.5 |
YZS-20-4 |
20 |
1.1 |
YZS-75-6 |
75 |
5.5 |
YZS-30-4 |
30 |
1.5 |
YZS-100-6 |
100 |
7.5 |
YZS-50-4 |
50 |
2.2 |
YZS-120-6 |
120 |
9.5 |
YZS-50-4 |
50 |
4.5 |
YZS-140-6 |
140 |
11 |
YZS-75-4 |
75 |
3.7 |
YZS-10-8 |
10 |
0.75 |
YZS-100-4 |
100 |
6.3 |
YZS-20-8 |
20 |
1.5 |
YZS-10-6 |
10 |
0.75 |
YZS-30-8 |
30 |
2.2 |
YZS-15-6 |
15 |
1.1 |
YZS-50-8 |
50 |
3.7 |
