Specifications
1. 6kw induction ac motor
2.Y/Y2/YE2/YE3-132S-2-7.5KW
3. Frame:132mm
4. 100% copper wire
5.CE,CCC certificate

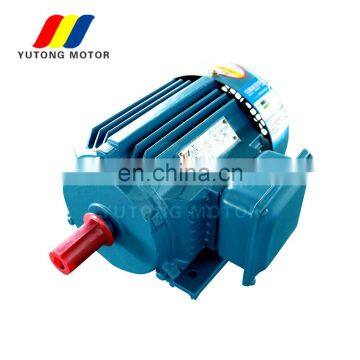

3 phase 6kw induction ac motor
Induction Motor description:
Brand Name |
YUTONG |
Model Number |
Y/Y2/YE2/YE3-132S-2 |
Type |
6kw induction ac motor |
Frequency |
50HZ/60HZ |
Output Power |
6KW |
Phase |
Three Phase |
Certification |
CE, CCC, IS9001,IS2008 |
Rated voltage |
110V/220V/380V/420V/440V/460V/525V/660V ±5% |
Efficiency |
IE1/IE2/IE3 |
Frame |
Cast Iron or aluminum |
Poles |
2 , 4 ,6 ,8,10 |
Ambient temperature |
-15° ℃ ≤0 ≤ 40 ℃ |
Altitude |
not exceeding 1000 Meters |
Duty |
Continuous running |
Insulation Class |
B/F/H |
Protection Class |
IP54/IP55/IP65 |
Cooling Method |
IC0141 (total-enclosed fan-cooled type) |
Price |
USD |
Minimum Order Quantity |
10 PCS |
Packaging Details |
Plywood case |
Delivery Time |
10-15 working days after received the payment |
Payment Terms |
L/C,T/T,Western Union |
Supply Ability |
10000 Pieces per Month |
Material |
100% copper wire |
Mounting types |
IMB3, IMB5,IMB35 IMV1,IMV3 and ect. |
Speed |
740-3000rpm |
Relative humidity |
not higher than 90% |
Special motors can be designed according to customers' requirements | |
Induction motor main technical parameter:
1,Cast iron housing(frame), end shields, terminal box;
2, Motors are made to heavy duty service factors;
3, Vacuum impregnated windings;
4, High performance and efficiency;
5, Available size: H80 ~ H355, with 2/4/6/8/10 poles,
6, Rated output: 0.18KW ~ 315KW (0.25HP ~ 430HP)
7, Mounting arrangements: B3, B5, B35, B14, B34,V1;
8, Mounting dimensions according to IEC60072-1: 1991.
Operating Conditions of ac induction motor series
Ambient temperature: -15C~40C
Altitude: Up to 1000 meters
Rated voltage: 380V, 400V, 415V
Rated frequency: 50Hz, 60Hz
Connection: Star-connection for motors up to 3KW
Delta-connection for motors 4KW and up

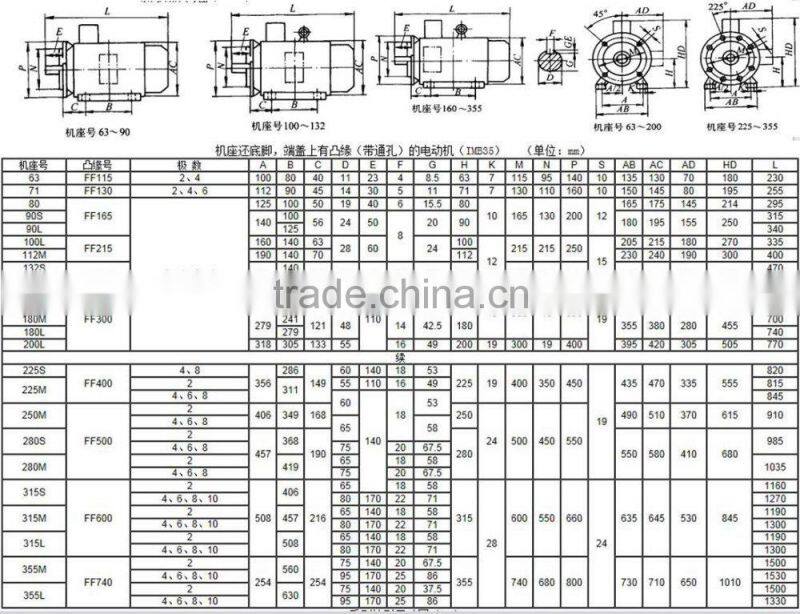

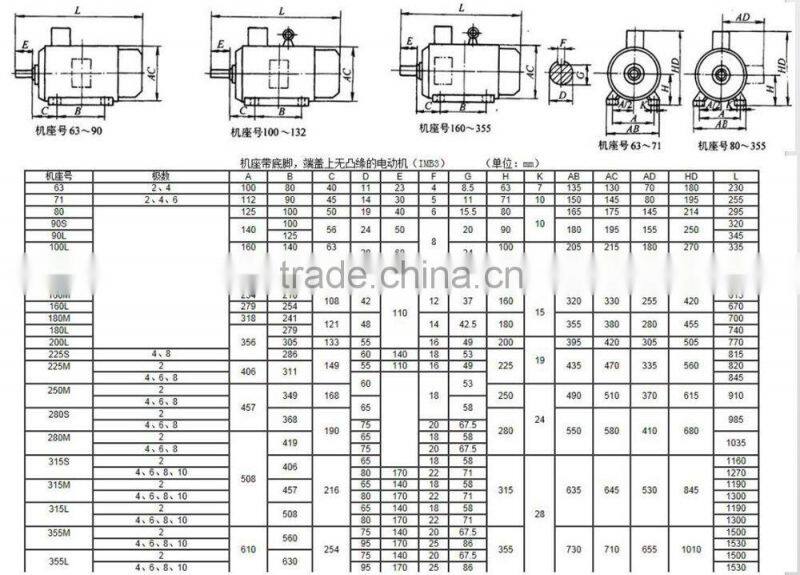

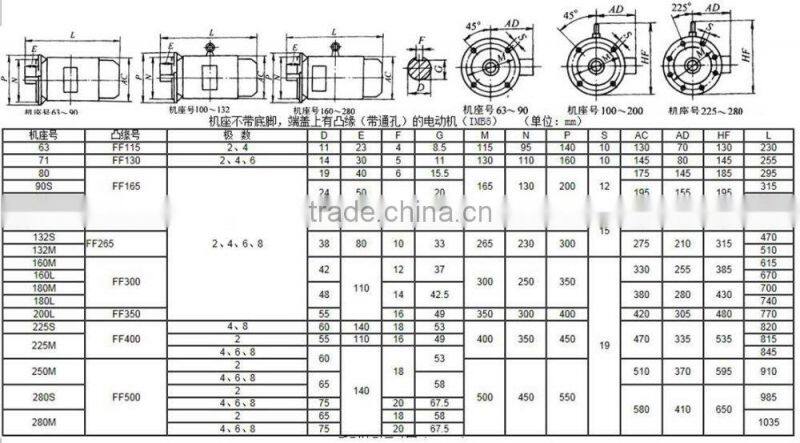

Induction motor mounting:
IMB3
IMB5
IMB35
Induction Motor Packaging:
Packing: Small size:standard export packing(carton and plled) Big size:fumigated wood carton or non-wood packing material carton
Shipping: by sea ,by air,by rill way

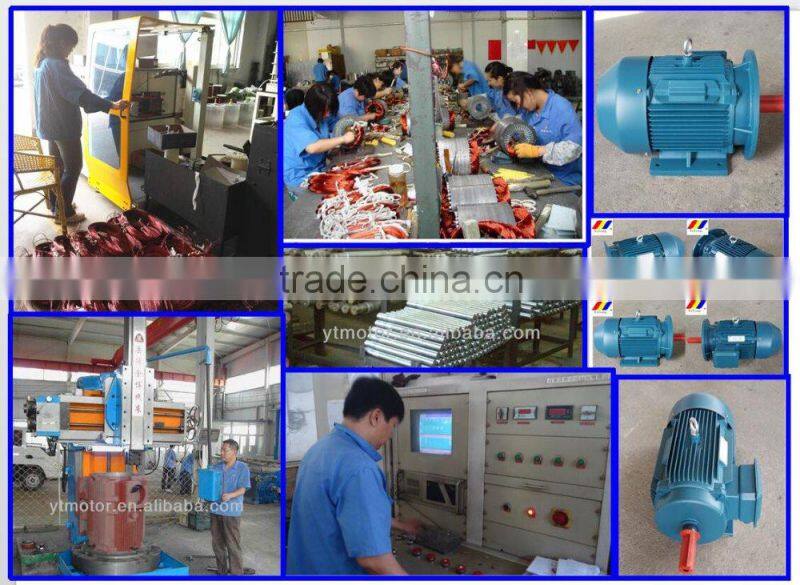

Induction motor manufacturing process:
• Stamping of lamination
• Rotor die-casting
• Winding and inserting – both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting – both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packing
Exhibition:
Certificates:
Serivce:
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
Pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
After sales service:
•We respect your feed back after receive the goods.
•We provide 24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We loge your complain within 48hours.
A:What is your MOQ of this item ?
B:10 pcs per item.
A:What is our lead time ?
B:25-30 days.
A:What is your payment?
B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Qingdao port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.
