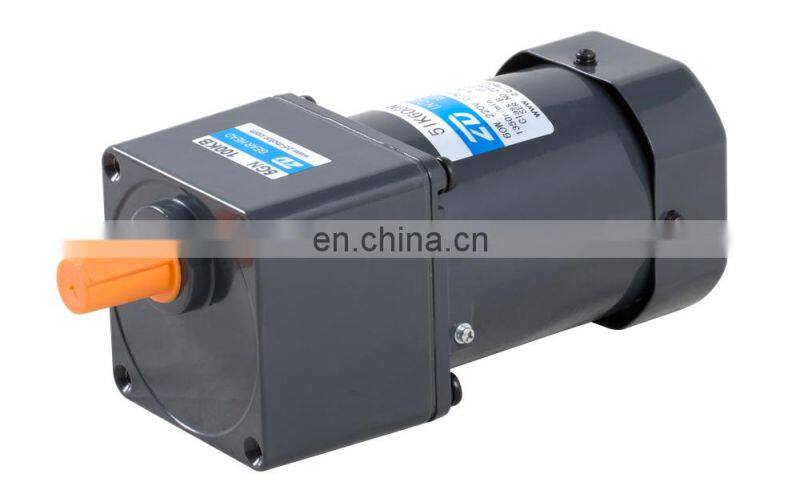

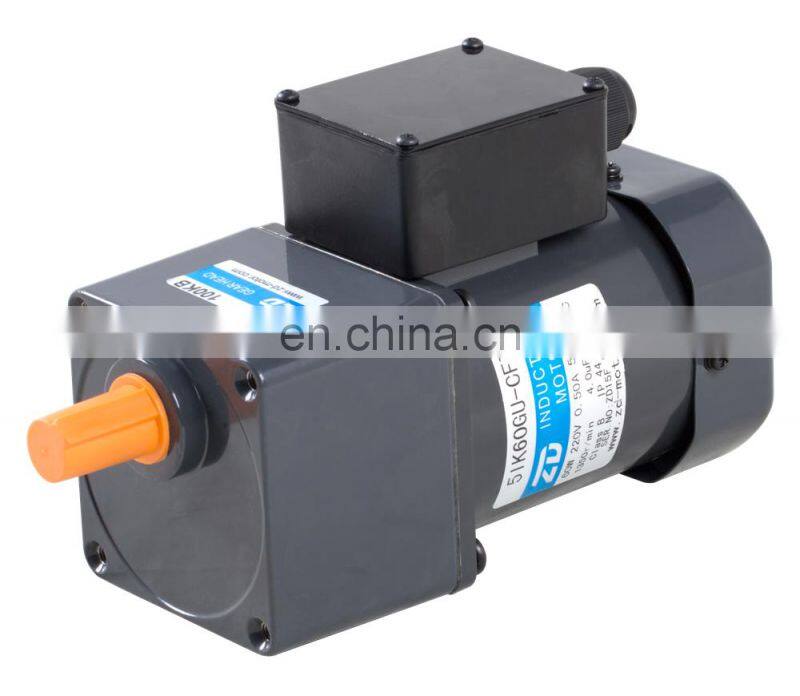

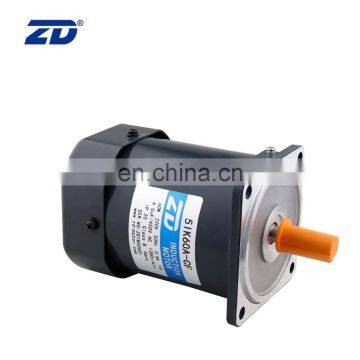

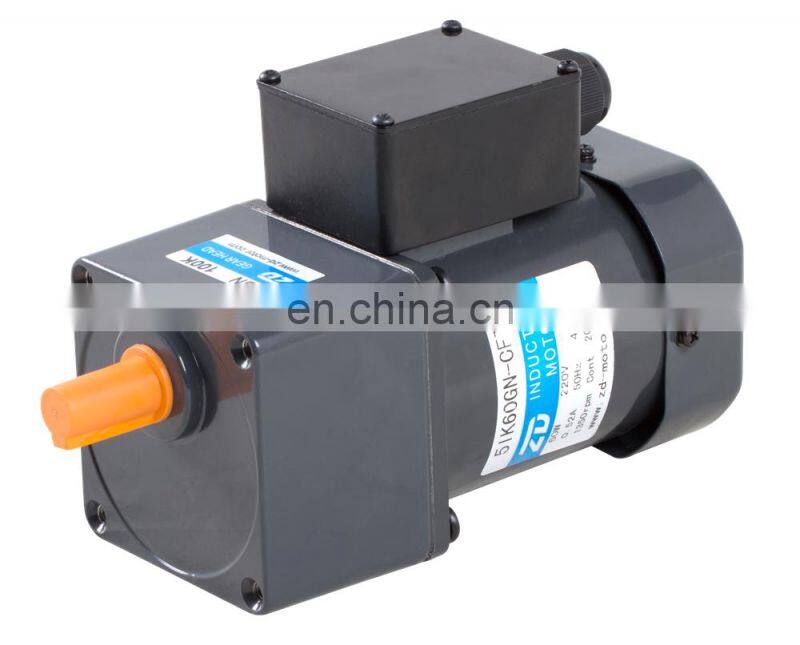

ZD 60W AC Single Phase 220V Induction Gear Motor for Face Mask Making Machine 5IK60GN-C/5GN7.5K

MOTOR FRAME SIZE

 60 mm / 70mm / 80mm / 90mm / 104mm

MOTOR TYPE

INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR

SERIES

 K series

OUTPUT POWER

3 W / 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (can be customized)

OUTPUT SHAFT

8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, key way shaft (can be customized)

Voltage type

Single phase 100-120V 50/60Hz 4P

Single phase 200-240V 50/60Hz 4P

Three phase 200-240V 50/60Hz

Three phase 380-415V 50/60Hz 4P

Three phase 440-480V 60Hz 4P

Three phase 200-240/380-415/440-480V 50/60/60Hz 4P

Accessories

Terminal box type / with Fan / thermal protector / electromagnetic brake

Above 60 W, all assembly with fan

GEARBOX FRAME SIZE

60 mm / 70mm / 80mm / 90mm / 104mm

GEAR RATIO

MINIMUM 3:1---------------MAXIMUM 750:1

GEARBOX TYPE

PARALLEL SHAFT GEARBOX  AND STRENGTH  TYPE

Right angle hollow worm shaft

Right angle spiral bevel hollow shaft

L type hollow shaft

Right angle solid worm shaft

Right angle spiral bevel solid shaft

L type solid shaft

K2 series air tightness improved type

Certification

CCC  CE  UL  RoHS

General

1,Please don’t use motor out of the range which is clarified of the nameplate of gear box and motor and the specification of the product catalogue,avoiding getting an electric shock,hurting or damaging the device.

2,Please do not put your fingers into the opening part of the gear of motor,in order to preventing an electric shock,hurting catching a fire or damaging device,etc.

3,Please do not use the injured gear or motor,in order to prevent catching a fire etc.

4,Please do not put off the nameplate

5,If the product are reformed by the customers personally, it no belongs to the warranty period. And our company do not undertake any responsibility.

Moving

When you move it,if it shed off or tit to one side, it is very dangerous,please pay more attention.

Assembly

1,Please never put the flammable thing near the gearbox and motor,for fear of a fire.

2,Please do not put the things around the motor,otherwise it can effect ventilation and cooling,even burning or catching a fire because of too hot.

3,Please do not touch the gear,the motor shaft and the key slot of the gear with naked hand,or you may be hurt.

4,The device may create the oil, such as food machine, please add an oil cup assembly part, to prevent leaking oil which may have a bad effect.

Assemble to the main machine

1,Please set a safe cover above the revolving part,to prevent being hurt.

2,Before connecting to the other machine, please confirm the revolving direction, it may hurt the gear motor or destroy the device.

Operation

1,Please connect with the electric power according to wire diagram and usage manual, in order to prevent getting an electric shock or catching a fire.(no terminal box, please strengthen the insulation of the connection part surely)

2,Referring to the electrical source cable and the motor wire, please do not bend, stretch, and clip tightly excessively, in order to prevent getting an electric shock.

3,The terminal box connecting to the ground must be firm, in order to prevent getting an electric shock. Please adopt the electrical source according to the nameplate, to avoid burning the motor and catching a fire.

The daily check and maintain

1,When operating, do not get close to or touch the revolving parts (shaft). If something or somebody engulfs or hurts, Please turn off the electrical power switch right and handle at once.

2,Please turn off the electrical source switch when electricity stops, in order to prevent hurting the person and damaging the device

3,Please note, motor with the thermal protector, when temperature of the motor is unusual, it will turn off the electrical source automatically, whenthe temperature of the motor fall down to a fixed data, the motor can work automatically.(Note: when the motor is not burned-not, the motor can work automatically)

Receiving confirm

1,Please confirm if it is the right one with the order when receiving. Choosing wrong probably leads to damage of motor of damage the device and etc.
