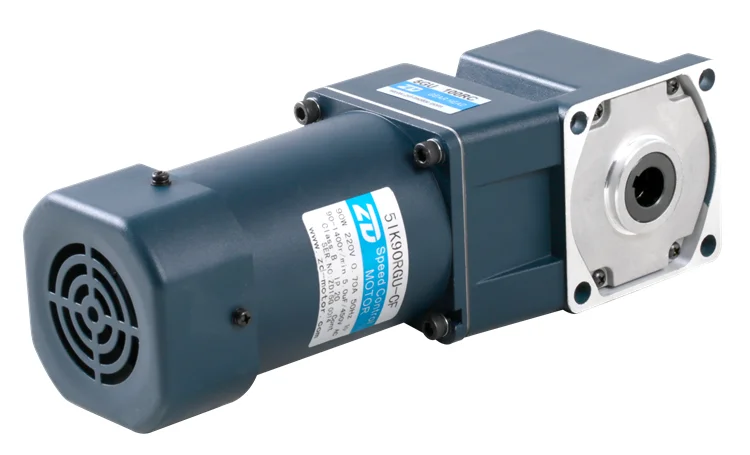

ZD 220V Single Phase AC 90W Induction Gear Motor Speed Control for Face Mask Making Machine
US$ 82 - 88
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZD MOTOR
Place of Origin:
Zhejiang, China
Model Number:
51K90RGU-CF/5GU5KB
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO /SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110v 40w ac Gear Motor and ControllersUS$ 60 - 60MOQ: 1 Piece -
ac Gear Motor Speed Controller 40wUS$ 60 - 60MOQ: 1 Piece
-
Motor Reversible 6w With Gear Reduction PaypalUS$ 60 - 60MOQ: 1 Piece
-
110v 220v ac Motor Single With Reduction GearUS$ 60 - 60MOQ: 1 Piece
-
ac Gear Head Motors ac 15 w 110v SynchronousUS$ 60 - 60MOQ: 1 Piece
Brand Name
ZD MOTOR
Place of Origin
Zhejiang, China
Model Number
51K90RGU-CF/5GU5KB
Certification
CCC, CE, ROHS, UL
Efficiency
IE 2
ZD BRAND AC INDUCTION GEAR MOTOR,REVERSIBLE MOTOR,SPEED CONTROL MOTOR ,BRAKE MOTOR,SINGLE PHASE,THREE PHASE.
Product Paramenters
MOTOR FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm | |||||||
MOTOR TYPE | INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR | |||||||
SERIES | K series | |||||||
OUTPUT POWER | 3 W / 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (can be customized) | |||||||
OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, key way shaft (can be customized) | |||||||
Voltage type | Single phase 100-120V 50/60Hz 4P | Single phase 200-240V 50/60Hz 4P | ||||||
Three phase 200-240V 50/60Hz 4P | Three phase 380-415V 50/60Hz 4P | |||||||
Three phase 440-480V 60Hz 4P | Three phase 200-240/380-415/440-480V 50/60/60Hz 4P | |||||||
Accessories | Terminal box type / with Fan / thermal protector / electromagnetic brake | |||||||
Above 60 W, all assembly with fan | ||||||||
GEARBOX FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm | |||||||
GEAR RATIO | MINIMUM 3:1---------------MAXIMUM 750:1 | |||||||
GEARBOX TYPE | PARALLEL SHAFT GEARBOX AND STRENGTH TYPE | |||||||
Right angle hollow worm shaft | Right angle spiral bevel hollow shaft | L type hollow shaft | ||||||
Right angle solid worm shaft | Right angle spiral bevel solid shaft | L type solid shaft | ||||||
K2 series air tightness type | K3 | New design is coming | Customized | |||||
Certification | CCC CE UL RoHS | |||||||
