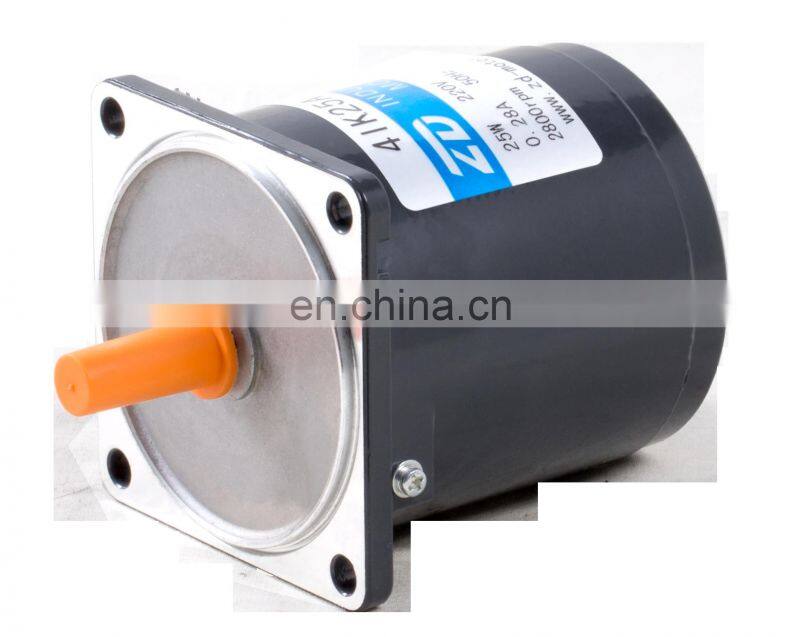

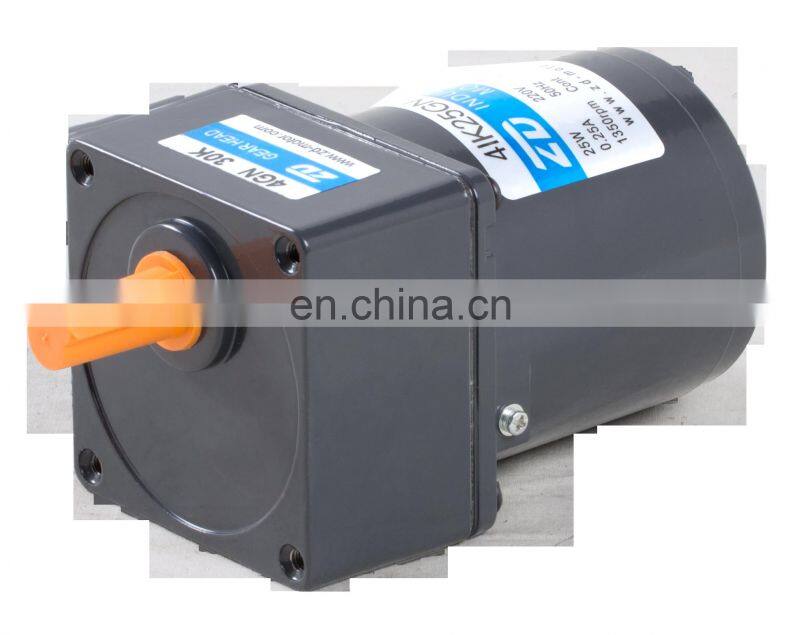

Low Speed Long Life Single Phase 220V 120W AC Induction Gear Motor for Packing Machine

MOTOR FRAME SIZE

 60 mm / 70mm / 80mm / 90mm / 104mm

MOTOR TYPE

INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR

SERIES

 K series

OUTPUT POWER

3 W / 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (can be customized)

OUTPUT SHAFT

8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, key way shaft (can be customized)

Voltage type

Single phase 100-120V 50/60Hz 4P

Single phase 200-240V 50/60Hz 4P

Three phase 200-240V 50/60Hz

Three phase 380-415V 50/60Hz 4P

Three phase 440-480V 60Hz 4P

Three phase 200-240/380-415/440-480V 50/60/60Hz 4P

Accessories

Terminal box type / with Fan / thermal protector / electromagnetic brake

Above 60 W, all assembly with fan

GEARBOX FRAME SIZE

60 mm / 70mm / 80mm / 90mm / 104mm

GEAR RATIO

MINIMUM 3:1---------------MAXIMUM 750:1

GEARBOX TYPE

PARALLEL SHAFT GEARBOX  AND STRENGTH  TYPE

Right angle hollow worm shaft

Right angle spiral bevel hollow shaft

L type hollow shaft

Right angle solid worm shaft

Right angle spiral bevel solid shaft

L type solid shaft

K2 series air tightness improved type

Certification

CCC  CE  UL  RoHS
