Specification
1- Material: low carbon iron wire
2- Wire Diameter: BWG8(4.2mm) to BWG28(0.35mm)
3- Tensile Strength:350-500 Mpa
4- Electro Galvanized Wire Zinc Coating: 12-15g/ m2
5- Hot Dip Galvanized Wire Zinc Coating: 50-60g/ m2

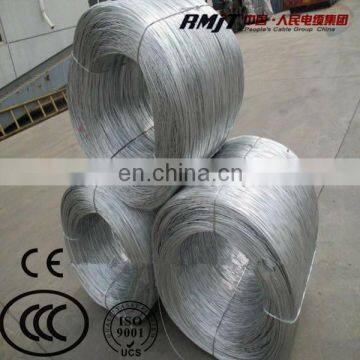

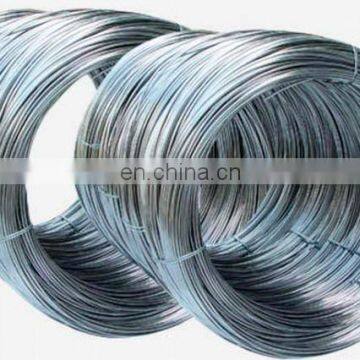

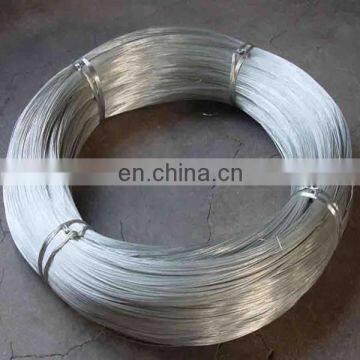

3mm 5mm high tensile strength galvanized steel wire price
We can make various type of GI Wire/Electro galvanized wire, Hot dip galvanized wire, Black Annealed Wire accoring to your requirements.
1.Application of galvanized steel wire price
Galvanized steel wire strand /guy wire /stay wire is used for ACSR Core , pulling pole ,overhead conductor, Messenger wire ,Static wire, Guy wire, Guide rail cable.
2.Technical information of galvanized steel wire price
Material: super carbon steel
Processing by drawing, hot-dipped galvanizing
Standard wire gauge from 8BWG to 30BWG
Thick zinc-coating layer
Super in corrosion resistance
Firm coating layer
Custom size available
Gauge |
SWG in mm |
BWG in mm |
metric mm |
Common weight/coil
|
8 # |
4.06 |
4.19 |
4.00 |
50-100kgs
|
10# |
3.25 |
3.40 |
3.50 |
50-100kgs
|
12# |
2.64 |
2.77 |
2.80 |
50-100kgs
|
14# |
2.03 |
2.11 |
— |
50-100kgs
|
16# |
1.63 |
1.65 |
1.65 |
50-100kgs
|
18# |
1.22 |
1.25 |
1.20 |
5-25kgs
|
20# |
0.91 |
0.89 |
0.90 |
5-25kgs
|
21# |
0.81 |
0.813 |
0.80 |
5-25kgs
|
22# |
0.71 |
0.711 |
0.70 |
5-25kgs
|
People's Cable Group, as one of the country's regional enterprise has the domestic first-class production system,Professional high school producton of low-voltage wire and cable series,the main products are cable of rail transportation,aviation special cables,solar photovoltaic special cables,computer cables,LSZH cables,overhead conductors of large cross-section,special signal transmission cable,35kv and the following cross-linked polyethylene insulated power cables,PVC ACSR 100 varieties,more than 3000 specifications.Products supporting the national grid,the Minitry of Railways,Ministry of Water Resources and other national key projects as well as more than a dozen countries and regions in Southeast Asia,the Middle East,South America and other large and medium-sized construction projects,customers have been trusted.

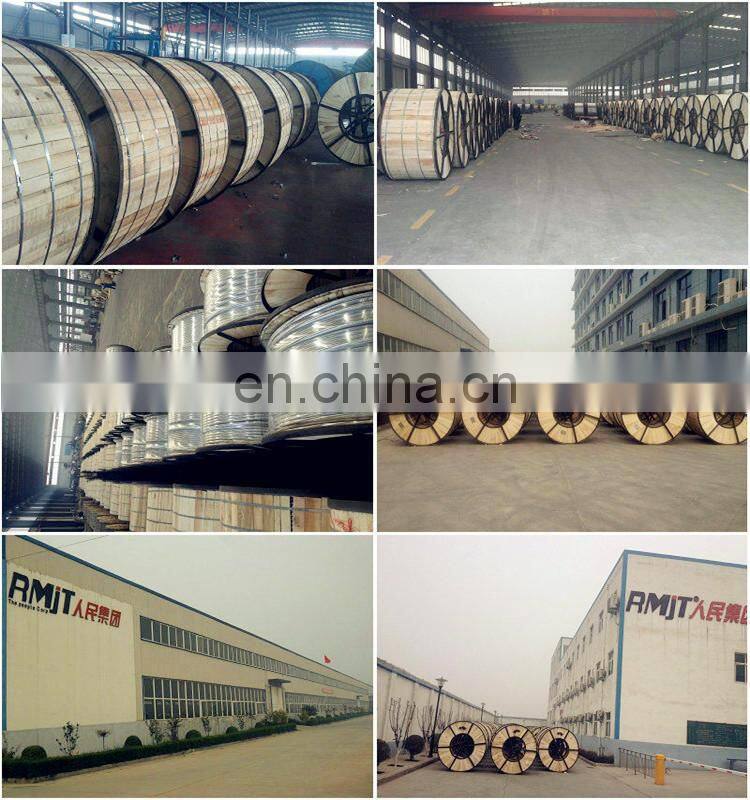

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
