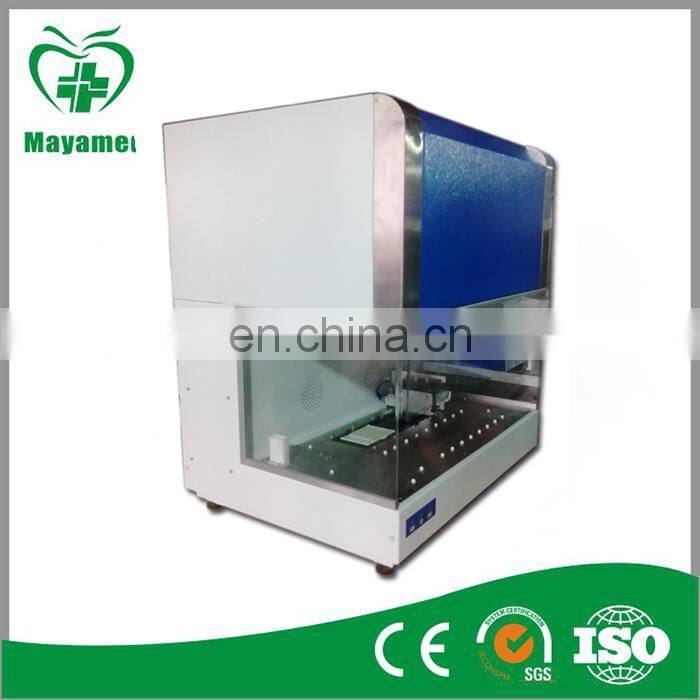

MY-B023A Fully Automated Elisa Analyzer

   MY-B023A Fully Automated Elisa Analyzer

Fully automated ELISA analyzer is a 2 micro-plate fully automated processor able to operate the dispense, incubation, reading, data processing and storage of results.
Its user friendly approach for both software and hard ware allows the operator to start working with the instrument as soon as it is out of the box, no pre-adjustments or calibrations required.

Type:Fully automated ELISA analyzer
Sample racks:60 or 80 – 12 mm sample tubes or 40 - 16 mm sample tubes
Dilution rack:92 positions
Reagents holder
modular racks to hold calibrators, controls and reagents for 8 methods on line
Liquid reservoirs
external tanks equipped with level sensors; 2 washing buffer
Microtiter plates
2 plates (96 wells) with incubation capability, from room temperature to 45 °C
Dispensing system
1 aspirating-dispensing probe with X-Y-Z movement; dilution system with a syringe of 1000 μl, continuous flow washing station
Washing system
two 8 nozzle on line manifolds with automatic adaptation for the different micro-plates height
Washing Residual volume:< 3μl
Washing inaccuracy: CV < 5 % with 300 μl
Reading system:8 independent photometric channels for mono and bichromatic reading
Optical filters:2 filters (450 and 630 nm); 2 more on request (max 4 filters)
Readinginaccuracy± 1% from 0.000 to 1.500 OD ± 2% from 1.500 to 3.000 OD
Dispensation:from 8 ml to 1000 ml with 1μl resolution; inaccuracy ±1% with 100 μl
Software:
Windows 98 and XP operating system, to set up the work list, patient reports and results filing; calibration curves storage for each carried-out test
Connection:
LIS interface capability, work list set up from Host computer.
Capability of connecting more instruments to a single PC.
Power Supply:200/110 VAC, 50-60 Hz
Dimension:620 x 820 x 720
Weight:80 Kg
Optional:Sample Bar Code Reader
