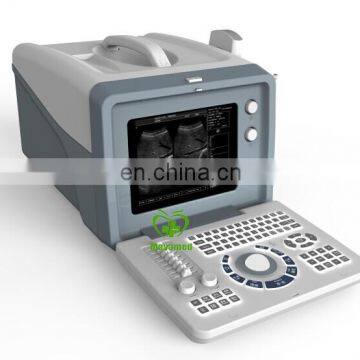

MY-A001A Laptop full digital portable ultrasound scanner mini ultrasound machine
Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm Gamma: 4 gray scale γ transform function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video connector;
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;
Standard configuration:
10 inches CRT main unit;
2.5-7.5MHZ Convex array probe;
two probe sockets;
USB,VGA,video,printer ports;
Options:
Linear array probe;
Micro-Convex array probe;
Trans-vaginal array probe;
Trans-rectal probe;
Mitisubishi Video Printer;
