Help CenterER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory
US$ 2 - 2
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Brand Name:
BEALL
Place of Origin:
Jiangsu, China
Model Number:
stainless steel welding wire
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Rebar 304 316l 321 310s 430 201 202 Bright Polished Matt Pickled Black Peeled HOT SALE!!!US$ 1,000 - 1,600MOQ: 200 Tons -
Stainless Steel Divider Strip/Coil/Tape/Band for Sale With 0.05 mm Minimum ThicknessUS$ 1,000 - 3,000MOQ: 1 Ton
-
0.01mm 0.02mm 304 Stainless Steel Foil/tape/strip/bandUS$ 1,000 - 3,000MOQ: 1 Ton
-
Slit Edge J1 AOD 201 304 Stainless Steel Divider Strip PriceUS$ 1,000 - 3,000MOQ: 1 Ton
-
Aisi 201 202 304 316 307 308 309L ss Welding Electrode Aws E308-16 + Manufacturer!!!US$ 1,000 - 1,600MOQ: 200 Tons
Brand Name
BEALL
Place of Origin
Jiangsu, China
Model Number
stainless steel welding wire
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG factory
1.Easy to operate, no need to add more flux
2.Saving resources
3.Enviro
Application:
ER316/ER316L: 10Cr-12Ni-2.5Mo (SUS316) used for welding steel, as well as operating Temperature of 600~750 °C chemical, oil refining tube heat exchangers, furnace tubes Peter. Arc stability, weld appearance. Anti-oxidation temperature not less than 870 °C.
ER316LSi: Primarily used for welding of high silicon, low carbon , 18Cr - 12Ni - 2.5Mo steels.
Conform with:AWS:ER316 YB/T:H0Cr19Ni12Mo2 JIS:Y316
AWS:ER316L YB/T:H0Cr19Ni12Mo2 JIS:Y316L
AWS:ER316LSi JIS:Y316LSi
More Details:
| Wire Type | Wire Size | Spool Size | Net Weight |
| MIG Wire | φ0.8~1.6(mm) | D100mm D200mm D300mm D270mm | 1kg 5kg 15kg 20kg |
| TIG Wire | φ1.6~5.0(mm) | 1 meter | 5kg 10kg |
| chemical composition of welding wire(%) | |||||||||
| Type | Mechanical Properties or Deposited Metal | C | Si | Mn | Cr | Ni | Mo | ||
| Tensile strengthσb(Mpa) | Elongationδ5(%) | ||||||||
| ER316 | 578 | 38 | 0.050 | 0.60 | 1.78 | 19.61 | 12.50 | 2.20 | - |
| ER316L | 590 | 40 | 0.025 | 0.42 | 1.91 | 19.10 | 12.58 | 2.57 | - |
| ER316LSi | 562 | 31 | 0.021 | 0.77 | 1.95 | 19.20 | 13.45 | 2.58 | - |
| Please be noted | Welding position | ||
| Wire shall be stocked in dry.open the packs just when welding to avoid the wire rust. Before welding please clean out the oil,rust,water etc from the work parts | |||

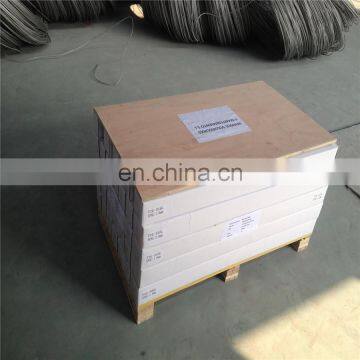

Packaging & Shipping
5kg/box 1 ton/ pallet
15kgs/spool, 72cartons/pallet
Our Services
1. Free sample is available.
2. The third party inspection is accepted.
3. Bottom price for customers.
4. Best quality is provided.
Company Information
Beall Industry Group is the leading manufacturer and supplier of stainless steel,duplex and super nickle alloy materials with 20 years experience of suplying to a great variety of end users from different fields.
