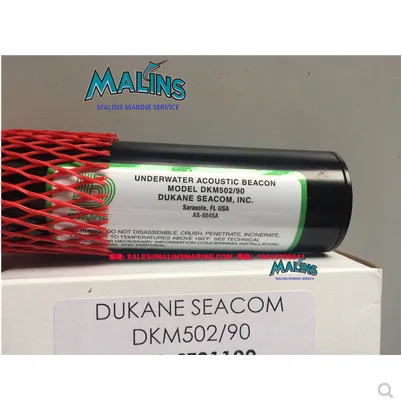

Help CenterDUKANE DKM-502 Underwater Acoustic Beacon
Related Products
With Over 50+ years of crafting experience of underwater acoustic beacons the DKM502 is the acoustic locating beacons for maritime VDR & other application. DKM502,will assist in location of VDR & S-VDR capsules up to 6096 meters or 20,000 ft. depth underwater at sea.
The DKM502 will provide a minimum of 30 days of uninterrupted operation once activated, complying with Minimum standard specification SAE8045, IEC61996-1 & IEC-61996-2.
Physical Characteristics
· Watertight aluminum case (1.3”dia, 3.92” length (less mount)).
· Capable of operation at depths of up to 20,000 feet(6096 m)
· Detectable at a range of 2000 to 4000yards (1800 to 3600 meters) based on environmental factors.
· Sustained pressure up to 8700 psi.
· Dual water switch actuation initiates beacon operation upon immersion in either fresh or salt water.
· The battery used to power the DKM502 will sustain beacon operation for a minimum of 30 days at an acoustic output of 160 dB operating frequency is37.5 kHz.
Standard Features
· Corrosion resistant hardware and epoxy.
· Chemical coating systems MIL-A-8625F.
· The beacon will operate for a minimum of 30 days after being immersed in the water. The beacon will withstand depths to 20,000 feet (6096 meters). It can be detected at a range of 2000 to 4000 yards (1800 to 3600 meters) with DSL-375 series of Locator.
· ATS-270M Portable Test Set shall be used to perform operational tests on the beacon.
· DKM502 beacon is compatible with Novega PT-9.
