 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig

Shandong Beijun Heavy Industry Co., Ltd.
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig thumbnail-1
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig thumbnail-2
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig thumbnail-3
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig thumbnail-4
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig thumbnail-5
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig photo-1
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig photo-2
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig photo-3

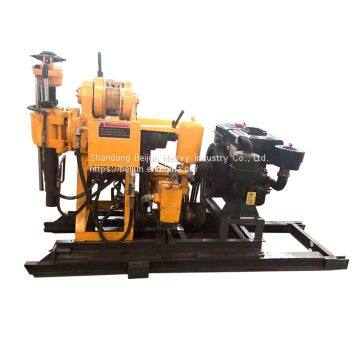

 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig photo-4
 Core Drilling Rig Machine,Mine Drilling Rig,Water Well Drilling Rig photo-5
US$ 5000 - 7000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BJ
Place of Origin:
China
Model Number:
HZ-130YY
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BJ
Place of Origin China
Model Number HZ-130YY
Type Core Drilling Rig
After-sales Service Provided No overseas service provided
Warranty 1 year
Weight 750kg
Dimension(L*W*H) 2400*800*1400mm
Power Type Diesel
Voltage 220v
Usage Water Well
Condition New
Power(W) 13.2kw
Product Description
Details Images
Specification
Technical Parameter Of Hydraulic Drilling Rig





Machine Specification



model



BJ130

Drilling Depth(m)
190

Open Hole Diameter(mm) Soil/Rock
220

End Diameter (mm)
75

Drill Rod Diameter(mm)
42-60

Drill Angle(°)
90-75

Matching Engine Power(KW)
13.2

Weight Without Engine(KG)
620/750

Dimension L*W*H (mm)
2400*800*1400

Spindle
Speed(r/min)
142/285/570

Stroke(mm)
450


Winch
Single Rope Lift Force(kg)
2000

Single Rope Lift Speed(m/s)
0.41-1.64

Rope Diameter(mm)
9.3

Rope Capacity(m)
27

Drill Mast
Rated Load(Ton)
18

Effective Height(m)
6.5

Mud Pump
Flow(L/Min)
95

Max.Pressure(Mpa)
1.2

Back and Forth(times/min)
93

Inlet Hose Diameter(mm)
51

Outlet Hose Diameter(mm)
32
