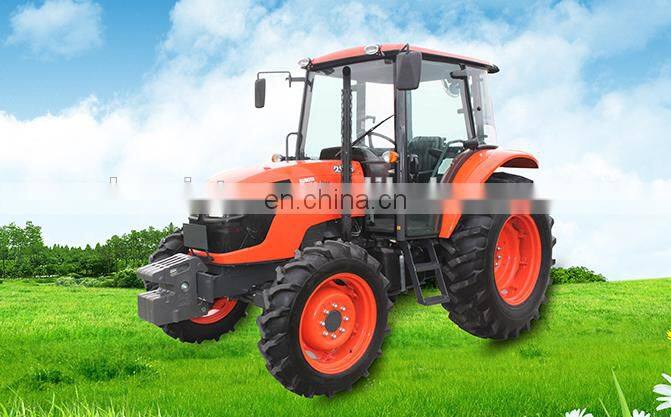

HIGH QUALITY TRACTOR 4 WHEEL DRIVE

HIGH QUALITY TRACTOR 4 WHEEL DRIVE thumbnail-1
HIGH QUALITY TRACTOR 4 WHEEL DRIVE photo-1
US$ 25,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KUBOTA
Place of Origin:
China
Model Number:
KUBOTA-M704K
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KUBOTA
Place of Origin China
Model Number KUBOTA-M704K
Type Other
After-sales Service Provided No overseas service provided
Certificate Other
Usage Farm Tractor
Drive Type Other
Condition New
By wheel 4WD

HIGH QUALITY TRACTOR 4 WHEEL DRIVE

Product Description



Product Model Unit KUBOTA-M704K KUBOTA-M704KQ
Machine Structure type    4 wheel drive (4 × 4) 4 wheel drive (4 × 4)
  Dimensions Length (front counterweight)  mm 4110 4110
    Width (with post weight) mm 1950 1950
    Height Safety frame type mm 2530 -
      Cab type mm - 2560
  Tread Front wheel  mm 1520 1520
    Rear wheel mm 1520,1620,1720 1520,1620,1720
  Wheelbase mm 2150 2150

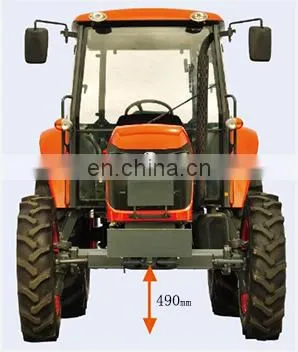

  Minimum ground clearance mm  490 (bottom of front axle)  490 (bottom of front axle)
  Minimum use of mass kg 2400 2620
  Turn round radius No side brake m 4.2 4.2
    Unilateral brake m 3.3 3.3
Number of stalls   8F + 8R (2 × 4) 8F + 8R (2 × 4)
Power output shaft power kW 45.6 45.6
Engine Model   V3800-DI-T-ET19 V3800-DI-T-ET19
  Type   Vertical water cooled 4 - cylinder turbocharged diesel engine Vertical water cooled 4 - cylinder turbocharged diesel engine
  Number of cylinders   4 4
  Calibration speed  r/min 2500 2500
  Calibration power (12h) kW 53.6 53.6
  Battery specifications   12V,RC:160min,CCA 900A 12V,RC:160min,CCA 900A
  Fuel tank volume L 85 85
Walking steering brake system Tire Specifications Front Wheel    9.5-24 9.5-24
Rear wheel   16.9-30 16.9-30
Steering type   Independent oil, full hydraulic front wheel steering Independent oil, full hydraulic front wheel steering
Driving brakes   Mechanical, wet, disc type Mechanical, wet, disc type
Parking brake   Pedal lock type, handle type Pedal lock type, handle type
Transmission system Clutch type   Single acting, dry, single plate Single acting, dry, single plate
Working equipment Suspension Type   Ⅱ Ⅱ
  The maximum lifting force at 610 mm on the frame Kn 12.9 12.9
  Traction device type   Bracket type (height adjustable) Bracket type (height adjustable)
Power output Type   Independence, 8 splines Independence, 8 splines
  Speed r / min 540/720 540/720
Option Hydraulic output valve   Group 2 Group 2
  High flower of paddy field   8.3-24 / 14.9-30 8.3-24 / 14.9-30
  Awning   0 -



HIGH QUALITY TRACTOR 4 WHEEL DRIVEHIGH QUALITY TRACTOR 4 WHEEL DRIVEHIGH QUALITY TRACTOR 4 WHEEL DRIVE



Packaging & shipping:

Packing: Close package to make shipment safer and suitable for import and export.

Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
             2.Ship by Air express to airport
             3.Ship by sea

Price item: FOB Shanghai

Payment Item: T/T in advance, Western Union

Company information:



    Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     1, all independent and non independent refrigeration unit sales, installation, training and customer service service  for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;

     2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;

     5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;

     6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;

     7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;

     8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;



     9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
