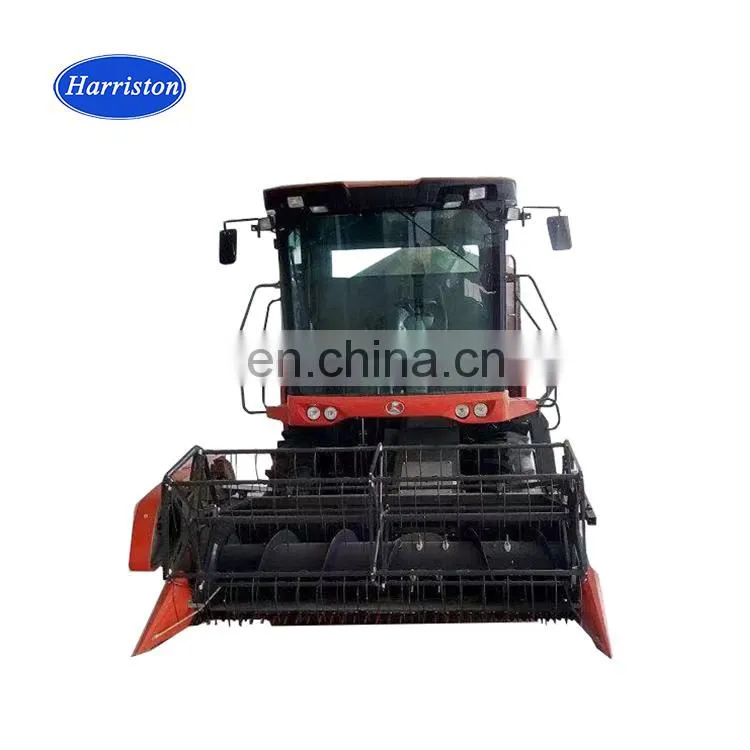

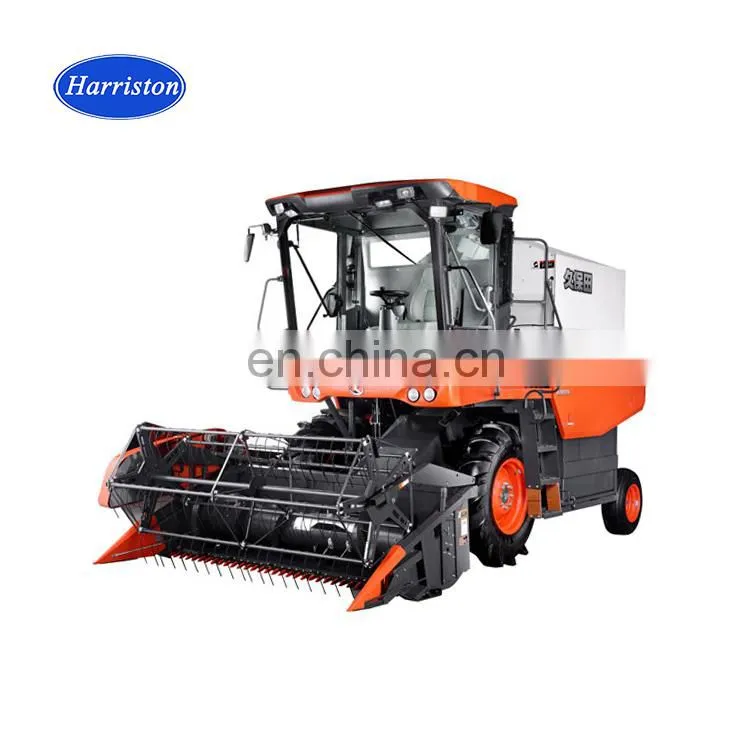

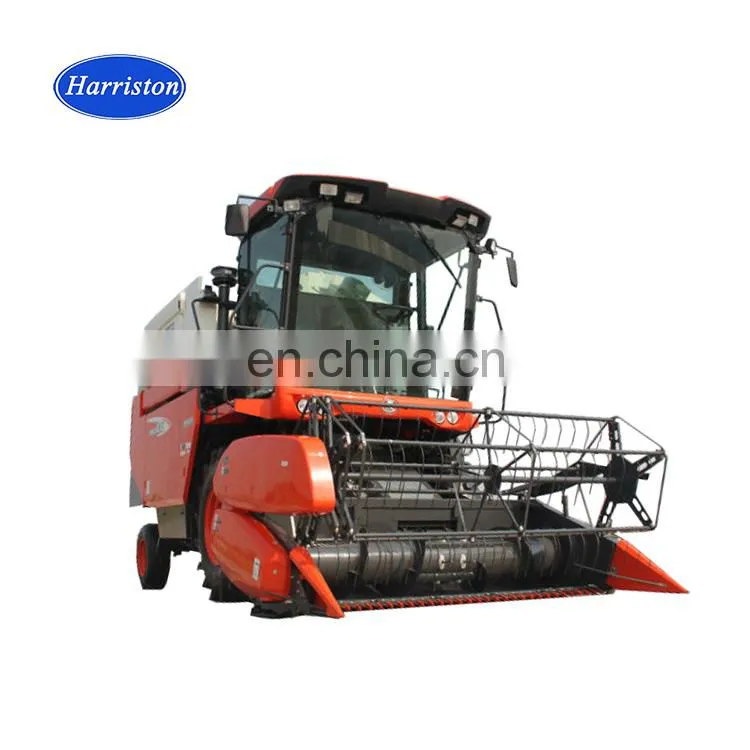

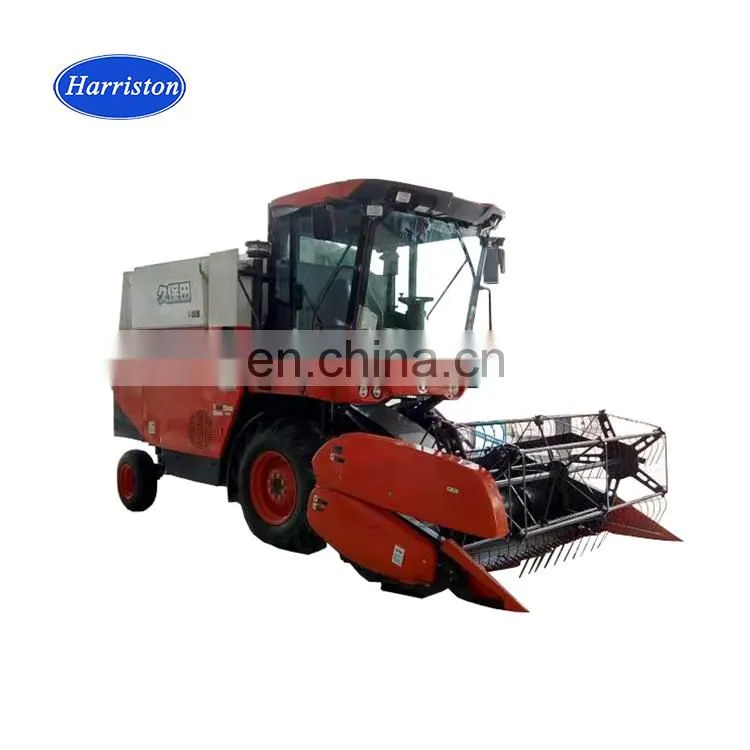

Help CenterKubota 4LZ-5(PRO100) Wheat Harvester With 100 Horsepower
Related Products
-
LC-52 Crawler Rubber V Belt Kubota Combine Harvester Spare PartsUS$ 8.6 - 8.6MOQ: 1000 Pieces -
5T124-69270/LB127 Crawler Rubber BANDO V BELT Kubota Combine Harvester Spare PartsUS$ 13.6 - 13.6MOQ: 1000 Pieces
-
5T124-64570 Crawler Rubber KUBOTA V-BELTUS$ 6 - 6MOQ: 1000 Pieces
-
LB123 Crawler Rubber Kubota V BELT for Kubota Combine Harvester Spare PartsUS$ 12 - 12MOQ: 1000 Pieces
-
5T124-65860 Crawler Rubber KUBOTA V BELT LC107 Combine Harvester Spare PartsUS$ 18.5 - 18.5MOQ: 1000 Pieces
|
|
|
|
| MODEL | 4LZ-5 (PRO100) | |||
| Category | big tank | |||
| Structure | Tire self propelled full-feeding | |||
| Size | length(mm)( in working) | 5900 | ||
| width(mm)(in working) | 2850 | |||
| l height(mm)(in working) | 3350 | |||
| Weight (kg) | 4510 | |||
| Engine | Model | V3800-DI-T-ET13 | ||
| Type | vertical 4 cylinder 4 stroke water-cooled turbo diesel engine | |||
| Total displacement (L[cc]) | 3.769[2434] | |||
| Rated output(kw) | 72.9 | |||
| Rated speed(r/min) | 2600 | |||
| Fuel | high quality diesel oil | |||
| Fuel tank capacity(L) | 250 | |||
| Travel unit | Driving wheel (front wheel) | wheel track (mm) | 1880 | |
| Steering wheel (rear wheel) | wheel track (mm) | 1935 | ||
| Transmission mode | mechanical timing+ hydraulic stepless speed changes [HMT] | |||
| Theoretical operation speed(km/h) | forward | 0-10.8(working),0-25.56(walking) | ||
| backward | 0-3.24(working),0-7.2(walking) | |||
| Harvest unit | The smallest stubble height(mm) | 40 | ||
| Feeding in speed(kg/s) | 5 | |||
| Lodging adapation (degree) | Shun-cut:< 85°, Against the cut:< 70° | |||
| Threshing cylinder | Diameter × width(mm) | Φ620 × 2210 | ||
| Rotational speed(r/min) | wheat:825, rice:730 | |||
| Grain discharge unit | Grain Tank Capacity (L) | 2400 | ||
| Unloading | Type | Hydraulic dump tilting | ||
| Direction | right side of the body | |||
| Height of discharger(mm) | ||||
| Warning lights and equipments | Vertical transmission filler and then plug screw rob cereal | o | ||
| Sets valley box filled with | o | |||
| Water temprature | o | |||
| Battery charging | o | |||
| Engine oil pressure | o | |||
| Suitable crops | rice / wheat | |||
| Operational efficiency hm2/h) | wheat:0.5-0.8 rice:0.3-0.5(in up-right grain and dry land) | |||
|
|
|
|
|
|
Q1. What is your terms of packing?
A: Generally, we pack our goods in our W brand box ..
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, most of items we keep stock for all season . it will take 7to 10 days after receiving your advance payment. .if we didn’t have stock ,The delivery time depends on the items and the quantity of your order. Normaly 30 to 60days .
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock;
2.Assure best quality with our complete inspection system before shipment
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet;
4.Provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
