Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > KUBOTA 4LZ-5(PRO1108) Harvester With Air-condition Cabin

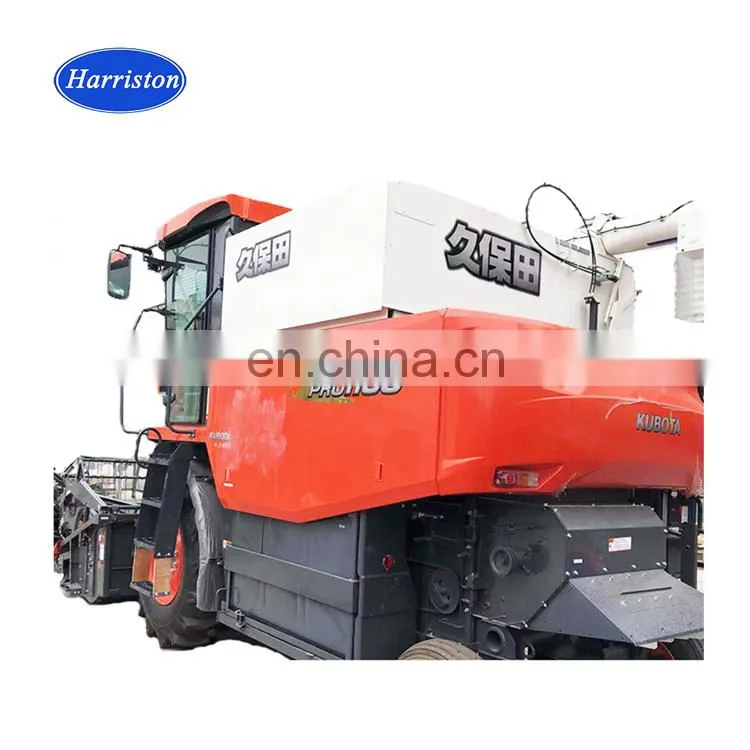

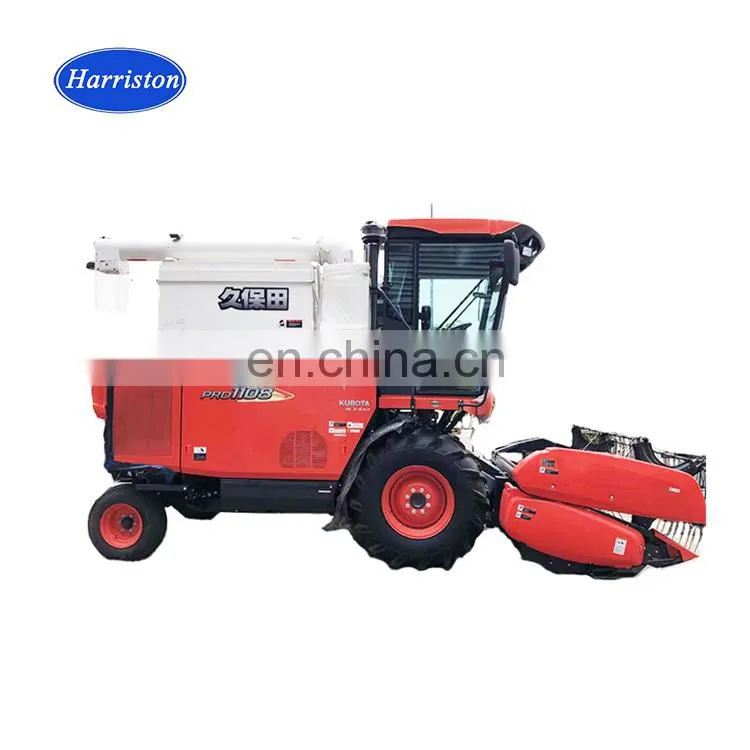

KUBOTA 4LZ-5(PRO1108) Harvester With Air-condition Cabin
US$ 25,000 - 25,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
KUBOTA
Place of Origin:
Jiangsu, China
Model Number:
PRO1108
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KUBOTA PRO318Q( 4LZ-1.5A8) Harvester With Water-cooled 3-Cylinder Turbocharged Vertical DieselUS$ 10,000 - 10,000MOQ: 1 Piece -
3C001-48250 HARRISTON Rubber Oil SealUS$ 2.5 - 3MOQ: 100 Pieces
-
Kubota 5T051-55350 Harvester Iron PulleyUS$ 7.5 - 8MOQ: 100 Pieces
-
Kubota Harvester Iron PulleyUS$ 13.5 - 15MOQ: 100 Pieces
-
Kubota DC60 DC70 Iron Belt Harvester PulleyUS$ 7.5 - 8MOQ: 100 Pieces
Brand Name
KUBOTA
Place of Origin
Jiangsu, China
Model Number
PRO1108
Type
Combine Harvester
Warranty
1 Year
Weight
5210
Dimension(L*W*H)
5971x2900x3350mm
Certificate
CE
Usage
Grain Harvester
Drive Type
Gear Drive
Condition
New
| |
| |
| Project | Specification | ||
| Product number | 4LZ-5(PRO1108) | ||
| Classification | Air-condition cabin | ||
| Dimensions | Length (mm) (transport status / working status) | 5900/5971 | |
| Width (mm) (transport status / working status) | 2900/2900 | ||
| Height (mm) (transport status / working status) | 3350/3350 | ||
| Structure quality (kg) / quality of use (kg) | 4785/5210 | ||
| Matching engine | Model (China third stage) | V3800-DI-TI-ET08 | |
| Structure type | Vertical water cooled 4 - cylinder turbocharged diesel engine | ||
| Total Displacement (L) | 3.769 | ||
| Calibration power (kW) | 80.1 | ||
| Calibration speed (r / min) | 2600 | ||
| Fuel | High quality diesel (0 #) | ||
| Fuel tank capacity (L) | 250 | ||
| Walking part | Tire | Drive wheel (front wheel) track | 1880mm |
| Guide wheel (rear wheel) track | 1890mm | ||
| Wheelbase | 2855mm | ||
| Gearbox type | Mechanical shifting + hydraulic stepless shifting (HMT) | ||
| Variable speed series | Stepless forward stepless stepless (second gear speed 2 gears) | ||
| Minimum ground clearance (mm) | 290 | ||
| Cutting table | Cutting table width (mm) | 2300 | |
| Adapt to crops | Rice, wheat | ||
| Grain processing department | Way of food | Single-direction automatic unloading of grain (hydraulic tipping bucket + unloading grain cylinder) | |
| Granary capacity (L) | 2400 | ||
| Unloading grain | Unloading grain unloading height range (mm) (working state) | 2400 | |
| Unloading mouth out of the distance range (mm) (working state) | 2150 | ||
| Alarm system | Water temperature, charge, oil, gluten full, 2 snuff plug, reverse fan | ||
| Operating hours productivity (hm² / h) | wheat: 0.5 ~ 0.8 rice: 0.3 ~ 0.5 | ||
our product
hot seals
| | |
| | |
Packaging
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in our W brand box ..
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, most of items we keep stock for all season . it will take 7to 10 days after receiving your advance payment. .if we didn’t have stock ,The delivery time depends on the items and the quantity of your order. Normaly 30 to 60days .
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock;
2.Assure best quality with our complete inspection system before shipment
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet;
4.Provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
