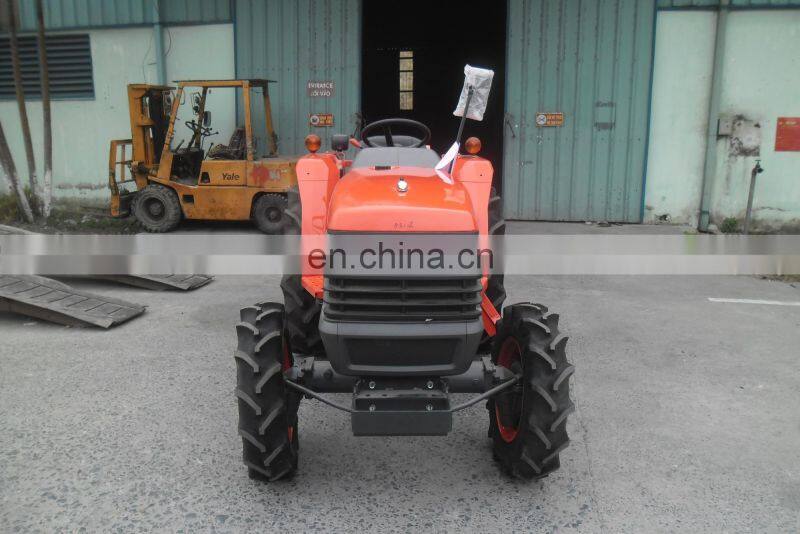

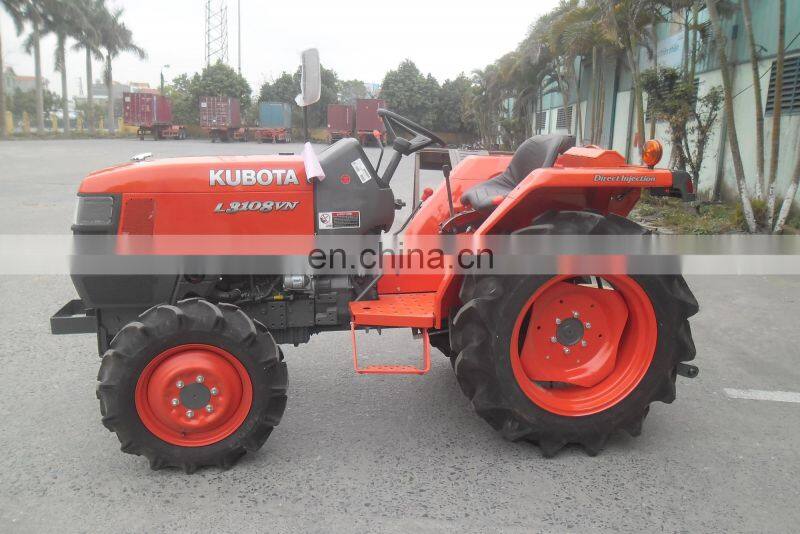

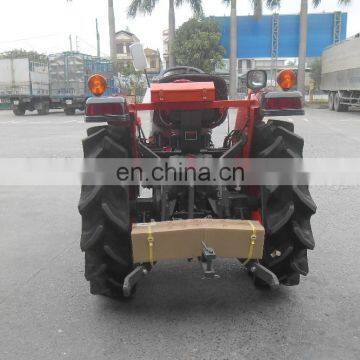

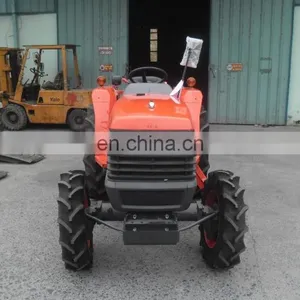

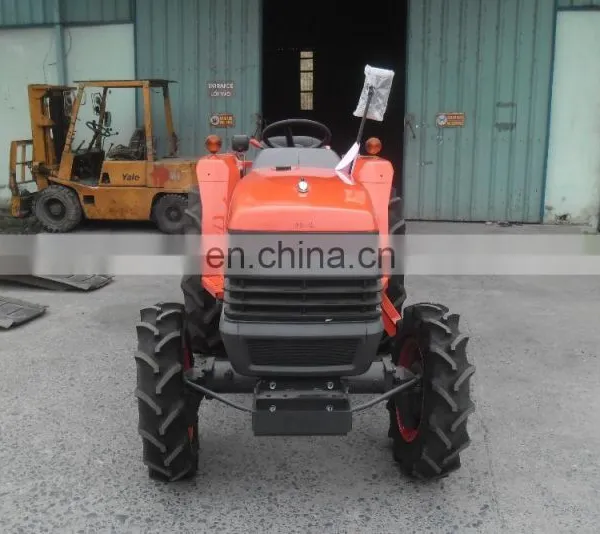

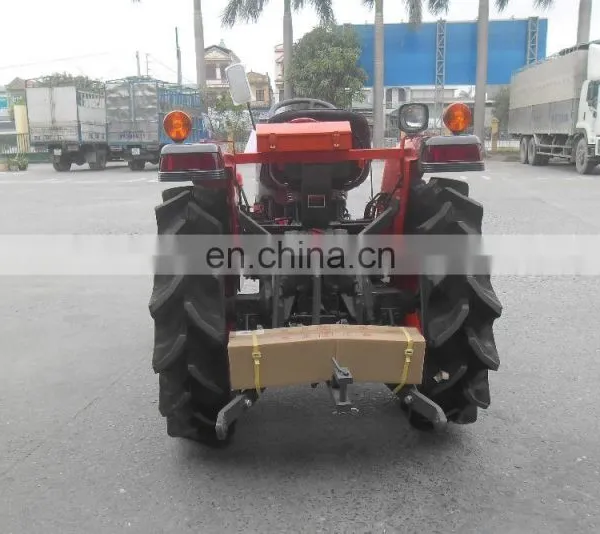

High Quality KUBOTA L3108 Small Tractor
| Model | L3108 | |||
| Engine | Type | Kubota D1703-M-DI | ||
| No. of cylinders | 3 | |||
| Total displacement ( cc ) | 1647 | |||
| Engine gross power ( HP ) | 31.6@2700 rpm | |||
| Engine net power ( HP ) | 30.2@2700 rpm | |||
| PTO power ( HP ) | 26.8@2700 rpm | |||
| Fuel tank capacity ( l ) | 34 | |||
| Dimensions | Overall length (without 3P) | 2920 | ||
| Overall width ( mm) | 1305 | |||
| Overall height (Top of steering wheel) ( mm) | 1500 | |||
| Wheelbase ( mm) | 1610 | |||
| Min. ground clearance ( mm) | 340 | |||
| Tread | Front ( mm) | 1095 | ||
| Rear ( mm) | 1020 | |||
| Weight(with mass) ( kg ) | 1050 | |||
| Clutch | Dry type Single stage | |||
| Traveling System | Tires | Front | 7 – 16 | |
| Rear | 11.2 – 24 | |||
| Steering | Integral type power steering | |||
| Transmission | Gear shift, 8 forward and 4 reverse | |||
| Brake | Wet disk type | |||
| Min. turning radius (with brake) ( m ) | 2.5 | |||
| Traveling speed ( km/h ) | 21.1 | |||
| Hydraulic | Hydraulic control system | Position control | ||
| Pump capacity ( l/min ) | 23.9 | |||
| Three point hitch | Category I | |||
| Max. lift force | At lift points ( kg ) | 906 | ||
| 24 in. behind ( kg ) | 651 | |||
| PTO | PTO (Engine speed) ( rpm ) | 540 (2,430), 750 (2,596) | ||
We specialized in kubota spare parts, kubota machine ( kubota harvester, kubota transplanter,
kubota tractor).
MACHINE MODEL: 488, 588I, 688Q, 788, 888, DC60, DC68G, DC70, DC95, 704K, 854 ,954,
1004, NSPU68C, NSPU88C, SPW48/68C
KUBOTA machine and Spare Parts are popular in Philippines, Tailand, Vietnam and Sri Lanka
and other countries. So glad to talk with you about Different Kubota machines and Spare Parts.
Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:
1, all independent and non independent refrigeration unit sales, installation, training and customer service service for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;
2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;
4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;
5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;
6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;
7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;
8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;
9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
