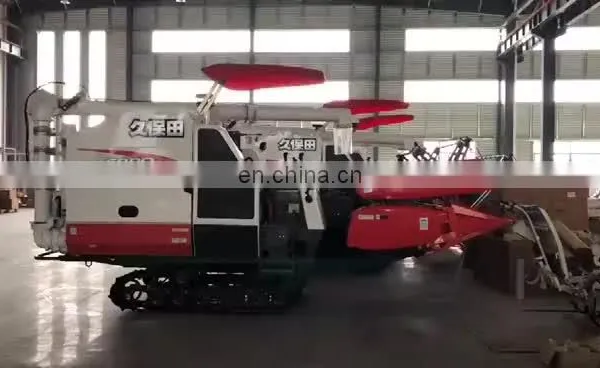

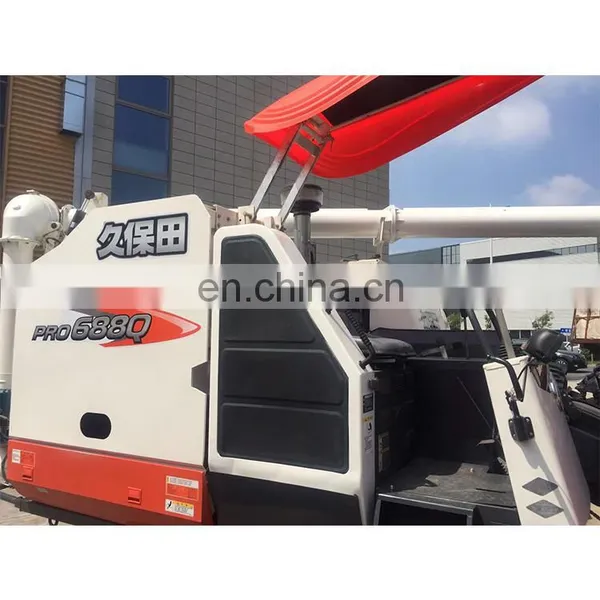

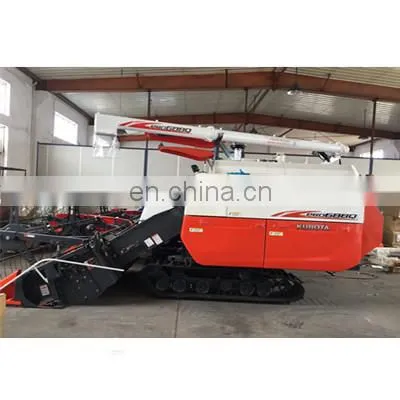

Help CenterHigh Quality New and Used Full Feed Kubota Brand PRO688Q Combine Harvester Usage Rice Wheat
Related Products
-
High Quality Kubota New PRO988Q-Q Plus Combine Harvester For Rice and WheatUS$ 28,000 - 33,000MOQ: 3 Sets -
High Quality Kubota Tractors B2440 For SaleUS$ 20,000 - 23,000MOQ: 10 Pieces
-
High Quality and Best Price Kubota Spare Parts STARTER 4TNV88US$ 5 - 10MOQ: 10 Pieces
-
High Quality Uesed Second-hand KUBOTA Combine Harvester Machine 688QUS$ 8,500 - 8,500MOQ: 3 Pieces
-
High Quality Kubota Spare Parts BUSHUS$ 5 - 15MOQ: 1 Piece
| Project | Specification | |||
| Product number | 4LZ-2.5(PRO688Q) | |||
| Classification | Big tank | |||
| Dimensions | Length (mm) (transport status / working status) | 4950/5010 | ||
| Width (mm) (transport status / working status) | 2440/2650 | |||
| Height (mm) (transport status / working status) | 2800/2815 | |||
| Structure quality (kg) / quality of use (kg) | 2790/2905 | |||
| Matching engine | Model (China second stage) | V2403-M-DI-T-ES04 | ||
| Structure type | Vertical water cooled 4 - cylinder turbocharged diesel engine | |||
| Total Displacement (L) | 2.434 | |||
| Calibration power (kW) | 49.2 | |||
| Calibration speed (r / min) | 2700 | |||
| Fuel | High quality diesel (0 #) | |||
| Fuel tank capacity (L) | 60 | |||
| Walking part | Crawler | Grounding length(mm) | 1680 | |
| Gauge(mm) | 1150 | |||
| Specifications [pitch (mm) × section (section) × width (mm)] | 90×51×450 | |||
| Ground pressure(kPa) | 18.1 | |||
| Minimum ground clearance (mm) | 275 | |||
| Gearbox type | Mechanical speed change + hydraulic stepless speed change (HST) | |||
| Variable speed series | Forward stepless·Back stealth Vice shift of the three gears |
|||
| Cutting table | Cutting table width (mm) | 2000 | ||
| Minimum cutting height (mm) | 40 (cutter tip) | |||
| Lodging adaptability | Cutting: below 85 degrees· Reverse cutting: below 70 degrees | |||
| Threshing part | Threshing method | Sprue axial flow | ||
| Threshing drum | Size(mm)(outer diameter×length) | Φ620×1790 | ||
| Speed(r/min) | 560 | |||
| Grain processing department | Capacity (L) | 1000 | ||
| Collecting box | Grain intake (unit) | - | ||
| Unloading grain | Dump truck lift range (degrees) | 77 manual operation /80 - hydraulic operation | ||
| Unloading grain unloading height range (mm) (working state) | 650 ~ 2000 (unloading grain manual type) 540 ~ 2240 (unloading cylinder hydraulic type) |
|||
| Unloading mouth out of the distance range (mm) (working state) | 950 to 1600 (manual unloading tube) 990 ~ 1840 (unloading cylinder hydraulic type) |
|||
| Adapt to crops | Rice, wheat | |||
| Operating hours productivity (hm² / h) | 0.2 to 0.4 (upright dry crop) | |||
|
|
|
|
|
|
Q1. What is your terms of packing?
A: Generally, we pack our goods in our W brand box ..
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, most of items we keep stock for all season . it will take 7to 10 days after receiving your advance payment. .if we didn’t have stock ,The delivery time depends on the items and the quantity of your order. Normaly 30 to 60days .
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock;
2.Assure best quality with our complete inspection system before shipment
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet;
4.Provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
