Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine

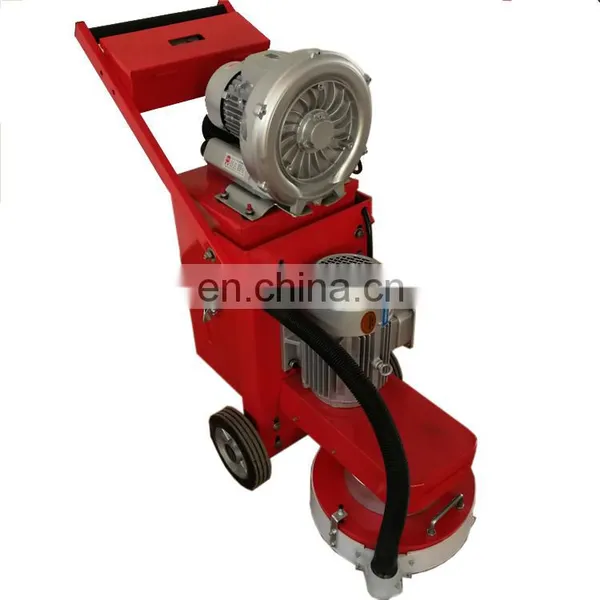

Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-1
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-2
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-3
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-4
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-5
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-6
Hand Push Concrete Floor Grinder Pavement Polishing Machine With Vacuuming Machine photo-7
US$ 760 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nuoman
Place of Origin:
Shandong, China
Model Number:
NM-350 NM-400
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Nuoman
Place of Origin Shandong, China
Model Number NM-350 NM-400
Type Surface Floor Grinder
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description

Product Application

Mainly used for grinding of larger or middle range road. It can grinding concrete surface layer and epoxy mortar layer. Equipped power outlet for vacuum cleaner and the power cord of the vacuum cleaner can be connected directly to the grinder. Avoid the need for two power lines when working. You can polish the edge of dust, it can effectively polish the concrete surface to improve the adhesion of the material and the ground, while ensuring the ground flatness.

SPECIFICATIONS FOR CONCRETE FLOOR GRINDING MACHINE
Model
350/400
Mainly engine power
3KW/4KW
Cleaner engine power
750w
Grinding width
350mm/400mm
Grinding type
Grind coarse and fine grinding
Working efficiency
2500m2/8h
Engine rotation rate
750r/min
Weight
125kg

Main Features

1. Replaceable grinding head, free allocation of consumable(diamond grinding head, removal of old epoxy grinding head)
2. Adopt separate switch control mainly engine and cleaner engine
3. Flexible, equipped vacuum cleaner, easy to operate

Detailed Images

Machine Parts

Name: ELECTRIC MOTOR

Brand: CHINA

Original: CHINA

350:3KW, Pure copper core motor
400: 4KW, Pure copper core motor

Main Features

Name:  Dust cleaning motor
Brand: CHINA
Original: CHINA

750W,high efficiency, working without dust

Machine Parts

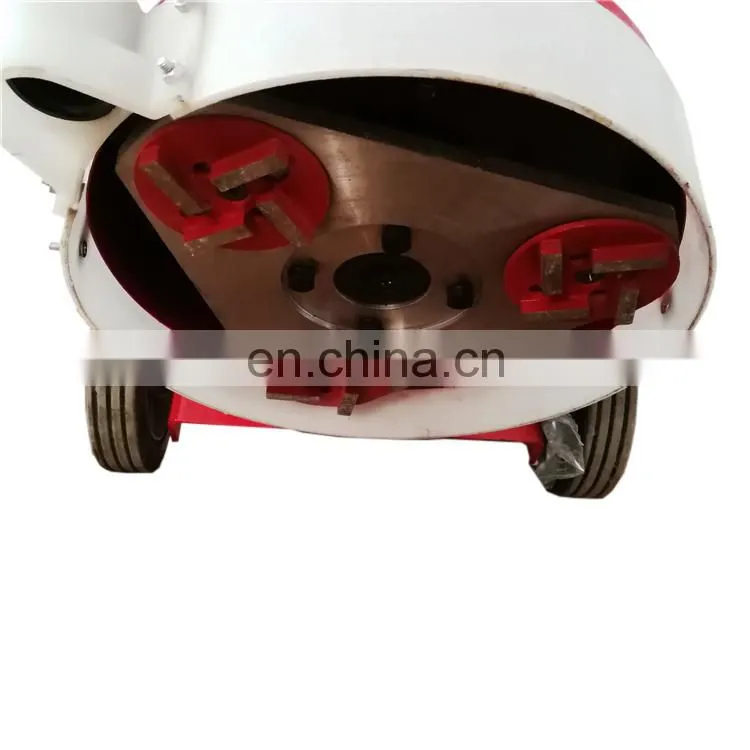

Name:  grinding head
Brand: CHINA
Original: CHINA

350:working width: 350mm, three grinding heads(can equipped coarse grinding head or fine grinding head)

Main Features

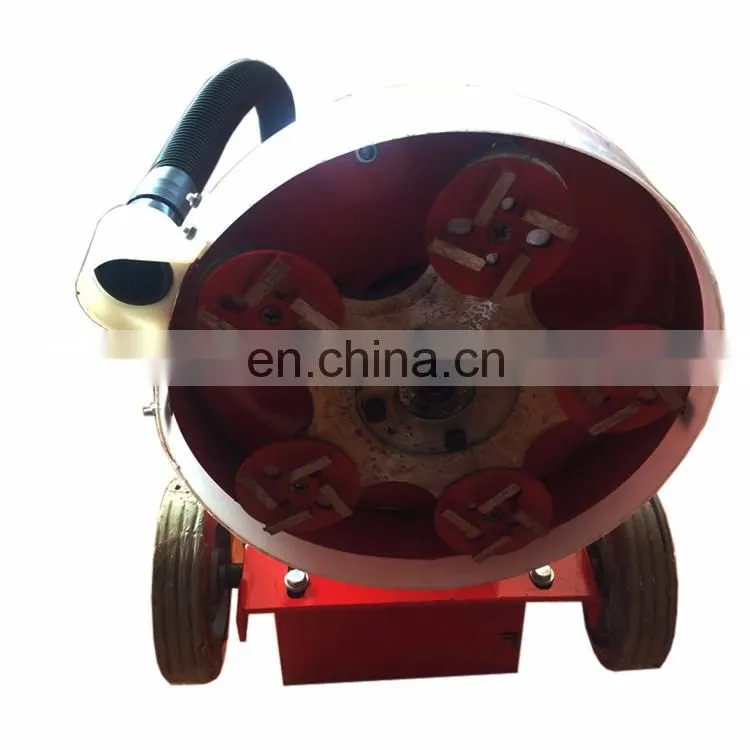

Name: GRINDING HEAD
Brand: CHINA
Original: CHINA

400:working width: 400mm, five grinding heads(can equipped coarse grinding head or fine grinding head)

Our Service

We have an independent factory, with 12 years of independent r & d production experience。
Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality。
We have a professional after sales team, 24 hours online for you to solve any product question
Support products to customize, can be tailored according to your requirements
Fast shipment, safe packing, ensure the goods are in good condition and timely delivery to you

Our Company
FAQ

1.Q: How can I make the payment?
        Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
2. Q: Can I order mix order?
         Yes.
3. Q: How long of the warranty period?
         1year
4. Q: How can i believe you and your factory?
         A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and we will welcome you enthusiasm. so we can establish good cooperation with each other.
reply you in 24 hours, if you are urgent, we can reply you soonest.
