Customized Concrete Screed Vibration Ruler With Gasoline Engine

Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-1

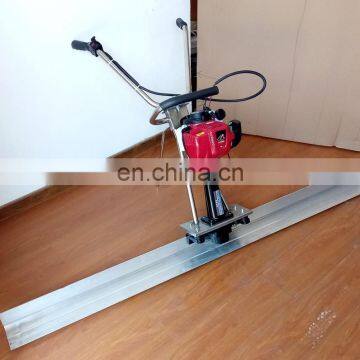

Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-2
Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-3
Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-4

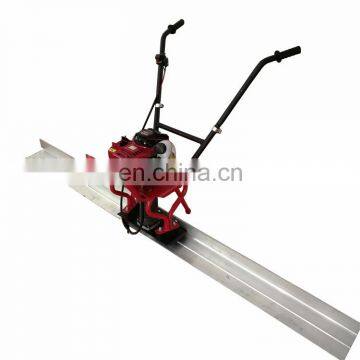

Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-5

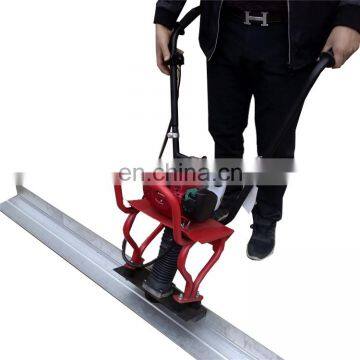

Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-6
Customized Concrete Screed Vibration Ruler With Gasoline Engine photo-7
US$ 335 - 358 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Mainly be used for scraping of concrete ground surface, improve the density of concrete, suitable for leveling hardening of the ground. High speed and efficiency, easy for take. Strickling and vibrating finish together. Operator can adjust the impact force at any moment, manual accelerator controls vibrating frequency. Concrete surface after vibration, no need to sprinkle dry cement when press polish. It reduce the construction cost and repair frequency greatly.

Model
NM-35Gasoline

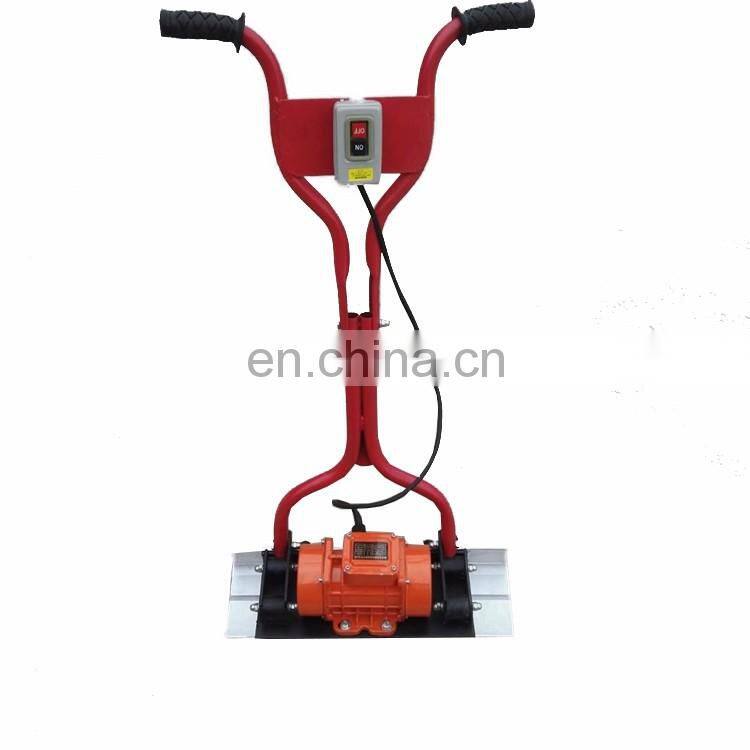

NM-35 Electric
Engine type
Air-cooled, 4-cycle, Gasoline HONDA GX35
380v/50hz/3p
Max. output kw(hp)
1.2/(1.6)
0.25/(0.33)
Machine weight
25kg
20kg
Rotation Rate
5200rpm
2800rmp
Fuel tank(liter)
0.65
/
Vibration frequency
3600 times/min
/
Ruler length
1-6m
Work Width
140/180mm
Machine size
2000*1400*900mm

Main Features

1. Light machine, the height of the handle can be adjusted according to operators.
2. Adopted scale of titanium alloy, can use long time, high smoothness
3. The length of the scale suitable for 1 to 6 meters, standard equipped with a 2 meters scale, easy to change
4. Operator can adjusts the exciting force anytime, manual throttle can control vibration frequency.
5. The phenomenon of air, drum and crack in concrete ground construction is overcome.
6. The solid concrete ground can be obtained after the operation.

Detailed Images

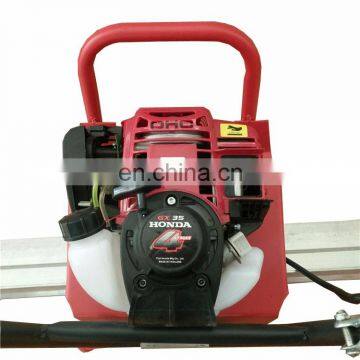

Engine

Name: ENGINE

Brand: HONDA

Equipped with Honda GX35 engine 3HP

 thickened steel plate

Name: steel plate
Brand: CHINA

Dilated and thickened steel plate, high quality

Vibration center axis


.Increase the height of the vibration center axis, the vibration force is stronger
