1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-1

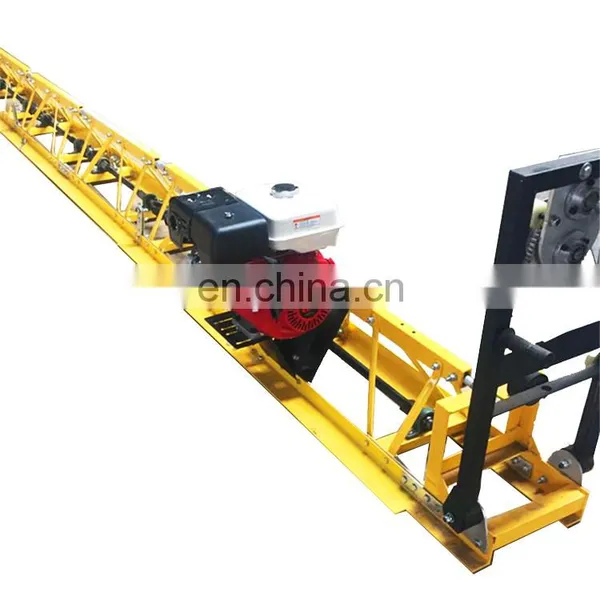

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-2

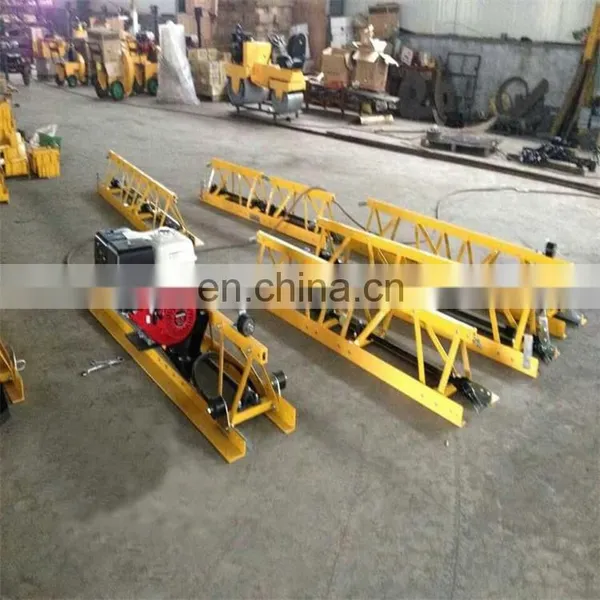

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-3

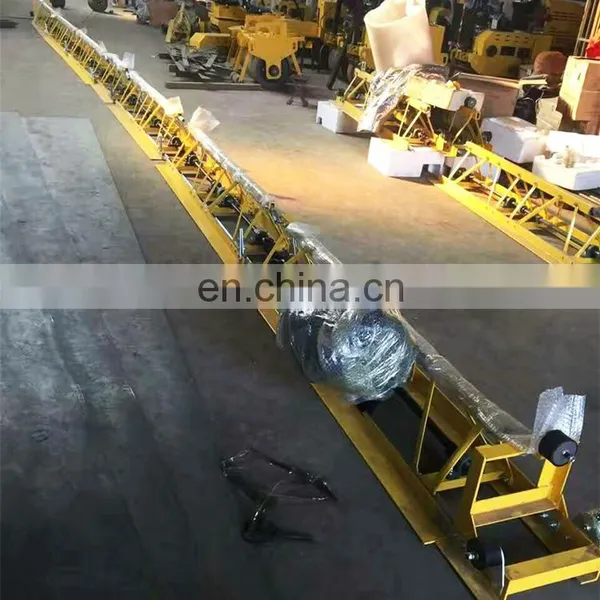

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-4

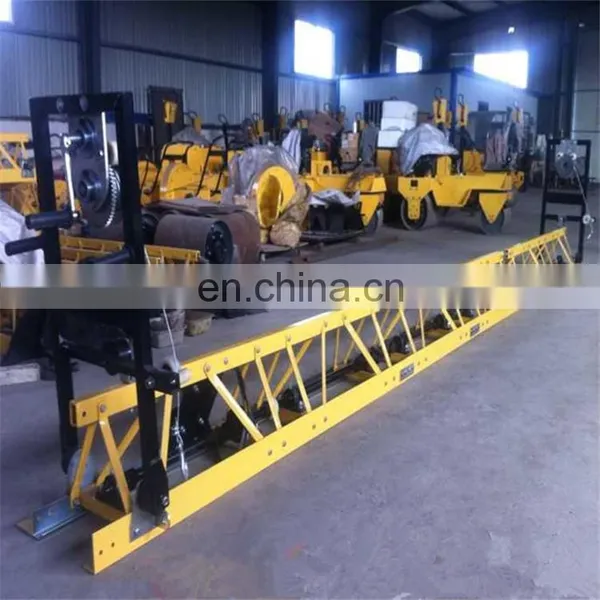

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-5

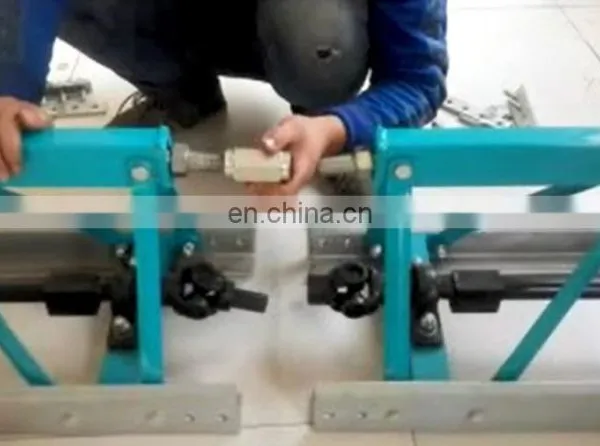

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-6

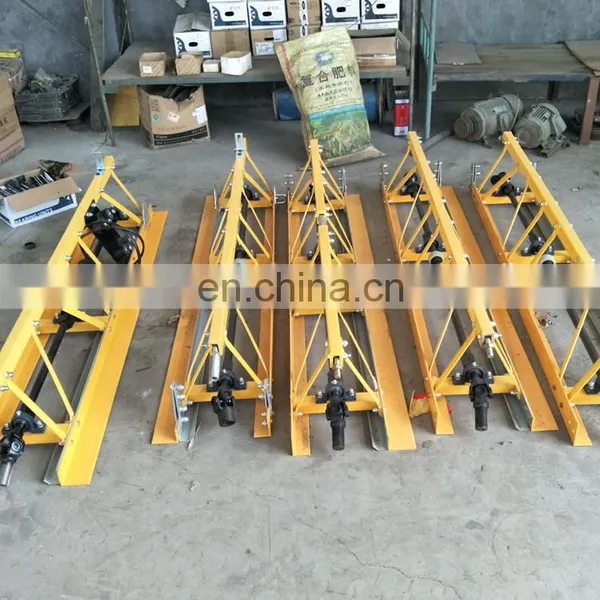

1-16m Electric/GX Gasonile Concrete Vibratory Truss Screed photo-7
US$ 500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Overseas service center available
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
After-sales Service Provided Overseas service center available
Product Description

Product Application

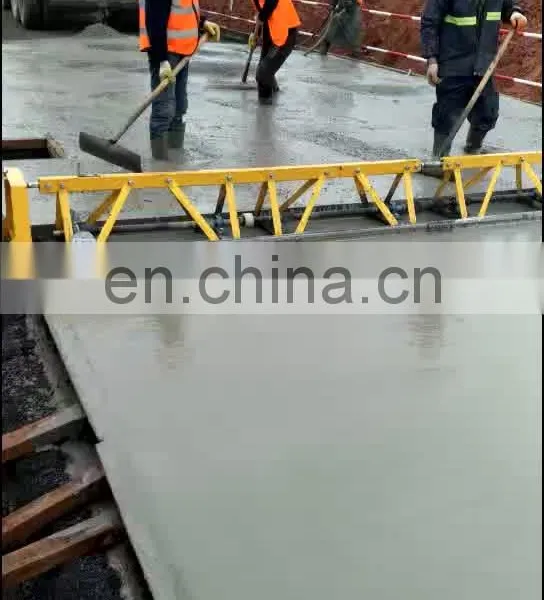

Mainly used for vibration and leveling of concrete road. Usually be used in bridge and township, frame can be assembled freely, suitable for pavement construction of different width . It is a new equipment for roads, squares and modern factory building. And it is a traditional paver upgrading products.

Model
NM55≤5500mm
NM90≤8500mm
NM130≥9000mm
Engine model
HONDA GX160
HONDA GX270
HONDA GX390
Type
Gasoline engine, air cooled, 4stroke, OHV, single cylinder
Power
5.5HP/3600rpm
9.0HP/3600rpm
13HP/3600rpm
Fuel tank volume
3.6L
6L
6.5L
Nominal amplitude
0.6mm
Walk speed
1-5m/min
Fuel consumption
313g/kwh
2m linker
405mm×2000mm
1m single linker
405mm×1000mm
Vibration frequency
70 HZ
Machine weight
37 kg/m
0.5m single linker
405mm×250mm
Attention: You need to order machines larger than 500mm in width

Main Features

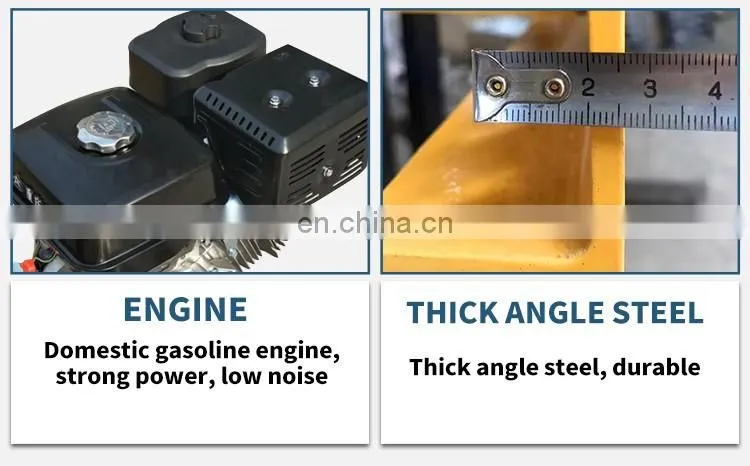

1. Can be equipped with Honda engine, domestic engine or electric engine.
2. High quality and easy to start

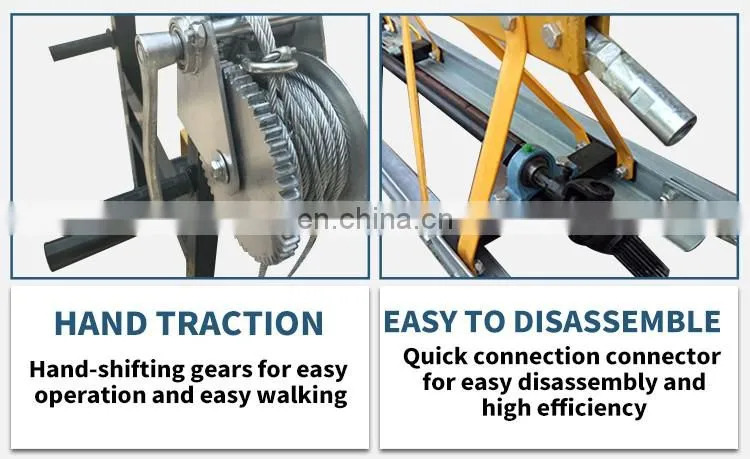

3. Detachable free combination design, frame fast docking, save time
4. The overall frame adopts cold-rolled plate, aseismatic, won't be deformation.
5. A cardan connection between a single node
6. Adopt imported bearing, maintenance free, long service life
7. Frame can arched 5 to 10 degree
8. Removable and free combination design, greatly reduces the maintenance and transportation cost.

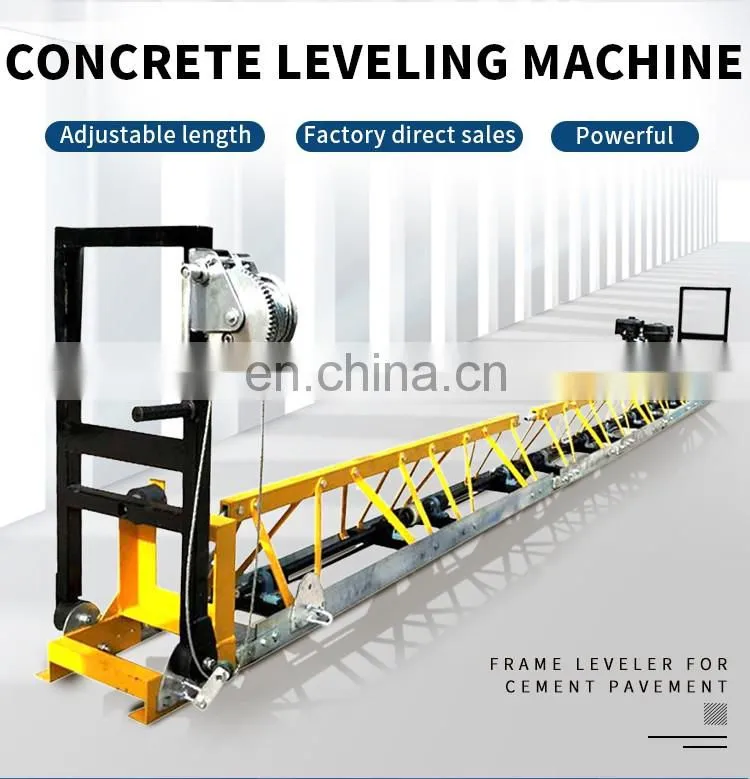

concrete paving leveling machine concrete floor leveling machine

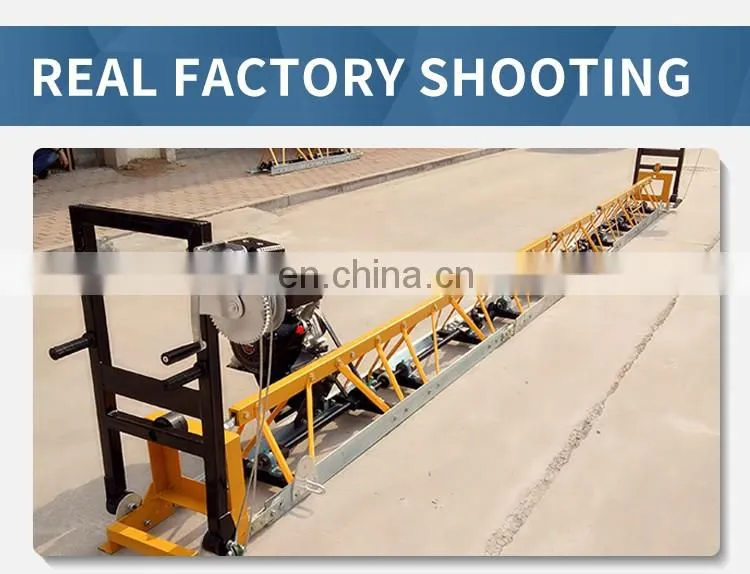

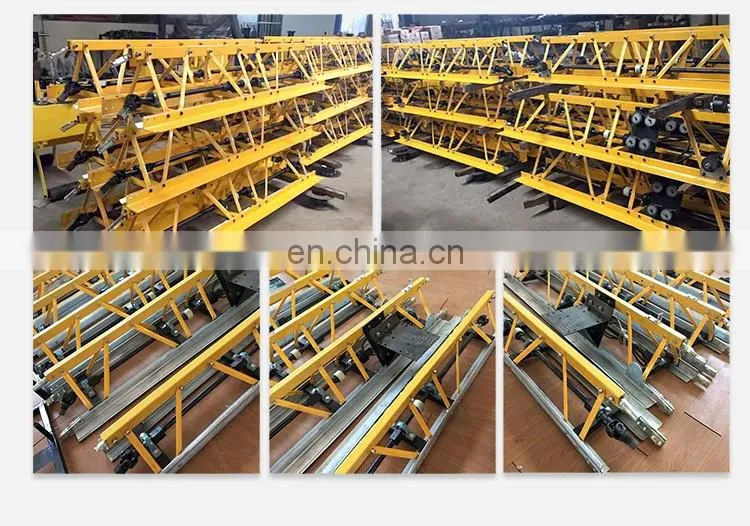

Detailed Image

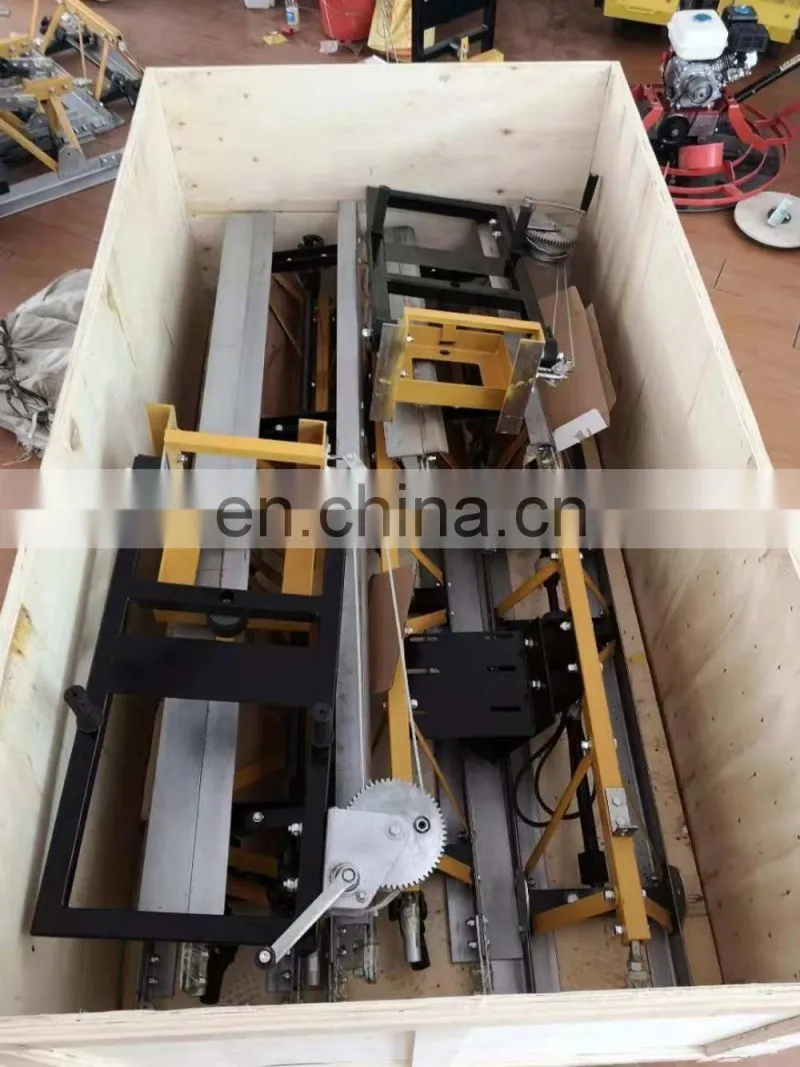

Packing & Delivery
Our Service
1,Since 2006.12 years of production and development experience
2,7*24 hour online customer service and after-sales
3,1 year quality warranty for machines main body
4,We are factory,direct factory price.
5,we have strict quality control system
6,Video guide on how to use and maintain the machines
7,Logistics real-time status tracking service
8,Support 7 days refund money.
9,Fast delivery  concrete paving leveling machine concrete floor leveling machine

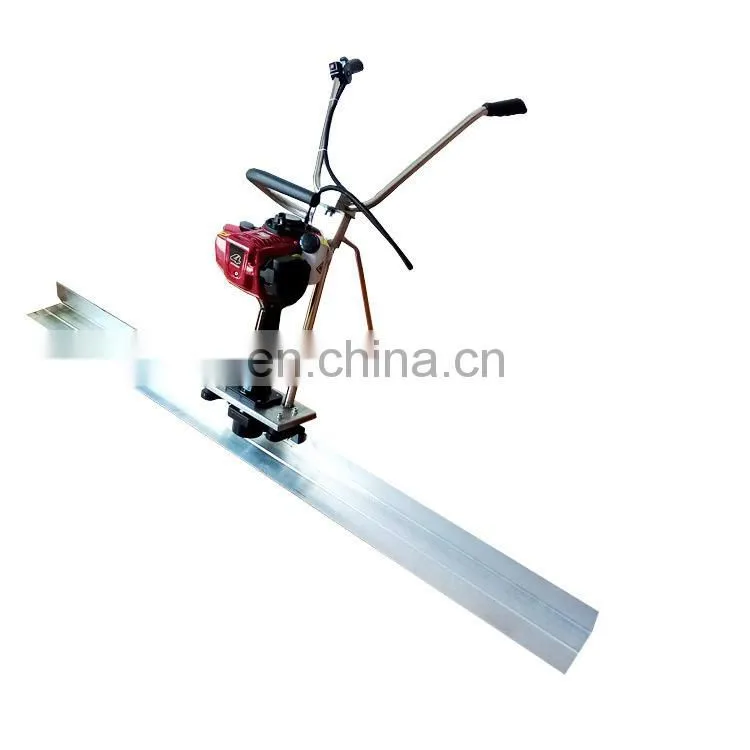

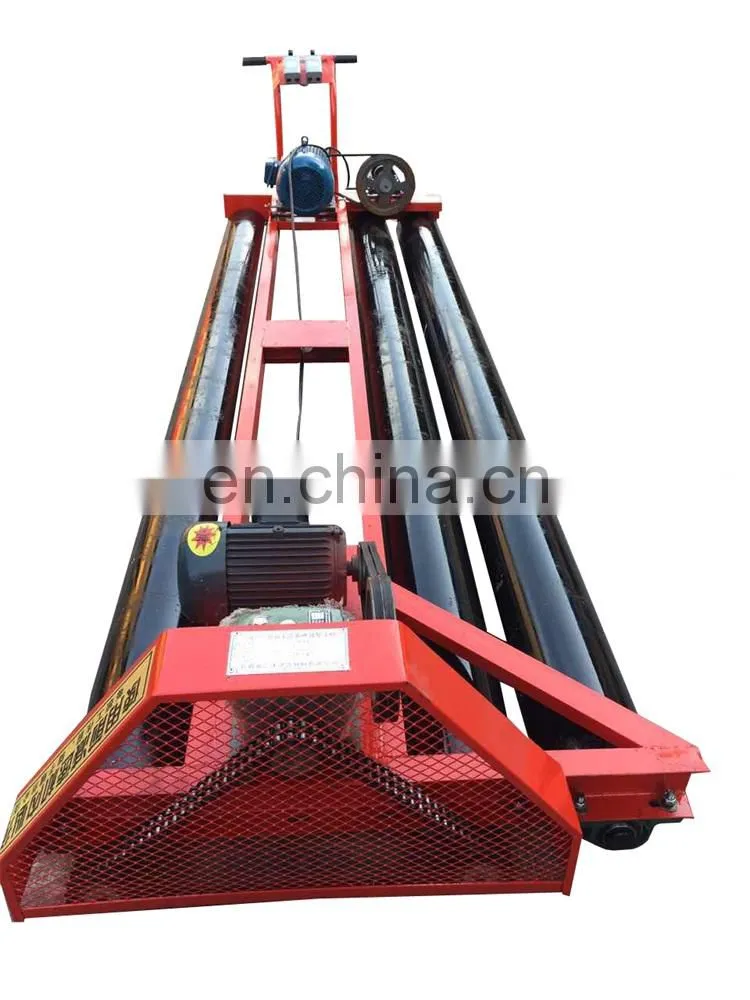

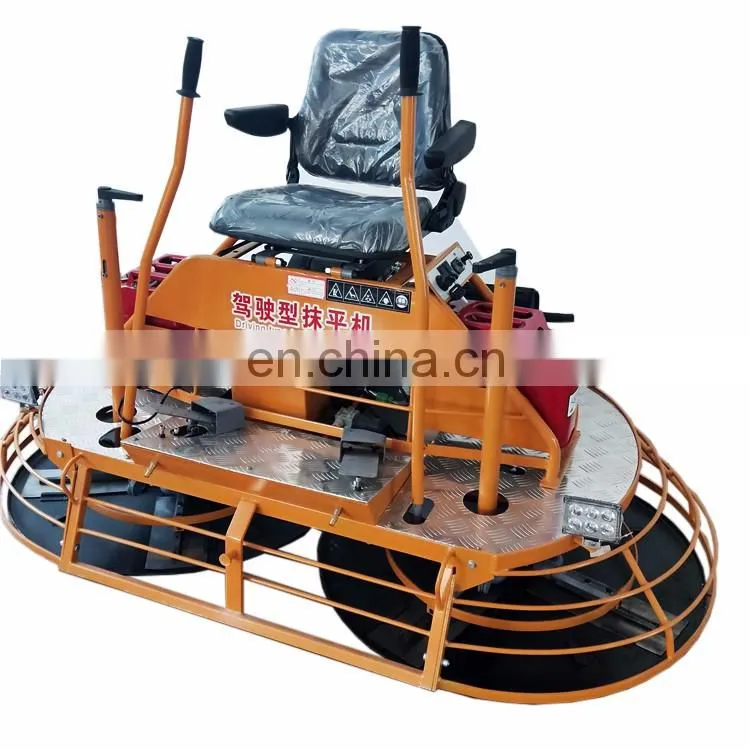

Our others products
