Mini Concrete Road Ride on Power Trowel Machine

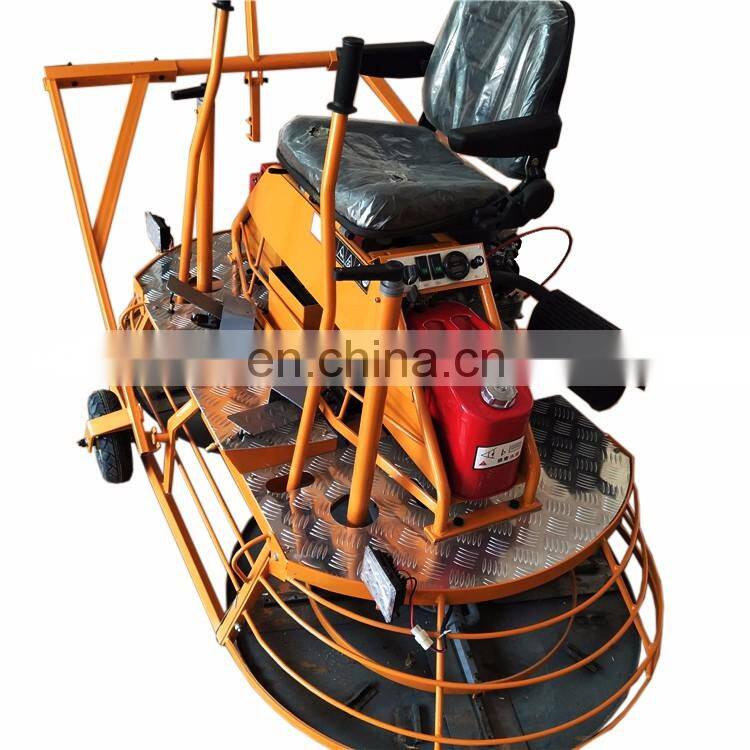

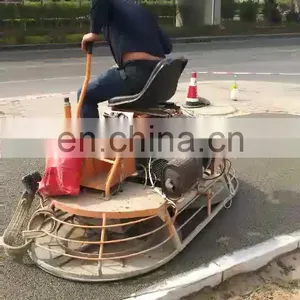

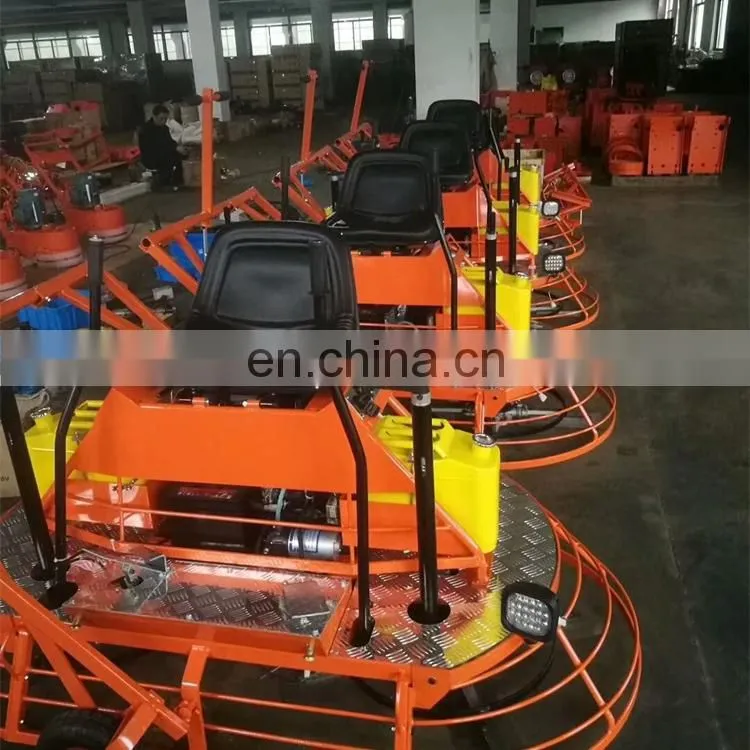

Mini Concrete Road Ride on Power Trowel Machine photo-1

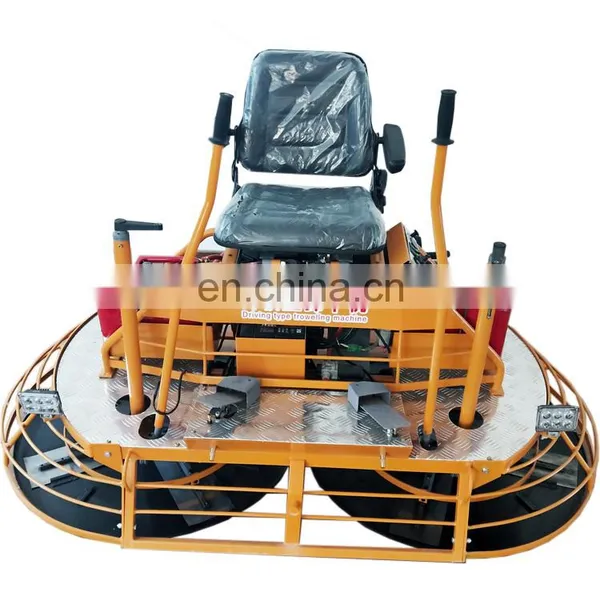

Mini Concrete Road Ride on Power Trowel Machine photo-2

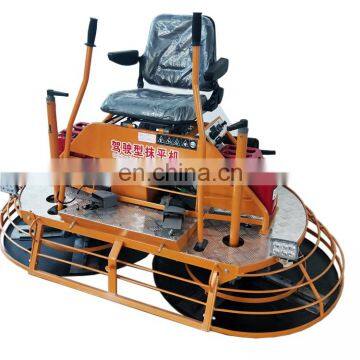

Mini Concrete Road Ride on Power Trowel Machine photo-3

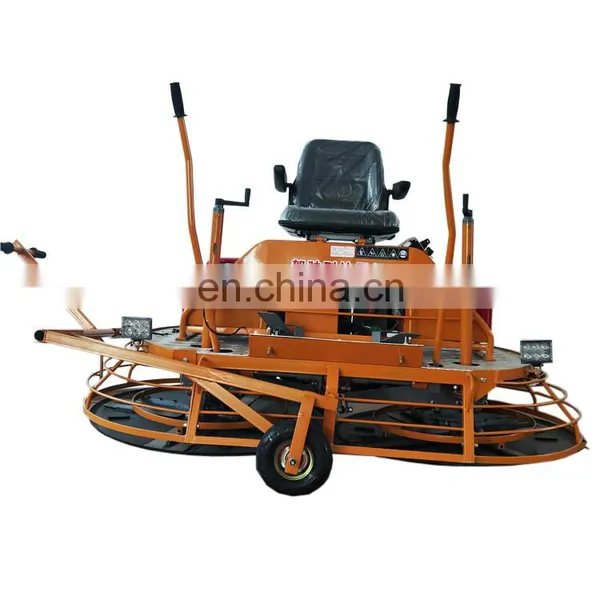

Mini Concrete Road Ride on Power Trowel Machine photo-4

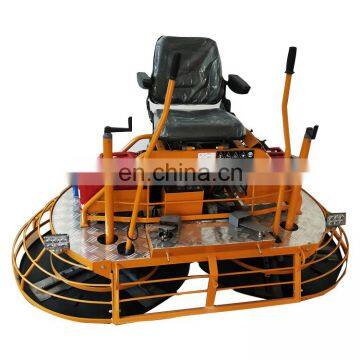

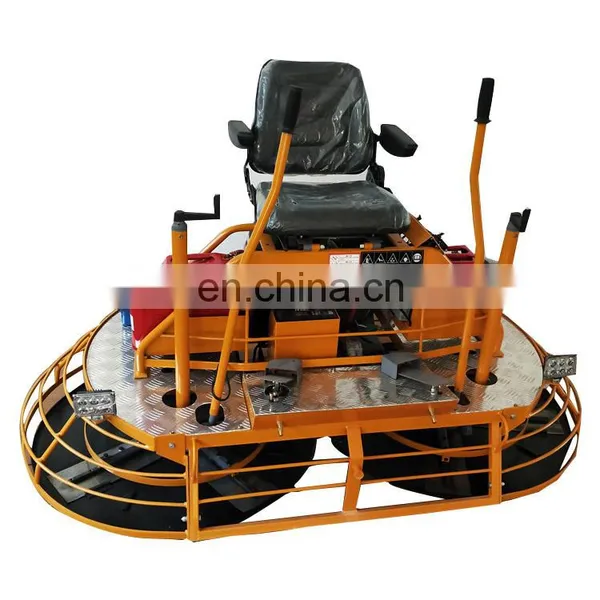

Mini Concrete Road Ride on Power Trowel Machine photo-5

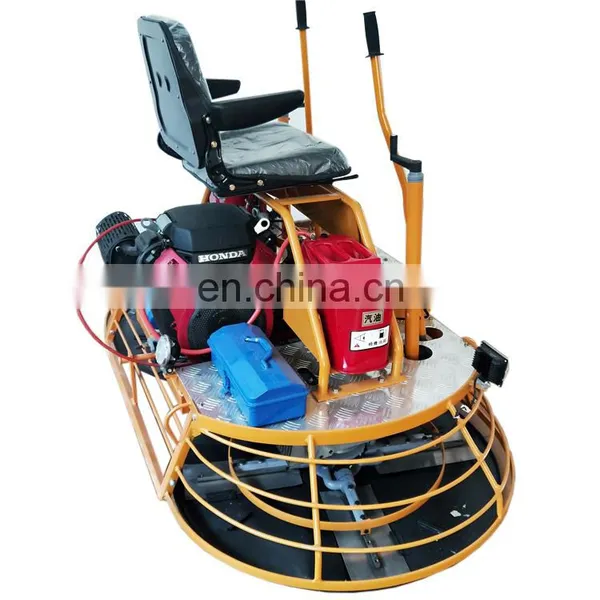

Mini Concrete Road Ride on Power Trowel Machine photo-6

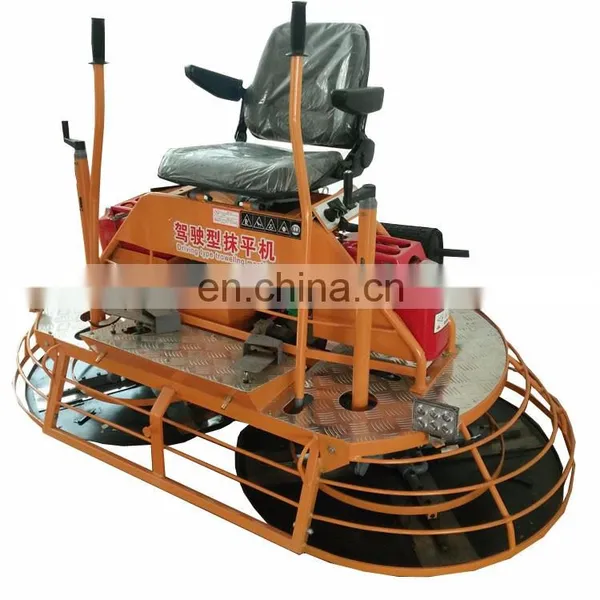

Mini Concrete Road Ride on Power Trowel Machine photo-7
US$ 3,076 - 3,230 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nuoman
Place of Origin:
Shandong, China
Type:
Double Cylinder
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Nuoman
Place of Origin Shandong, China
Type Double Cylinder
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description

Product Application

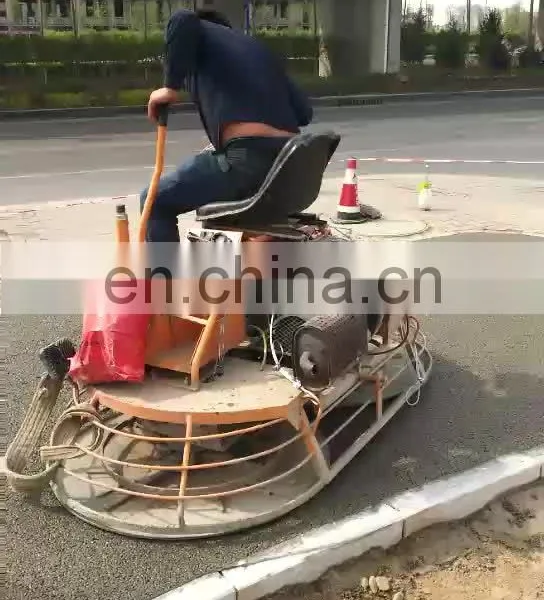

Suitable for leveling work of large area concrete surface, high quality and high working efficiency. Operating with double plate is easy and flexible. It is a ideal equipment for construction. Dynamic Ride-on power trowel series could greatly increase work efficiency for surface of concrete raised paste and trowel, smooth out. Widely used in building large area ground like factory, warehouse, square, and so on.

SPECIFICATIONS FOR RIDE ON POWER TROWEL MACHINE
Model
NM-Z80
NM-Z100
Machine weight
255kg
350kg
Pan diameter
80cm
100cm
Trowel size
260*150mm
350*150mm
Engine model
HONDA GX390
HONDA GX690
Power
13HP
24HP
Machine size(mm)
1650*850*1250
2100*1100*1230
Blade number
8
8
Low speed
1-130rpm
1-130rpm
High speed
1-180rpm
1-180rpm
Working efficiency
1000-1500m2/h
1000-2000m2/h
Working model
Seating driving
Seating driving
Starting model
Electric and hand
Electric
Oil tank
5L
10L
Engine oil
5L
10L
Gearbox
Maintenance free
Maintenance free
Working temperature of gearbox
20-42℃
20-42℃

Main Features

1. Aluminum alloy gearbox (maintenance free, long service life)
2. Adjustable handle
3. High quality, superior performance, easy to start, continuously variable transmission
4. Select ultra large diameter carbon structural steel with heat treatment
5. Scientifically designed centrifugal clutch drive, large driving torque
6. Surface spray, beautiful appearance, rust prevention and corrosion resistance
7. Each equipment is equipped with an auxiliary wheel, can move in a short distance

Detailed Images

Machine Parts

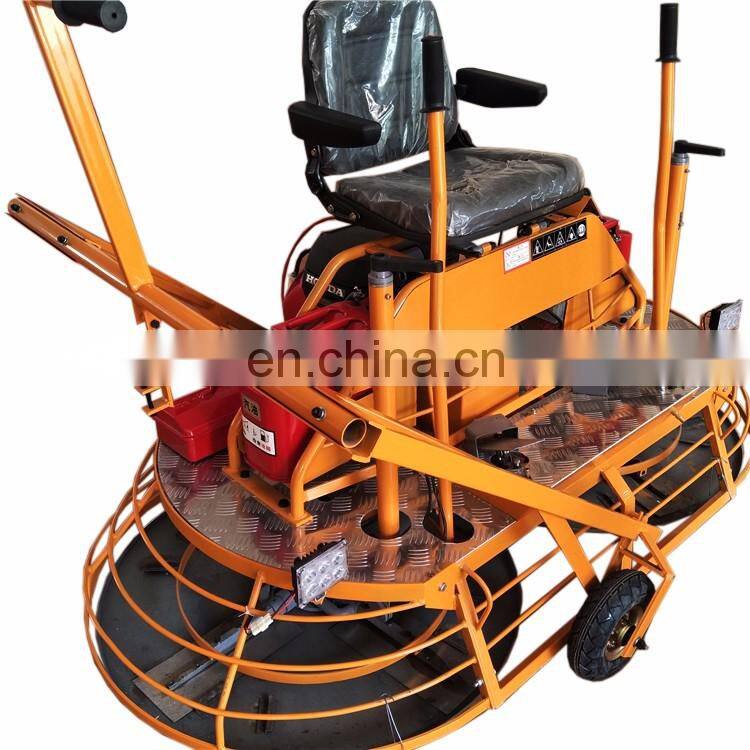

Name: Auxiliary wheel

Brand: CHINA

Original: CHINA

Energy conservation and environmental protection, high efficiency, operate easily. Equipped with an auxiliary wheel, can move in a short distance

Main Parts

Name: Engine
Brand: CHINA
Original: CHINA

equipped with Honda GX690 engine, provides stable and strong power

Machine Parts

Name: Blade
Brand: CHINA
Original: CHINA

Equipped two pans and eight blades, thickened pans and blades, the tilt Angle of the blade can be adjusted

Main Parts

Name: Gearbox
Brand: CHINA
Original: CHINA

Aluminum alloy gearbox (maintenance free, long service life)

Our Service

We have an independent factory, with 12 years of independent r & d production experience。
Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality。
We have a professional after sales team, 24 hours online for you to solve any product question
Support products to customize, can be tailored according to your requirements
Fast shipment, safe packing, ensure the goods are in good condition and timely delivery to you

Packing & Delivery
FAQ

1.Q: How can I make the payment?
        Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
2. Q: Can I order mix order?
         Yes.
3. Q: How long of the warranty period?
         1year
4. Q: How can i believe you and your factory?
         A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and we will welcome you enthusiasm. so we can establish good cooperation with each other.
reply you in 24 hours, if you are urgent, we can reply you soonest.
