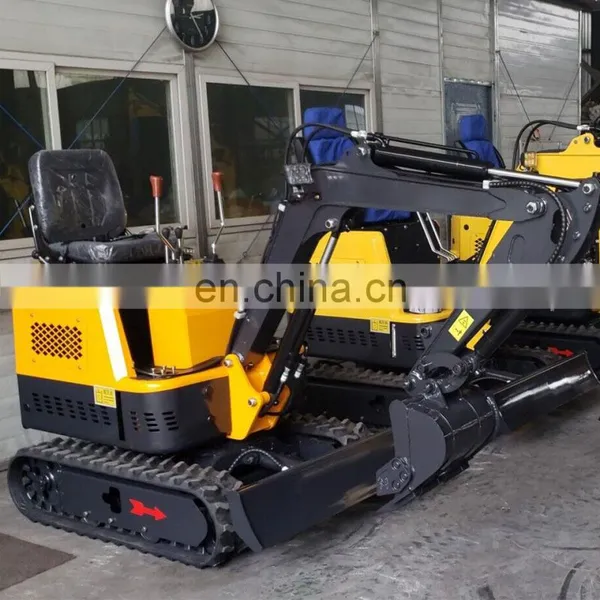

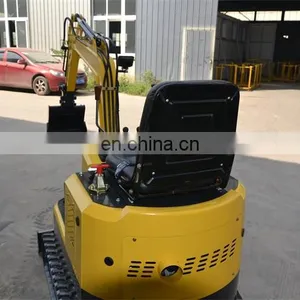

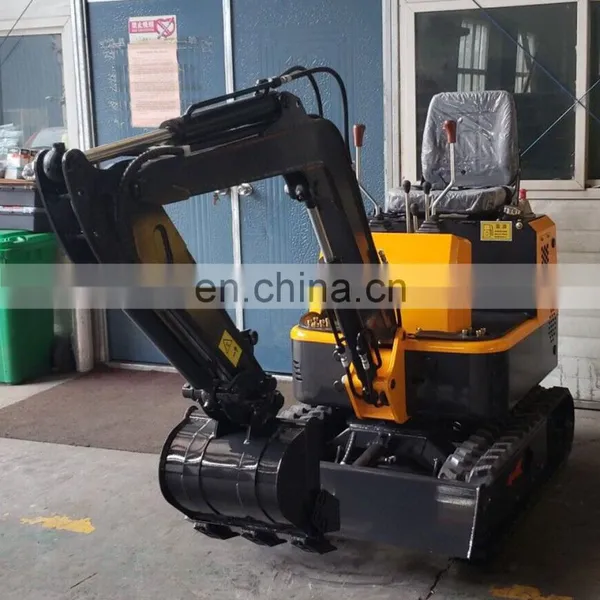

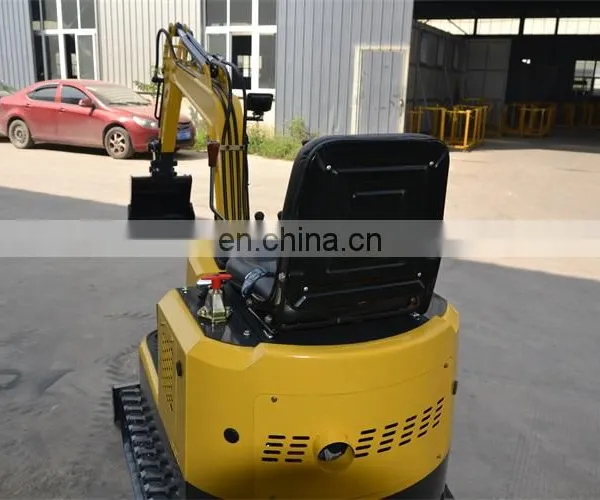

Price of Nuoman Mini Excavator 1.0 Ton Mini Digger Towable Mini Excavator
US$ 3,750 - 4,280
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nuoman
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5% Discount New Diesel Mini Excavator Digger Small ExcavatorUS$ 12,000 - 12,500MOQ: 1 Set -
China Super Mini Excavator Excavator Bucket Companies for SaleUS$ 12,900 - 13,000MOQ: 1 Set
-
Cheap Mini Excavator 1.0 Ton New Mini Excavator PriceUS$ 4,950 - 5,250MOQ: 1 Set
-
Price Digger Mini Excavator Accessories for Sale With Ce/isoUS$ 12,381 - 12,735MOQ: 1 Set
-
China Ht10 Battery Mini Excavator 1.8t for Sale Cheap PricesUS$ 9,905 - 10,188MOQ: 1 Set
Brand Name
Nuoman
Place of Origin
Shandong, China
Certification
CE
Condition
New
Moving Type
Crawler Excavator
Rated Speed
3km/h
Max Digging Radius
2400mm
Maximum Digging Depth
1400mm
Maximum Digging Height
2490mm
Bucket capacity
0.025-0.45 cbm
Operating Weight
1000kg
Product Description
Mini hydraulic excavator
NM-E10
model |
NM-E10
|
||||
Vehicle weight |
900kg |
Maximum ground mining radius |
2400mm |
||
Standard shovel capacity |
0.025-0.045m³ |
Swing(optinal) |
75° left / 45° right |
||
Working device form |
Backhoe |
Pumps |
Gear pump |
||
Rated power |
8.6kw |
System relief pressure-Standard |
16.5MPa |
||
Wheelbase |
770mm |
track width |
180mm |
||
Caterpillar chief |
1090mm |
Minimum radius of revolution |
1190mm |
||
Platform clearance |
380mm |
Maximum lift height of earth shovel |
325mm |
||
Platform end radius of gyration |
733mm |
Maximum digging depth of earth shovel |
175mm |
||
Emgine Model |
KP-192F |
Horsepower (net) |
8.6kw @ 3600rpm |
||
Cooling |
water-cooling |
Fuel injection |
direct |
||
Compact Dimensions
Easy site access
Compact Dimensions
With an overall width of only 950mm(3 ft 12in) the NM-E10 can easily
drive through narrow passages and
doors. Both indoor and outdoor jobs
are now accessible with the under
1000 kg (2,205 lb) weight making easy
trailer transportation between sites
possible.

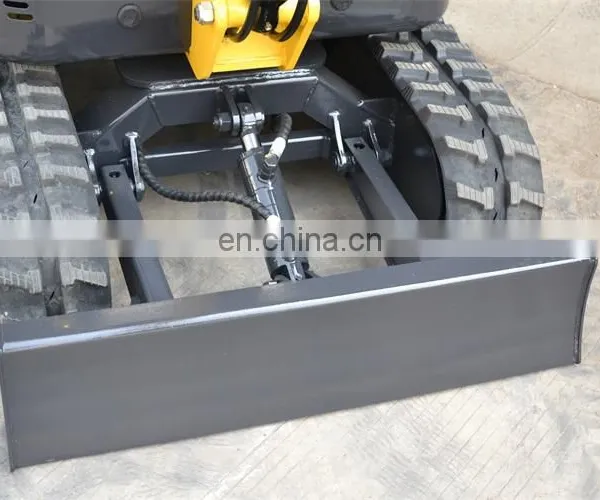

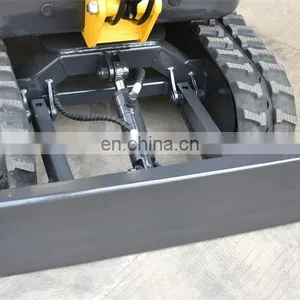

Extending Undercarriage and Blade
An extending undercarriage and fold
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.
Counterweight, safe operation
The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer
Main Features
The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
Detailed Images
Powerful Engine and Hydraulics
The 8.6 kW (12hp) KOOP engine and perfectly matched hydraulics(Eaton) provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful
hammer,auger and log grab. Low noise and vibration levels deliver comfortable operation
Eaton hydraulic system
One multi-way valve, eight-way valve to ensure the machine's hydraulic work is stable and efficient，like the tilting
bucket/auger/breaker/thumb bucket and totator bucket.
bucket/auger/breaker/thumb bucket and totator bucket.
Beautiful appearances and hydraulic meter
hydraulic oil meter.
Your safety is our top priority. The Nuoman mini excavator is designed to
help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.
help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.
EASY TO OPERATE
Controls are easy to use and operate,with the .The operating instructions in front of the console are simple and easy to use
Hydraulic oil radiator
Standard configuration, different from the others, the machine work is more durable
Latest model NM-E10
Production line& Operating Instructions book,professional and reliable.
Video conference available if you prefer!!!
Optional Attachments
