Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > NMMG-E08 0.8 Ton Mini Bagger Excavator Digger for Garden Sale Malaysia With Koop Engine CE/ISO Certified
NMMG-E08 0.8 Ton Mini Bagger Excavator Digger for Garden Sale Malaysia With Koop Engine CE/ISO Certified
US$ 3,540 - 3,679
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
nuoman
Place of Origin:
Shandong, China
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Cooling Double Cylinder Engine Narrow Bucket Mini Excavator 1 Ton for SaleUS$ 5,080 - 5,235MOQ: 1 Set -
China Cheap Mini Excavator for Sale 900 kgUS$ 4,103 - 4,382MOQ: 1 Set
-
Hot Sale 0.8T Small China Mini Digging Machine Excavator Cheap PriceUS$ 3,300 - 3,450MOQ: 1 Set
-
Mini Bagger Excavator Trailer 12 to 1 Ton for Sale Equipped Hydraulic Oil RadiatorUS$ 4,578 - 4,669MOQ: 1 Set
-
Mini Excavator With Changchai Engine Joystick 900kg CE/ISOUS$ 4,103 - 4,382MOQ: 1 Set
Brand Name
nuoman
Place of Origin
Shandong, China
Certification
CE ISO
Condition
New
Moving Type
Crawler Excavator
Rated Speed
1.5km/h
Max Digging Radius
2450mm
Maximum Digging Depth
1200mm
Maximum Digging Height
2350mm
Bucket capacity
0.02m3
Operating Weight
800kg
Product Description

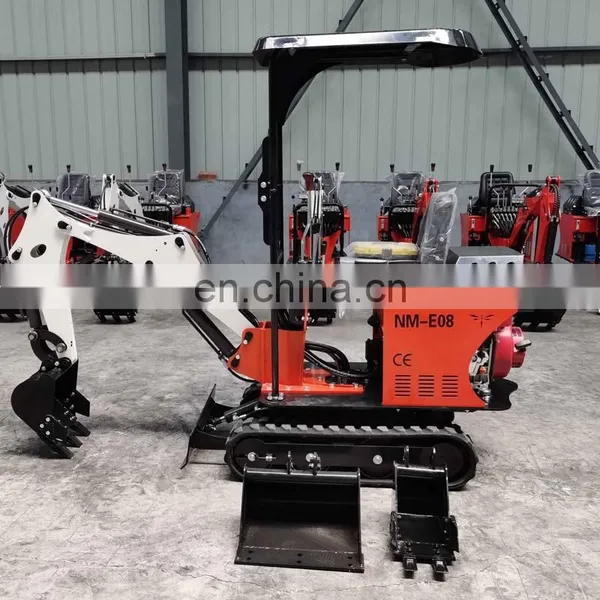

Mini hydraulic excavator
NM-E08
Items in one unit including:
NM-E08+Free roof+Free 20cm&38cm&50cm 3 buckets+Free Toolbox+an Extra set of filters free+ Free engine vibration pad+Free exported standard package
model |
NM-E08
|
||||
Vehicle weight |
720kg |
Maximum ground mining radius |
2400mm |
||
Standard shovel capacity |
0.025-0.045m³ |
Digging Force |
Max 7.5KN |
||
Working device form |
Backhoe |
Pumps |
Cast iron gear pump |
||
Rated power |
8.6kw |
System relief pressure-Standard |
14MPa |
||
Wheelbase |
720-780mm |
track width |
150mm |
||
Caterpillar chief |
1140mm |
Minimum radius of revolution |
1190mm |
||
Platform clearance |
380mm |
Maximum lift height of earth shovel |
120mm |
||
Platform end radius of gyration |
733mm |
Maximum digging depth of earth shovel |
200mm |
||
Emgine Model |
KP-192F |
Horsepower (net) |
8.6kw @ 3600rpm |
||
Cooling |
air-cooling |
Fuel injection |
direct |
||

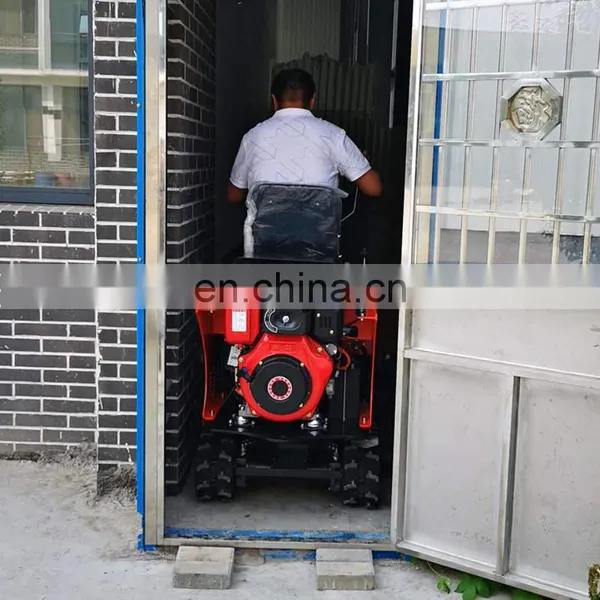

Compact Dimensions
Easy site access
Compact Dimensions
With an overall width of only 720mm(3 ft 3in) the NM-E08 can easily
drive through narrow passages and
doors. Both indoor and outdoor jobs
are now accessible with the under
800 kg (1800lb) weight making easy
trailer transportation between sites
possible.
Extending Undercarriage and Blade
An extending undercarriage and fold
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.
OEM Services
The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer
Main Features
The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
Detailed Images
Powerful Engine and Hydraulics
The 8.6 kW (12hp) KOOP engine and perfectly matched hydraulics(Eaton) provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful
hammer,auger and log grab. Low noise and vibration levels deliver comfortable operation
Cast iron hydraulic pump
With ten years of cooperation with a professional hydraulic pump manufacturer and supplier, our pumps are not easy to wear, unlike the aluminum ones on the market. If damaged, we can be compensated for free by air express.
Beautiful appearances and hydraulic meter
The integral forged hydraulic cylinder
manufacturing process is less prone to
oil leakage and more efficient
Your safety is our top priority.
Our products have been certified by TUV and CE on-site inspections and comply with the EU MD Machinery Safety Directive and EN ISO 12100 standards
EASY TO OPERATE

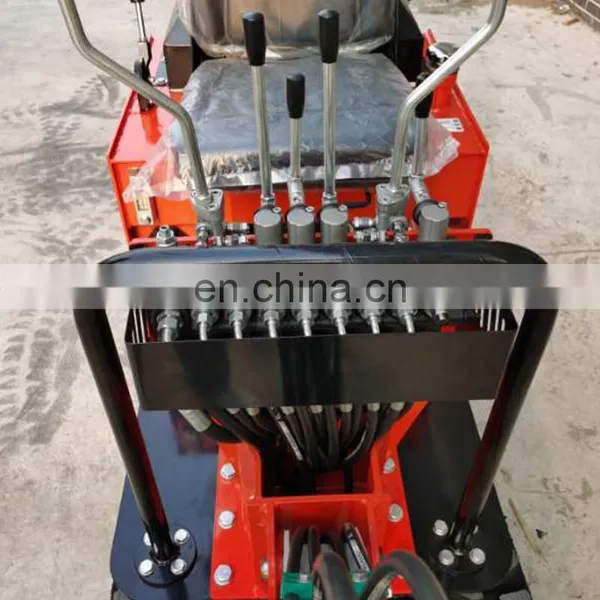

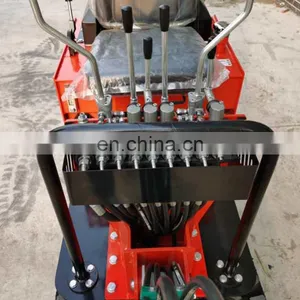

Eight-way multi-way valve, which can be matched with hydraulic control
machinery, has a wider range of use
Multiple assistive devices can be matched
Optional Attachments
