HST-TGW Universal Tensile tester , Geotextile tensile ,tearing ,bursting ,stripping , joint Test machine

HST-TGW Series Universal Tensile tester , Geotextile tensile ,tearing ,bursting ,stripping , joint Test machine

Applicable to test the geosynthetics include geotextile ,composite geotextile, geogrid, geomembrane which used in traffic, water conservancy, tunnel, construction and other industries ,to do tensile ,tearing ,bursting ,stripping ,joint and other test .

2.Standards :

1)JTG E 50-2006 <Test Methods of Geosynthetics for Highway Engineering> .

2)GB/T 15788-2005 <Geotextiles and Geotextile-related Products---Wide-width Tensile Test> ( ISO10319 : 1993 ) .

3)GB/T 16989-1997 <Geotextiles--Tensile Test for Joints / Seams by Wide-width Method> (ISO 10321:1992) .

4)GB/T 14800-1993 <Test Method for Determining the Puncture Resistance of Geotextiles> (ASTM D 3787) .

5)GB/T 13763-1992 <Standard Test Method for Trapezoid Tearing Strength of Geotextiles>

6)GB/T 1040-1992 <Plastics-Determination of Tensile Properties> .

7)ASTM D4595-1986 <Standard Test Method For Tensile Properties of Geotextiles By The Wide-Width Strip Method > .

8)BS 6906.1-1987 <Standard Test Method For Tensile Properties of Geotextiles By The Wide-Width Strip Method > .

9)GB/T 17640-1998 < Geosynthetics-Synthetics Filament Woven Geotextile> .

3.Technical parameter :

Test Force :

1)Max. test force ( kN ): 10 ( 20 kN, 30 kN, 50 kN optional )

2)Test accuracy: 1 class ( standard ) / 0.5 class ( special )

3)Effective test range: 2%-100%FS / (0.5 class with 0.4%-100%)

4)Force resolution: 1/300000

5)Test value relative error:±1% / (0.5 class with ±0.5%)

Test speed

1)Speed adjusting range: 0.005~500 mm/min (step less speed regulating) / ( can be customized ) .

2)Accuracy: better than ±1%

Displacement(moving cross beam)

1)Test range: 0 ~ 999 mm

2)resolution: 0.001 mm

3)Test accuracy: better than ±1%

Deformation

1)Effective test range: 2%~100%FS

2)Resolution: 0.01mm

3)Test value relative error: ±1%

Test space

1)Effective tensile space: 700 mm(can customize) .

2)Effective compression space: 700 mm(can customize) .

3)Effective test width: 400 mm (can customize) .

Working environment

Room temperature: 10 ~ 35°C,humidity: 20% ~ 80%

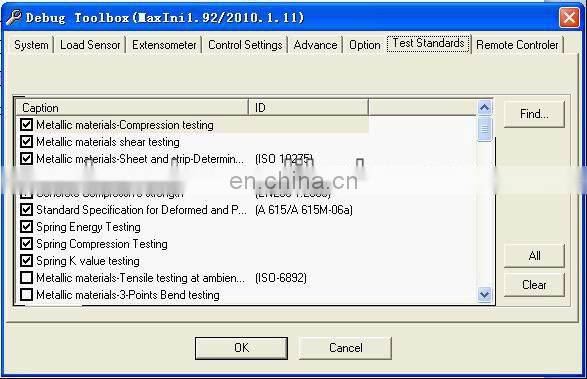

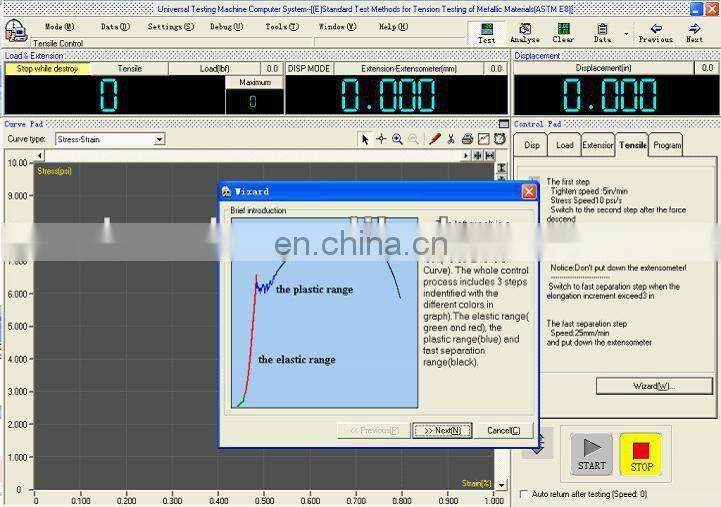

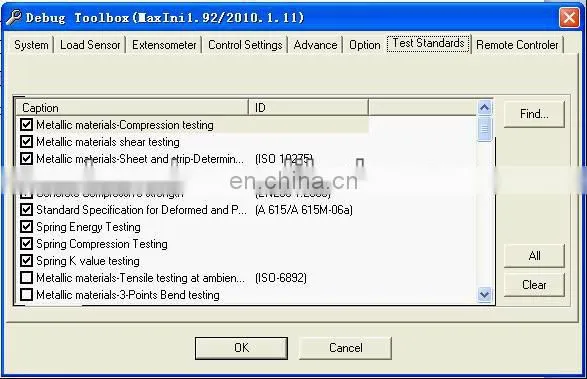

4. Software interface
