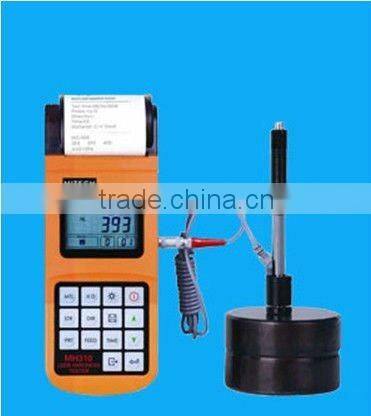

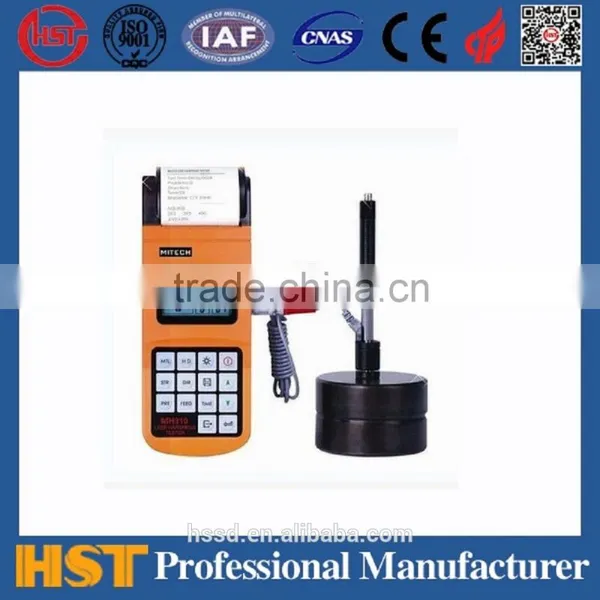

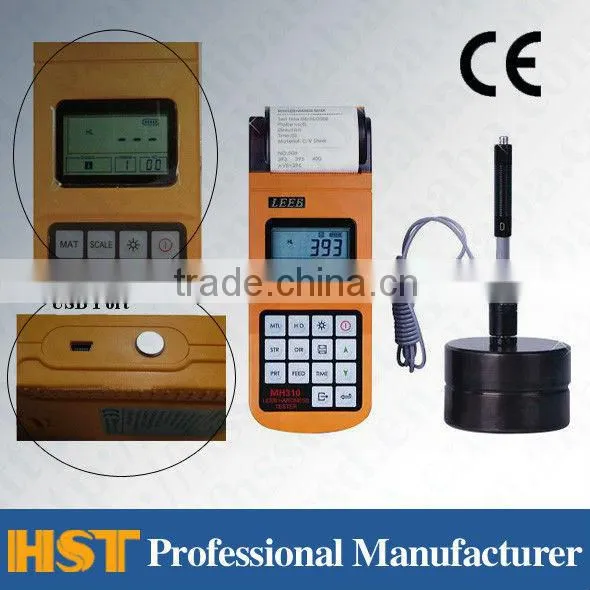

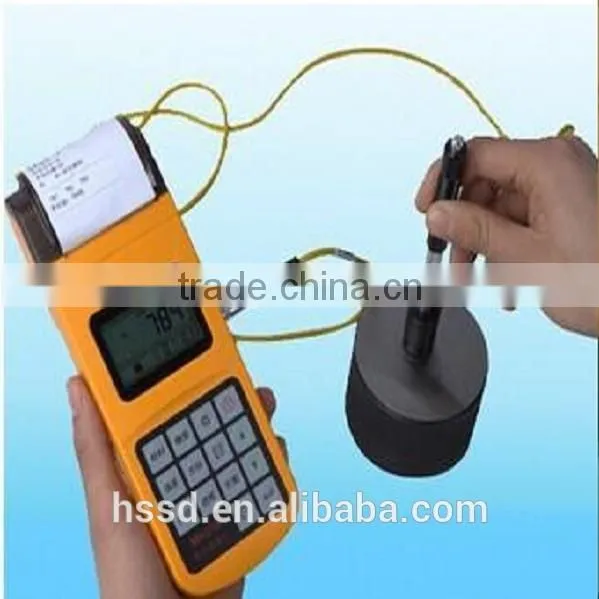

Help CenterMH310 Portable Metal/Rubber/Plastic Hardness Testing Machine/ Hardness Tester Price
Related Products
-
TH130 Portable Metal Hardness Tester/portable DurometerUS$ 300 - 1,000MOQ: 1 Piece -
HARTIP-1800 Portable Hardness TesterUS$ 1,000 - 1,500MOQ: 1 Piece
-
HST-570HAD Digital Multi-functional Hardness TesterUS$ 500 - 1,000MOQ: 1 Set
-
HBRV-187.5D Electric Rockwell Brinell Vicker Universal Hardness Tester, Universal Hardness Testing DeviceUS$ 1,450 - 1,500MOQ: 1 Set
-
LX-A-1 Single Needle Shore A SclerometerUS$ 80 - 300MOQ: 1 Set

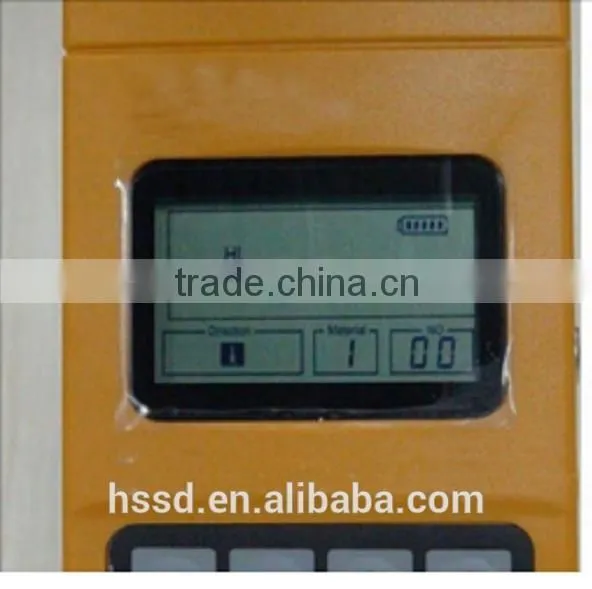

2. Large screen LCD, showing all functions and parameters. With EL background light.

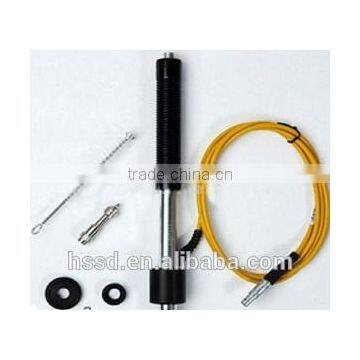

3. Seven impact devices are available for special application. Automatically identify the type of impact devices.
4. Test at any angle, even upside down.
5. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
6. Large memory could store 100 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
7. Battery information showing the rest capacity of the battery and the charge status. User calibration function.

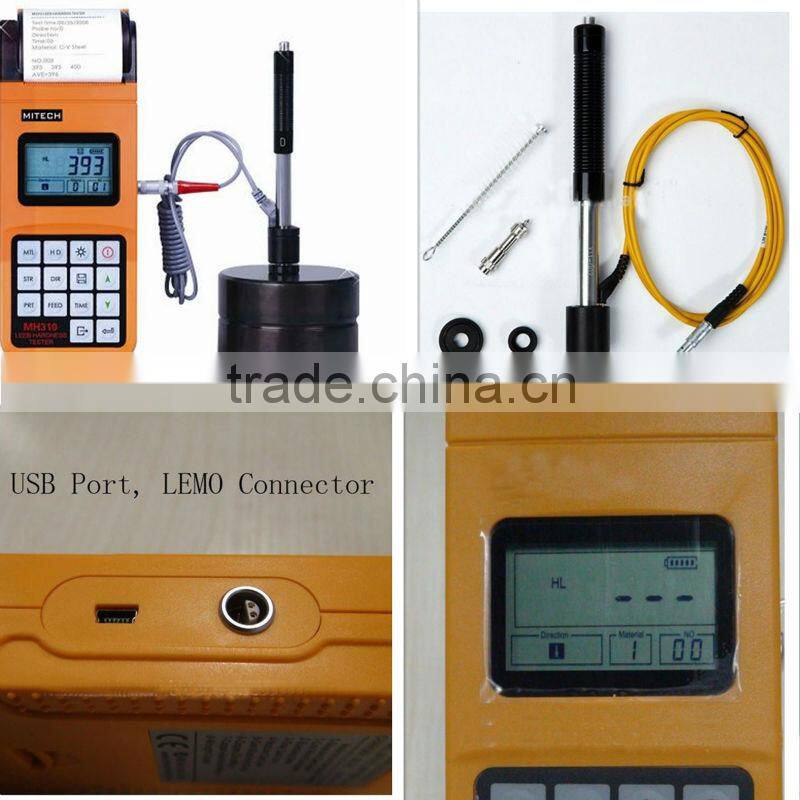

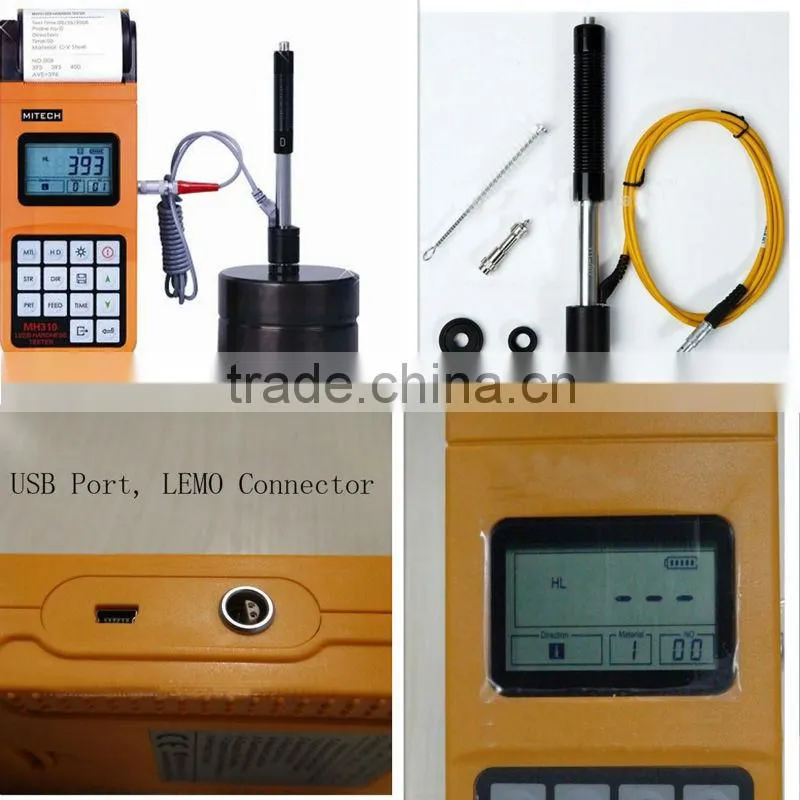

8. Software to connect to PC via USB port.
9. Thermal printer integrated, convenient for in field printing.
10. NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous
12. Outline dimensions 212mm×80mm×32mm
1. Die cavity of molds
2. Bearings and other parts
3. Failure analysis of pressure vessel, steam generator and other equipment
4. Heavy work piece
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece
MH-310 Portable Hardness Tester Technical Specifications
| No. | Type of impact device | Hardness value of Leeb standard hardness block | Erro of displyed value | Reapeatability |
1 | D | 760±30HLD 530±40HLD | ±6 HLD ±10 HLD | 6HLD 10HLD |
2 | DC | 760±30HLD 530±40HLD | ±6 HLDC ±10 HLDC | 6HLD 10HLD |
3 | DL | 878±30HLD 736±40HLD | ±12 HLDL | 12HLDL |
4 | D+15 | 766±30HLD 544±40HLD | ±12 HLD+15 | 12HLD+15 |
5 | G | 590±40HLD 500±40HLD | ±12 HLG | 12HLG |
6 | E | 725±30HLD 508±40HLD | ±12 HLE | 12HLE |
7 | C | 822±30HLD 590±40HLD | ±12 HLC | 12HLC |
2. Measuring direction 360°
3. Hardness Scale HL HB HRB HRC HRA HV HS
4. Display segment LCD
5. Data memory 100 groups max relative to impact times 32^1
6. Printing paper: width is 57.5±0.5 mm, diameter is 30mm
7. Battery pack: 6V NI-MH
8. Battery charger: 9V/500mA
9. Continuous working period about 150 hours with backlight off, no printing
10. Communication interface USB1.1
11. Outline dimensions 212mm×80mm×32mm
1. Delivery Packaging
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
2.Shipping & Delivery:
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.
Our products sell well around the world, 90% products have CE, ISO, CNAS certifications
Lifelong after-sales service & maintenance;
Response within 24 hours for any problem;
Overseas training, installation is avaliable
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
