HARTIP1800 Portable Pen Type Hardness Tester With Printer
HARTIP1800 is an advanced state of the art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength. HARTIP 1800 has a memory capacity of 400 blocks and 360,000 data which can be download to computer via USB. The 3.7V Li ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel Frictionless loading shaft, high precision testing force
Automatic testing process, no human operating error
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Technical parameter:
Model | HARTIP 1800 |
Principle | Leeb hardness measurement |
Accuracy | +/-4HL(0.5%@HL=800) |
Display | digital with high contrast LED |
Display mode | Normal or flip |
Hardness scale | HL/HRC/HRB/HB/HV/HS/σb |
Measruing range | HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 |
Impact device | D (Internal) |
Materials | 9 common metal materials |
Memory | 360,000 data in 400 blocks |
Statistics function | Average / Max. / Min. / value |
Recalibration | Allowed by user |
Interface | USB for data transferring to PC and charging battery |
Indicator | Low battery |
Power on/off | Auto |
Power supply | 3.7v Li-ion rechargeable battery |
Working environment | -40~+80°C |
Standard | ASTM A956 |
Dimension (mm) | 148x44x22 |
Net weight (g) | 110 |
Standard Configurations:
1. Objective glass 40x and 10x
2. Vickers Indenter
3. Microscope 10x,
4. Standard Hardness Brocks: 2 pcs
5. Thin Specimen Testing Platform
6. Column Testing Platform
7. Forcipate Testing Platform
8. Level vial
9. Power Cable
10. Assistant Tools

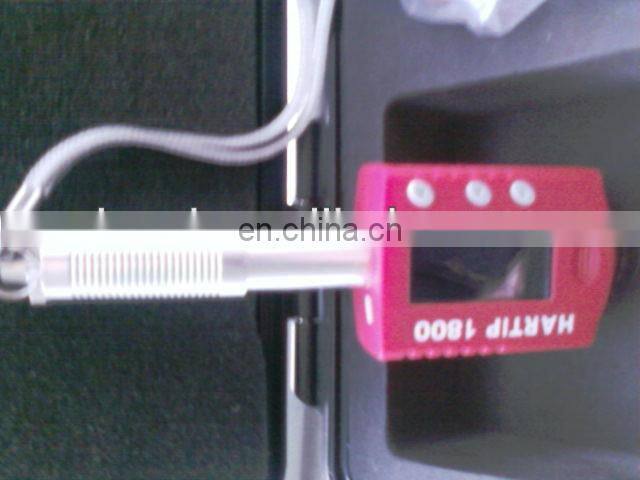

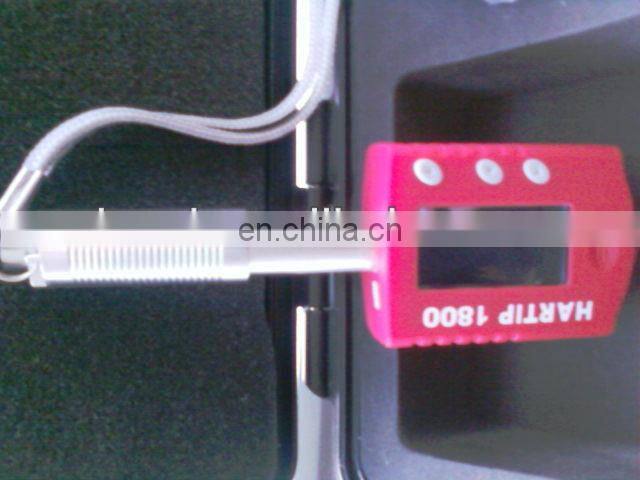

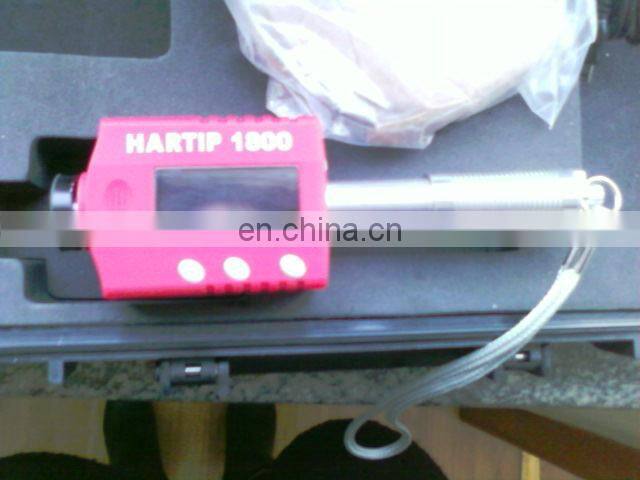

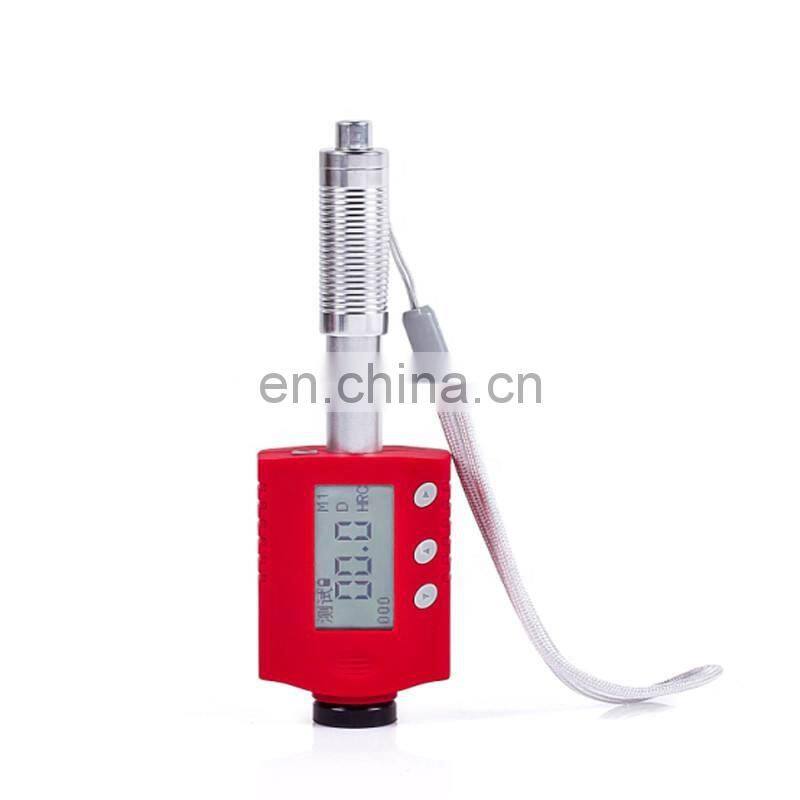

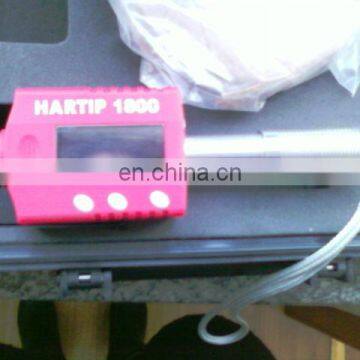

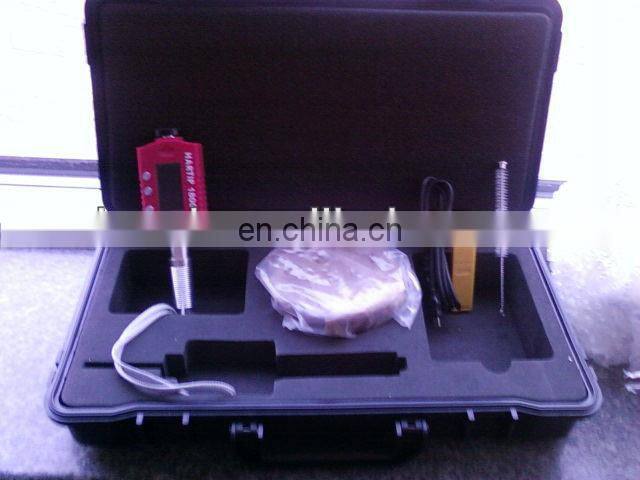

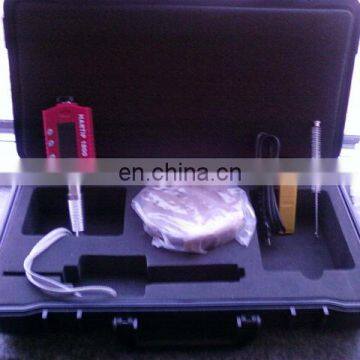

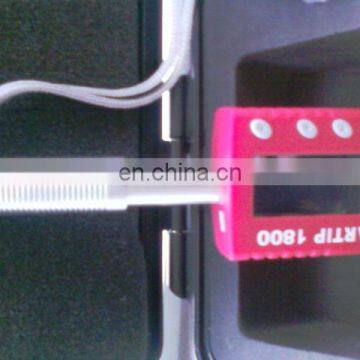

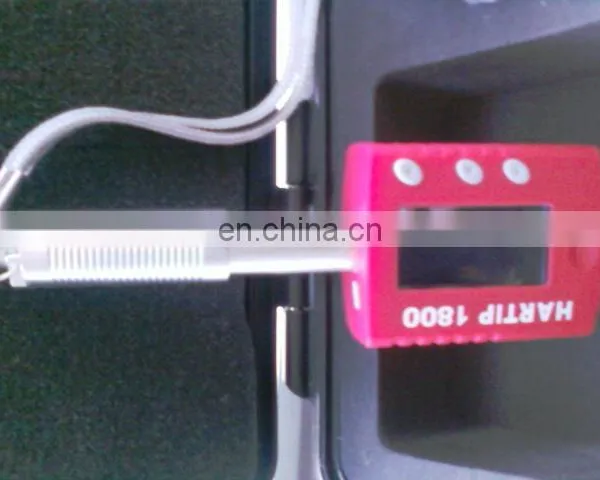

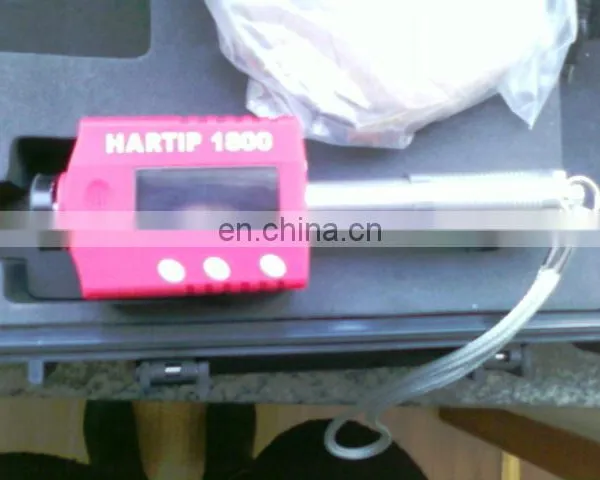

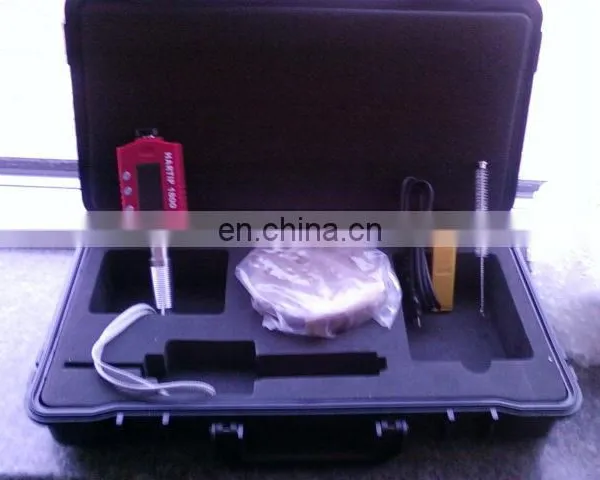

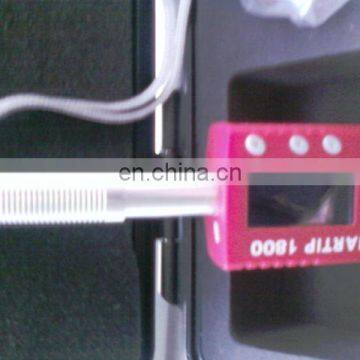

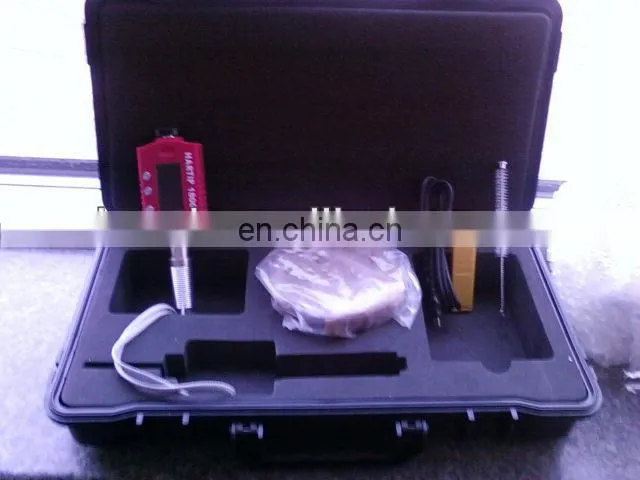

HARTIP1800 Hardness Tester Pictures:
For more informations, please contact Sunny for more informations: +86-15866777590
