Three Eyepiece Metallographic Microscope With CCD Camera
US$ 999 - 1,599
/ Set
1 Set(Min. Order)
- QINGDAO CHINA
You May Like
-
Metallurgical Specimen Manual Grinding Polishing Machine
-
MP-2B Metallurgical Specimen Grinder-polisher
-
Automatic Metallography Specimen Mounting Press
-
Q-100B Metallogical Specimen Cutting Machine
-
MP-1B Lab Equipments ,Metallographic Specimen Grinding Polishing Machine, Hand Grinding and Polishing Machine
-
MP-2B Metallographic Sample Grinder Polisher/Grinding Polishing Machine
Product Details
| Brand Name | Hensgrand | Place of Origin | Shandong, China | |
| Model Number | 4XCE |
Product Description
three eyepiece metallurgical microscope
4XCE Inverted Trinocular Metal Microscope
1. Function and application
This metallographic microscope is mainly used for metal identification and analysis of the internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify
the product quality in industrial application. This microscope can be equipped with photographic device which can take
metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify
the product quality in industrial application. This microscope can be equipped with photographic device which can take
metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. Main technical parameters
Three eyepiece tube | Tilting angle: 30° Adjustable range: 55-75mm |
Eyepiece | Wide view eyepiece 10X (16mm) |
Objective lens | Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil) |
Loading table | 150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
Eyepiece (optional) | 12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |
Objective lens (optional) | 60X, 80X |
Photographic device (optional) | 1. Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens |
3. Configuration
1) Metallographic microscope: inverted trinocular microscope 4XC;
2) Adaptor: special adaptor
3) Image system: camera shooting CCD
4) Image analysis system: SRMAS softwar

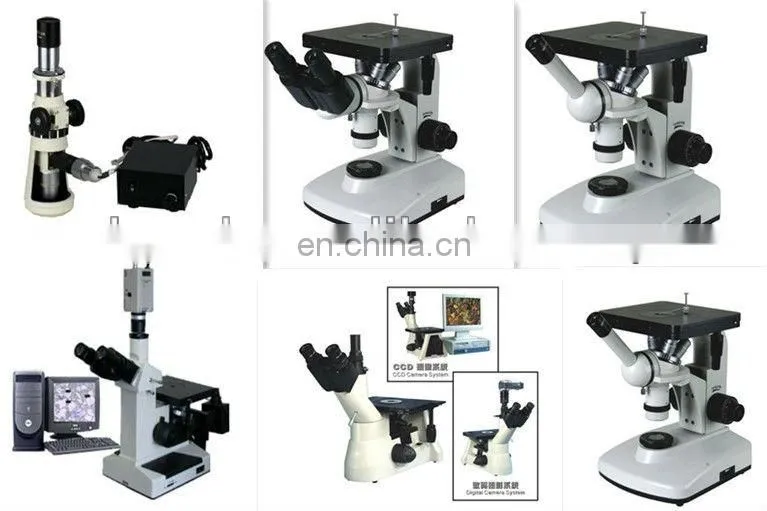

All Kinds Microscope:
CE Certificate:
