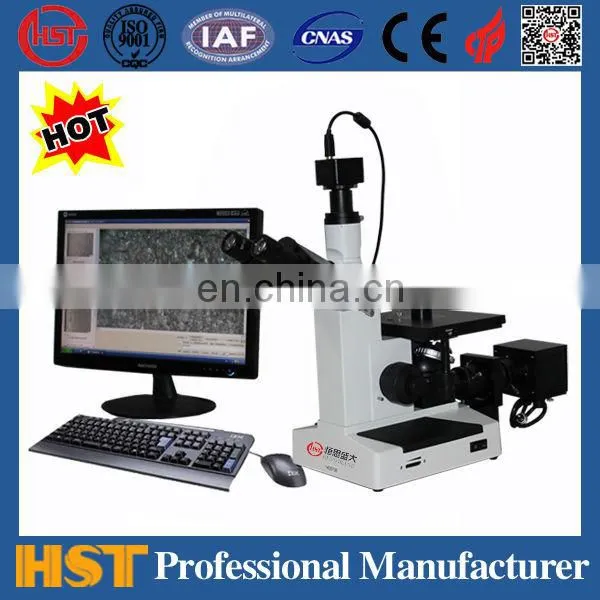

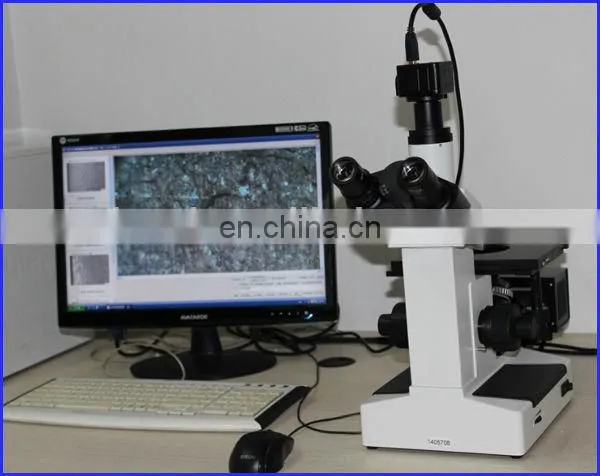

4XCE Metallographic Microscope/Trinocular Microscope With CCD Camera
1.Function and Application:
This metallographic microscope is mainly used for metal identification and analysis of the
internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is
also the key instrument to verify the product quality in industrial application.
This microscope can be equipped with photographic device which can take metallographic
picture to carry out artificial contrast analysis, image editing,output, storage, management
and other functions.
2.Main Technical Parameters:
Three Eyepiece Tube |
Tilting Angle: 30° Adjustable Range: 55-75mm |
Eyepiece |
Wide View Eyepiece 10X (16mm) |
Objective Lens |
Flat Fielding Achromatic Objective Lens 10X, 25X, 40X, 100X (oil) |
Loading Table |
150 x 200mm Moving Range: Vertical 15mm, Horizontal 15mm |
Eyepiece (Optional) |
12.5X, 16X, 20X, 10X Flat Fielding Graduation Eyepiece (Grid Value 0.1mm) |
Objective Lens (Optional) |
60X, 80X. |
|
Photographic Device (Optional) |
1.Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer. 2. Digital camera, specific adapting lens. |
3.Configuration:
3.1. Metallographic Microscope: Inverted Trinocular Microscope 4XC.
3.2. Adapter: Special Adapter.
3.3. Image System: Camera Shooting CCD.
3.4. Image Analysis System: SRMAS Software.
4.The Realistic Pictures Of Our Factory:

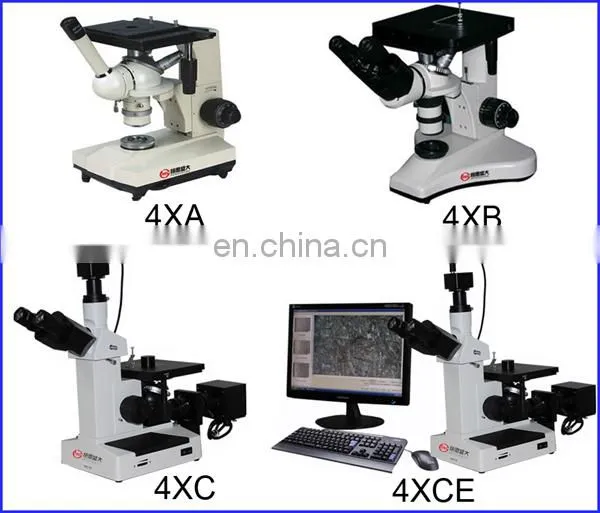

5.Similar Products Show:
6.Our CE Certificate:
7.Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
