Deep Drawing Cups Testing Machine

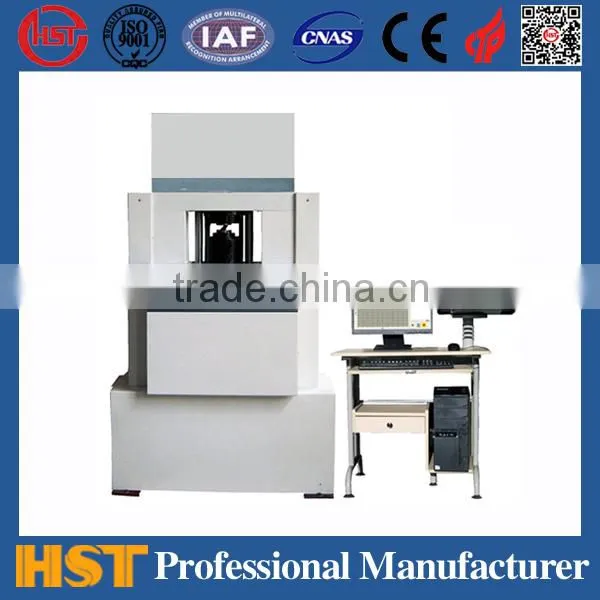

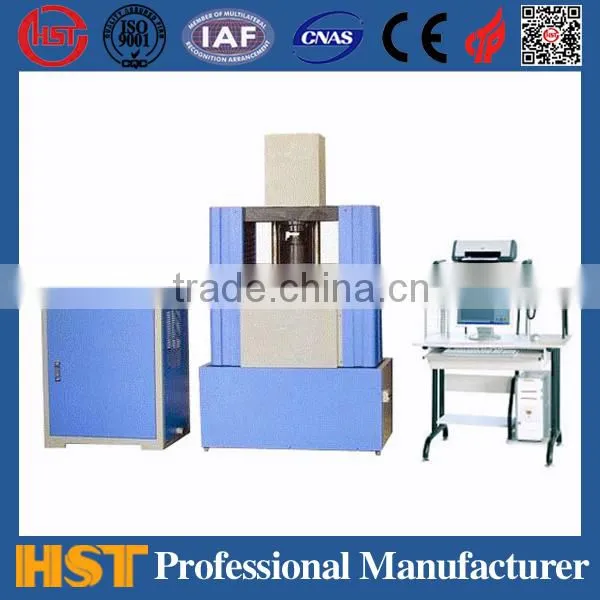

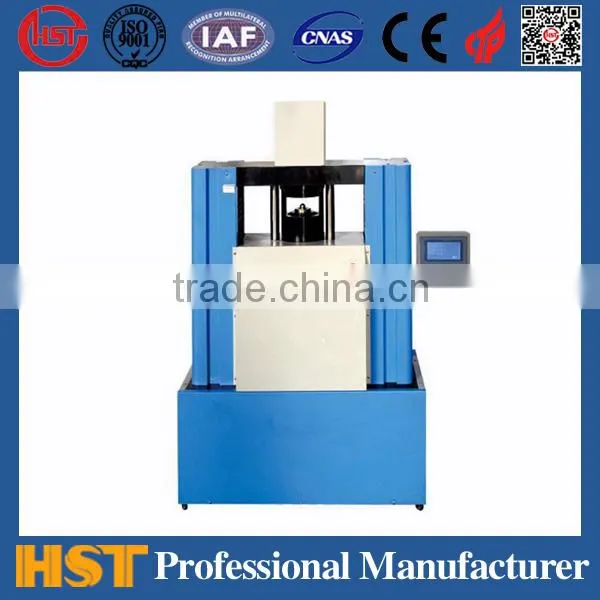

GBS-60 Digital Display Erichsen Deep Drawing Cups Testing Machine
Deep Drawing Cups Testing Machine
Application & Features
The cupping testing machine is used to test extend and stretch capacity of metal thin plate and band. It is the only instrument to test the metal’s plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.
Standards
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test, GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.
Feature
1.Use a servo motor to load instead of hydraulic piston and cylinder;
2. Change oil pressure cylinder to load cell, more precision and reliable;
3.Auto stop when crack appears, convenient to observe the crack;
4.With peak value memory function, like max. punch load, max. deformation deep etc;
5,Turnover grips, punch and sample is easy to change;
Specification
Model |
GBS-60 |
Specimen thickness |
0.1-2mm |
Max Specimen width |
100mm |
Max Punch stroke |
60mm |
Clamping piston stroke |
19-21mm |
Max. punching load |
60Kn |
Max. clamping load |
25Kn |
Standard punch diameter |
Φ20±0.05mm |
Standard cushion mold hole diameter |
Φ33±0.1mm |
Standard press mold hole diameter |
Φ27±0.05mm |
Display resolution |
0.01mm |
Speed |
2-100mm/min |
Display resolution |
0.01mm |
Display mode |
LCD display |
Display value |
Clamping force, stamping force, displacement and cup drawing value, speed rate |
Control mode |
Manul adjust speed rate, Automatic adjust and record cup drawing value |
Structure |
Composite cylinder, double oil pump supply oil, grating measurement |
Deep Drawing Cups Testing Machine
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
Deep Drawing Cups Testing Machine
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
Deep Drawing Cups Testing Machine
Our CE Certificate
Deep Drawing Cups Testing Machine
