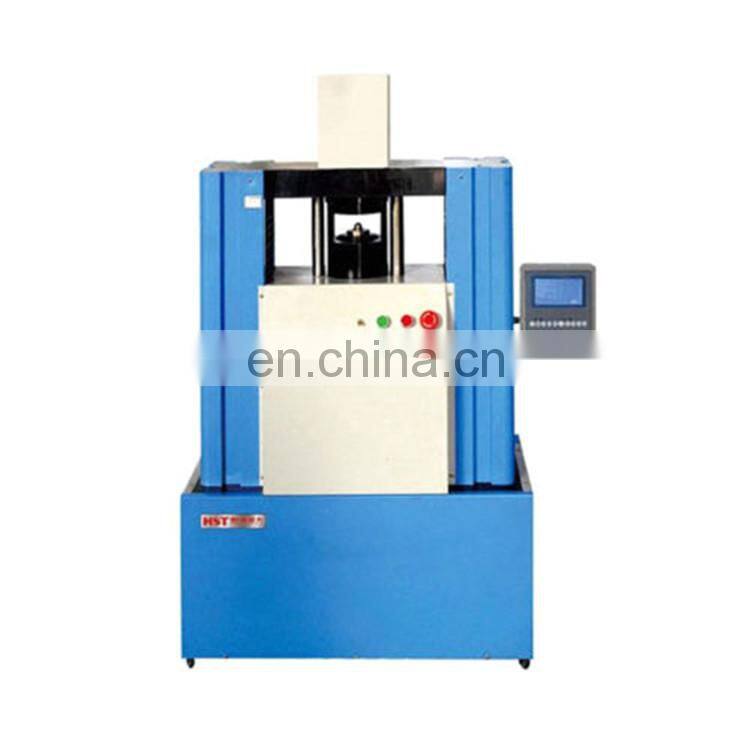

GBS-60B Digital display Cupping Testing Machine
Application :
The cupping testing machine is specially used to test extensibility of metal thin sheet and banded material and is the only instrument to test the metal ’ s plastic deformation. The machine fully accords with GB/T 4156-2007<Metallic materials—Sheet and strip—Erichsen cupping test>.
The compound oil cylinder adopt hydraulic clamping, hydraulic press. Automatically parking when cracking appearing , easy to observe crack; Have the function of remember the peak--the maximum pressure, maximum deformation flaring depth. Tilting fixtures, the punch and sample replacement, loading and unloading convenient
Type GBS-60B for digital display semi-automatic Cupping Testing Machine, manual adjust the test rate, adopt grating measure the displacement. Single-chip computer record, operational data and judge the park.
Technical Parameters:
Mode |
GBS-60B |
Plate thickness |
Standard cupping Test0.1-2mm, (Non-standard cupping Test:0.1-3mm) |
Plate width |
100mm |
Punching stroke |
60mm |
Stepping up piston stroke |
19-21 mm |
Stamping load |
60kN |
Maximum clamping load |
25kN |
Mold specifications of cup penetration test |
standard red header:Φ20±0.05mm, standard pad mode aperture:Φ33±0.1mm standard fixed-aperture mode:Φ27±0.05mm (special orders can provide non-standard mold) |
The resolution ratio of cupping values |
0.01mm |
