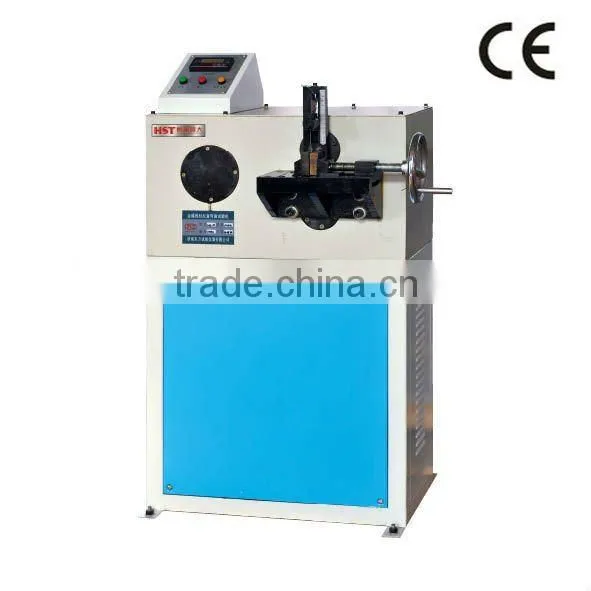

Electric Metal Wire Bending Machine
Application:
This testing machine is mainly used for repeated bend test of metal wire and testing performance and defect of bearing plastic deformation at the process of repeated bending metal wire. It can also process sheet metal bend test after using sheet clamping device. It is widely used for steel and building industries as well as manufacturers and users of steel wires, electrical wires and cables.
Technical Parameters
Serial Number |
Item name |
Unit |
Parameters |
1 |
Sample diameter |
mm |
Φ1-φ10 |
2 |
Sample length |
mm |
150-200 |
3 |
Bending angle |
Degree |
±90° |
4 |
Bending speed |
time /minute |
< 60 |
5 |
Numeration range |
time |
0-9999 |
6 |
Motor power |
Kw |
1.1 |
7 |
External dimensions |
mm |
1000*600*330 |
8 |
Tester weight |
Kg |
about 210 |
Working conditions
1. Room-temperature 10-35°C
2. In the stable basis, level to relocate.
3. In no vibration circumstances
4. No corrosive substance around
5. No apparent electromagnetic interference
6. Power supply voltage fluctuation range does not exceed the rated voltage 380V plus or minus 10;
7. Tester surrounding should have some spare space
Send Inquiry to This Supplier
