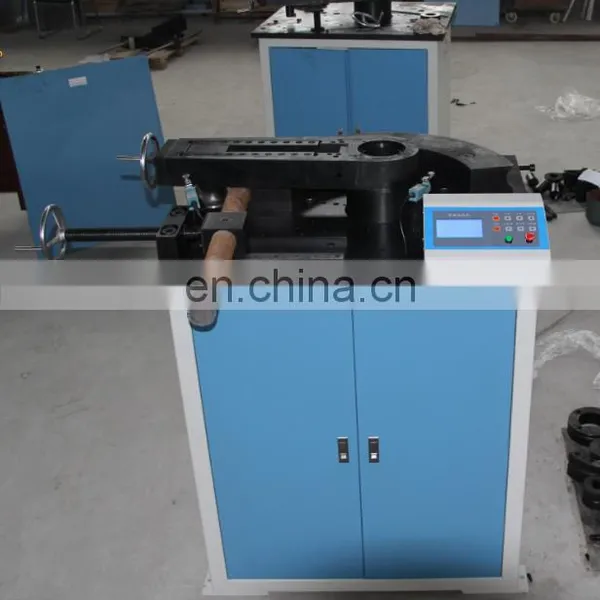

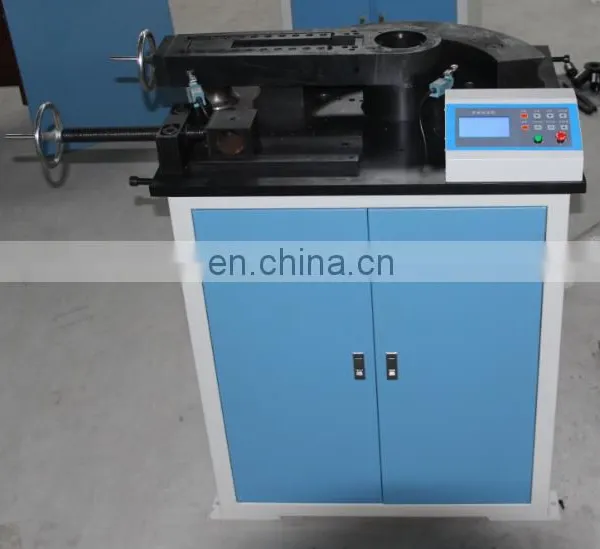

GGW-40 bend testing machine for pipes
1. Application
This series of pipe bending test machine is a flat metal pipe bending test equipment.
2. Standards
GB/T244-2008,GB/T18984-2003,ISO8491:1998
3.Feature
1. Using cycloid systems, microprocessor control electrical appliances and precision
2. Digital display angle
3. Reliable limit protection
4. Replacement parts simple and low noise
4.Main technical parameters
Model |
GGW-50 |
GGW-65 |
Bending Diam Of Steel Bar |
20-50 |
30-65 |
Forward Bending Angle |
0°~180° At Will |
|
Reverse Bending Angle |
0°~90° At Will |
|
Roating Speed Of Working Table |
<2 r/min |
|
Distance Between The Center Of Two Rolls |
165mm |
390mm |
Diameter Of The Working Table |
580mm |
830mm |
Flexural Core Cover |
(40,50)1set |
(40,65)1set |
Motor Power |
1.5kw |
3kw |
5,Main configuration
5.1 Measurement and control system-----1set
5.2 Three-phase asynchronous motor-----1set
5.3 Photoelectric angle measuring device-----1set
5.4 Bending tester main frame------1set
5.5 Reduction system-----1set
5.6 Bent arm adjustment device-----1set
5.7 Flexural core cover fixture-----1set
Contact: Alice Skype: hssdtest What's APP / TEL: +86-15098778967 Ali: cn1001290168
Send Inquiry to This Supplier
