Product introduction

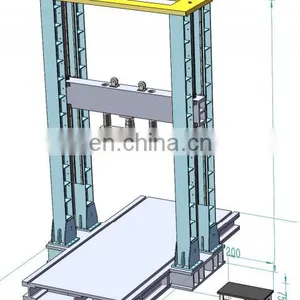

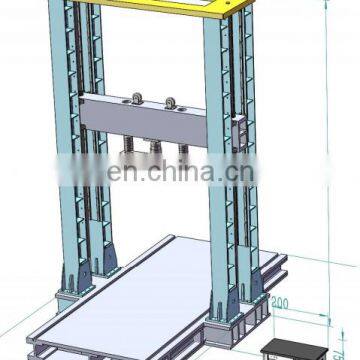

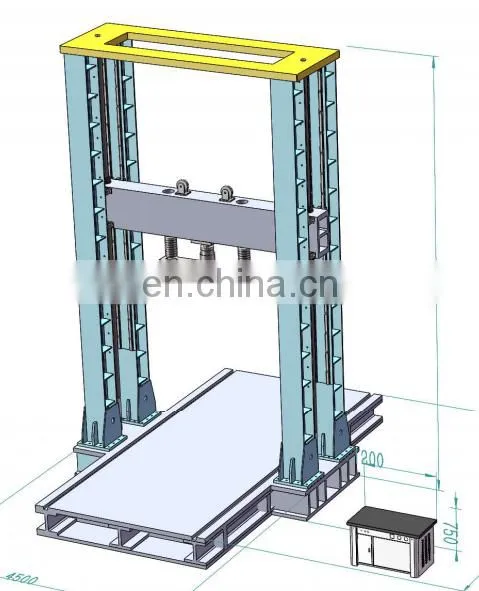

The HS-50T-P computer control tube compression testing machine adopts hydraulic drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can realize fully automatic closed-loop control. It consists of main engine, hydraulic power source, measurement and control system, and compression attachment. The four-part composition has a maximum test force of 500kN and a test machine accuracy level of one. The product is a single-space structure with a compression space between the moving beam and the base, and the test space is adjusted by the motor rotation adjustment space.
Four-column gantry frame structure as a bearing capacity frame;
Double screw rotation adjustment test space;
The moving beam is equipped with a multi-roller device to rotate the anti-lateral force;
Compression device: equipped with self-weight elimination device;
Two-way oil cylinder load test force.
Technical Specification:
Maximum test force: 500kN;
Testing machine class: class 1;
Test force measurement range: 1%-100% FS;
Test force resolution: 1/300000 of full scale;
Test force relative error: ±1%;
Displacement measurement resolution: 0.01mm;
Displacement indication relative error: ± 0.5%;
Deformation indication value relative error: ± 0.5%;
Loading rate range: 50N/s to 20kN/s;
Maximum compression space: 5200mm;
Two columns effective span: 3200mm;
Piston maximum stroke: 250mm;
Mobile trolley wheel: support the wheel lift with hydraulic support device;
The trolley for placing the sample (length*width): 6500*2800mm;
Total power: 5.2kVA (AC 380V) + 0.5kVA (AC 220V);
Power supply: three-phase five-wire system.
Standard Specification:
500kN four-column double-screw gantry frame structure mainframe;
50 tons of American Trancell high-precision spoke type load cell;
5500mm Japan Nemicon displacement sensor;
4L/min servo hydraulic oil source....................1 set
Italy Atos proportional servo control valve....................1 pc
Italy Marzocchi external gear....................1 pc
YUKEN brand check valves, relief valves, electromagnetic reversing valves, as well as well-known brands of oil filters, air filters and other accessories;
Closed-loop control systems.....................1 set
Microcomputer control test software for electro-hydraulic servo test machine.............1 set
Lenovo desktop computer....................1 set
HPA4 color inkjet printer.....................1 set
