VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-1
VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-2

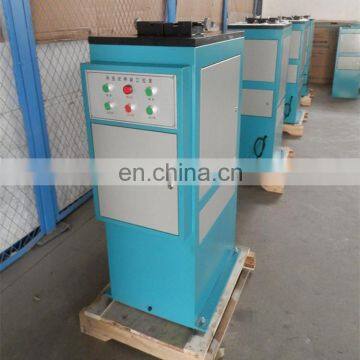

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-3

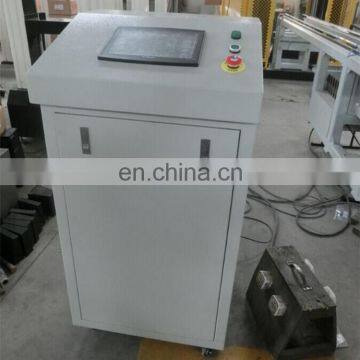

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-4

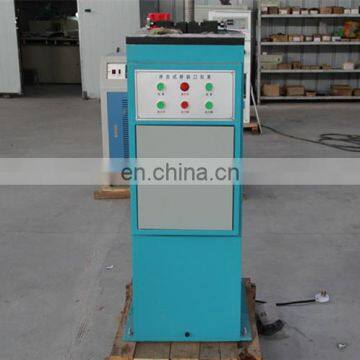

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-5

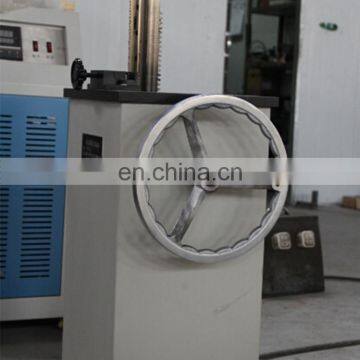

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-6

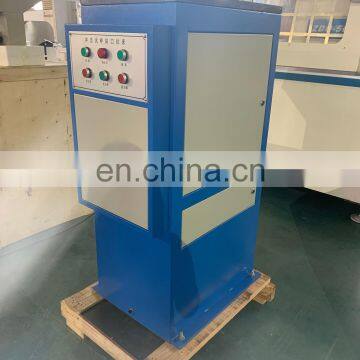

VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine photo-7
US$ 1,100 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
VU-2Y
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HST
Place of Origin Shandong, China
Model Number VU-2Y



VU-2Y Hydraulic Notch Cutter Charpy Double Knives U V Notch Impact Sample Broaching Machine



Mobile/whatsapp: +86-15866781190 Skype: hstbetty009



Product Description



VU-2Y Charpy UV Notch Broaching Machine, Metal Making Samples

1. Application



Notch Broaching Machine  is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research



2.Standards:



ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007



3.Features:





3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;

3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.



4. Main Technical Specifications:



Shape of sample notch

V2 mm,U2mm,(U3mm, U5mm alternative)

Sample size

(10, 7.5, 5)x10x55mm

Cutting mode

Hydraulic

Journey of broach

V2, U2, U3 350mm; U5 380mm

Broaching Speed

2.5m/min

Broach material

W18Cr4V

Power supply

380V 50Hz 0.4Kw

Max. Dimension

660x500x1240mm

Weight

200kg
