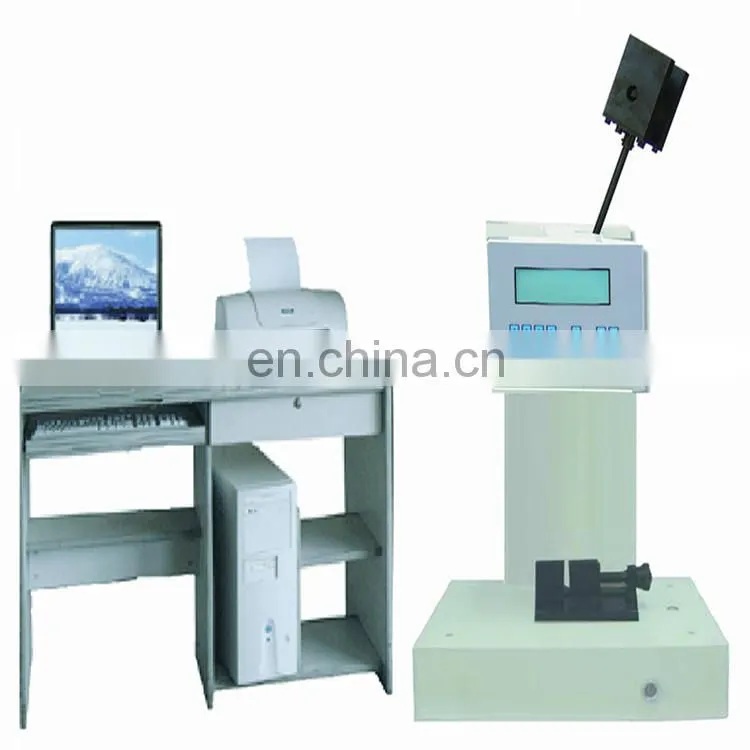

50J Computer Control Plastic Charpy And Izod Impact Testing Machine For GFPA FRP Ceramics Cast stone
1.Applications:
This machine is mainly used for impact toughness test of plastics, GFPA, FRP, ceramics, cast stone, plastic electrics, electrical insulating material and
other non-mental materials.
This machine is applicable to the Scientific research colleges and universities authority,nonmetallic material factory.
And other test labs and inspection department for testing.
This machine with wide range of impact energy. Izod and charpy can be in common use. Simple structure, easy operation and high test accuracy.
2.Standard:
2.1 |
GB/T 1043-93 |
Hard plastics charpy impact testing method. |
2.2 |
GB/T 1843-1996 |
Plastics izod impact testing method. |
2.3 |
JB/T 8761-1998 |
Plastics izod impact testing machine. |
2.4 |
JB/T 8762-1998 |
Plastics charpy impact testing machine. |
2.5 |
ISO 179-1993(E) |
Plastics-measuring of charpy impact strength. |
2.6 |
ISO 180-1993(E) |
Plastics--measuring of izod impact strength. |
2.7 |
GB/T 18743-2002 |
Thermoplastic plastic pipe for fluid delivery charpy impact test method. |
2.8 |
ASTM D256 |
Plastics anti izod impact testing method. |
A. Charpy Impact:
Impact Speed |
2.9 m/s and 3.8 m/s |
Pendulum Energy |
1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
Pendulum Center To Sample Center Distance |
221 mm, 380 mm |
Rising Angle Of Pendulum |
160° |
Pendulum Movement |
Pd 1=0.5155N.m; Pd 2=1.0311N.m; Pd 4=2.0622N.m; Pd 5=2.5777N.m Pd 7.5=3.8662N.m; Pd 15=7.7324N.m; Pd 25=12.8888N.m; Pd 50=25.777N.m |
Supporting Distance |
40mm, 60mm, 70mm, 95mm |
Supporting Blade Corner Radius |
R=1mm |
Impact Blade Angle |
30°
|
B. Izod Impact Testing:
Impact Speed |
3.5 m/s |
Pendulum Energy |
1J, 2.75J, 5.5J, 11J, 22J |
Rising Angle Of Pendulum |
160° |
Pendulum Impact Center To Impact Blade Distance |
322 mm |
Pendulum Movement |
Pd1=0.5155N.m; Pd2.75=1.4177N.m; Pd5.5=2.8355N.m Pd11=5.6711N.m; Pd22=11.3419N.m |
Impact Blade To The Plane Of The Jaw Distance |
22mm |
Blade Corner Radius |
R=0.8mm |
Sample Type Meet The Standard GB1843-80, ISO 180-82. | |
