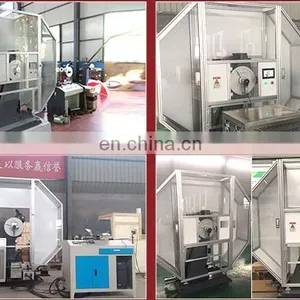

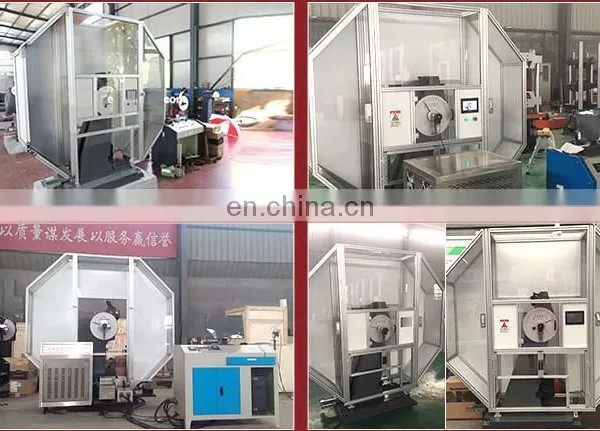

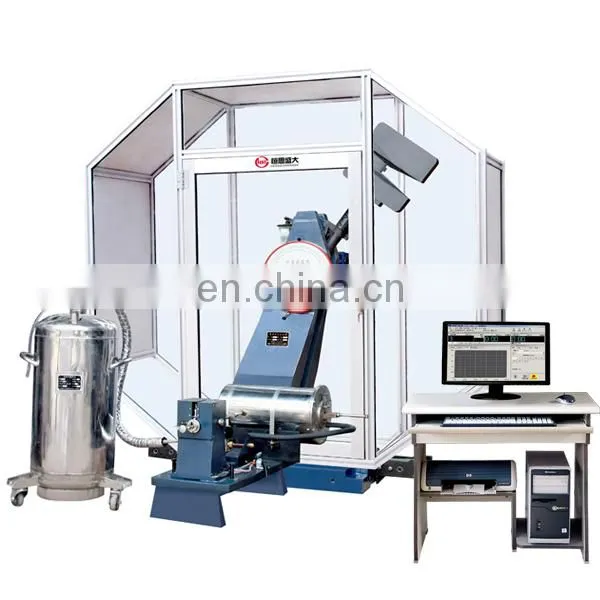

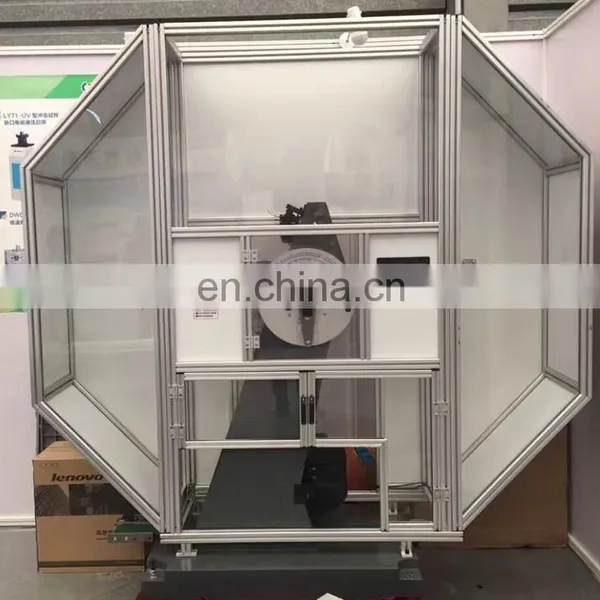

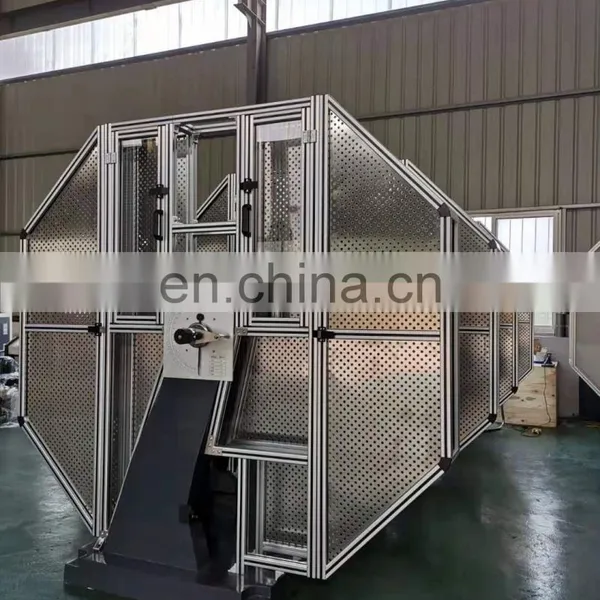

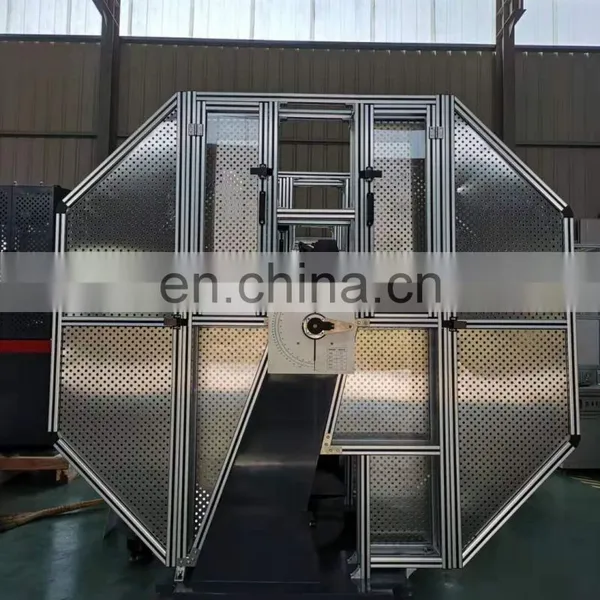

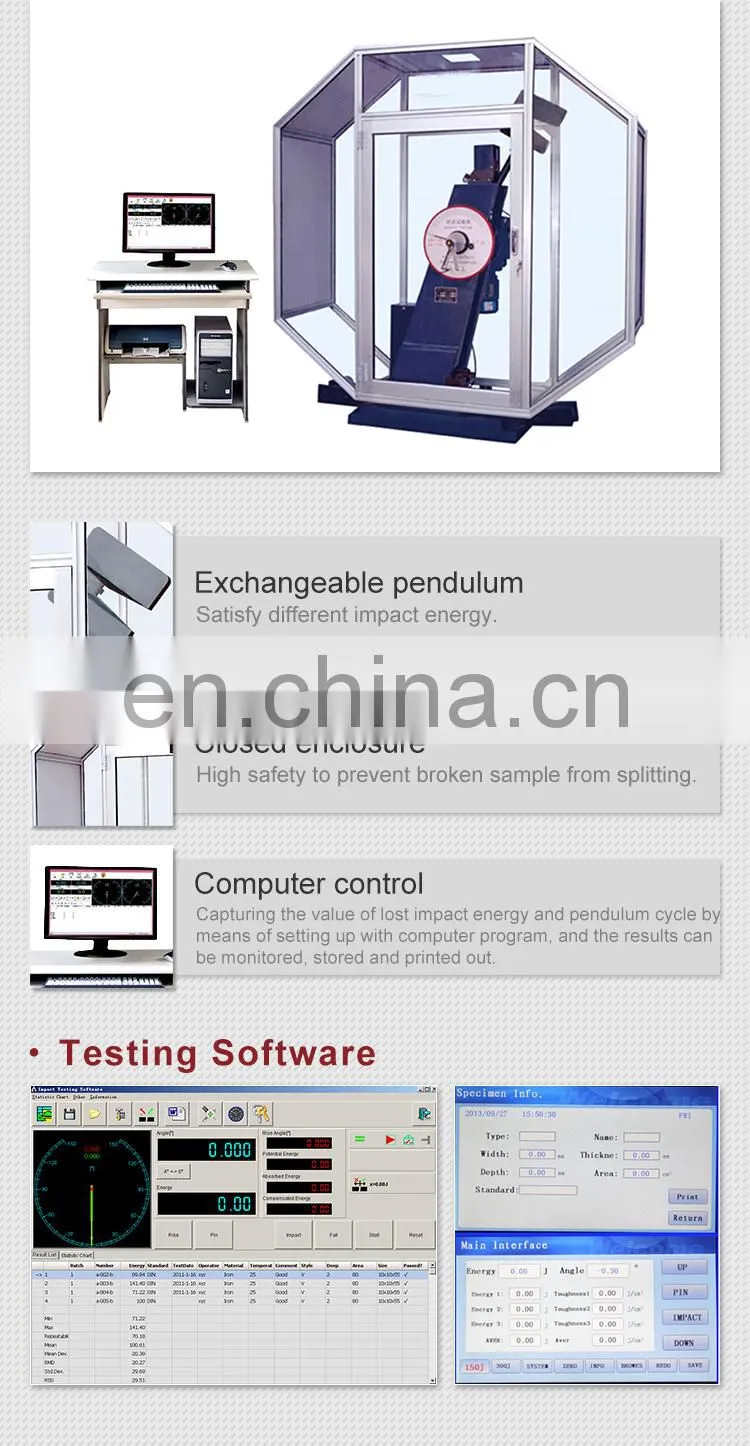

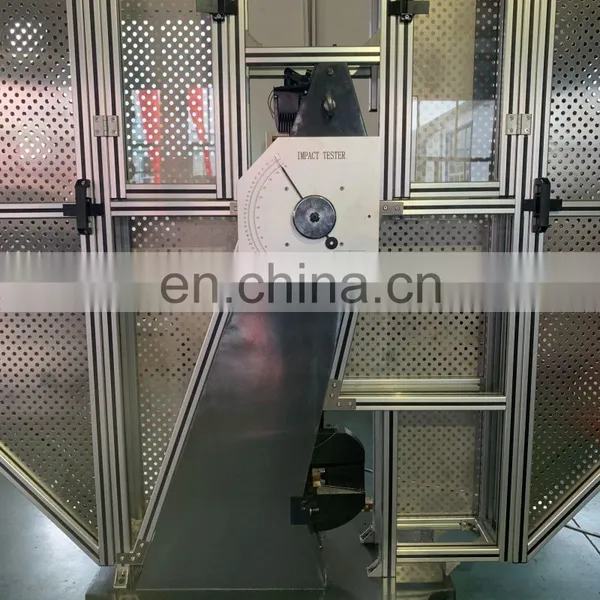

Computer Control Semi-Automatic Charpy Impact Testing Machine with Low Temperature Device
JBW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research.
Model |
JBW-300C |
JBW-450C |
JBW-600C |
JBW-750C |
Max. impact energy(J) |
300 |
450 |
600 |
750 |
Pendulum Torque |
160.7695 |
241.1543 |
321.5390 |
401.9238 |
|
The distance between the pendulum shaft and impact point |
750mm |
|||
Impact speed |
5.24 m/s |
|||
Raised angle |
150° |
|||
Round angle of the jaw |
R1-1.5mm |
|||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
Angle accuracy |
0.1° |
|||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
