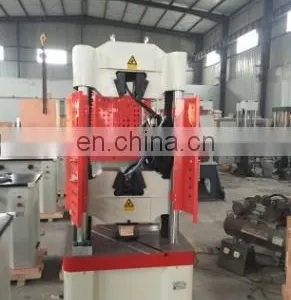

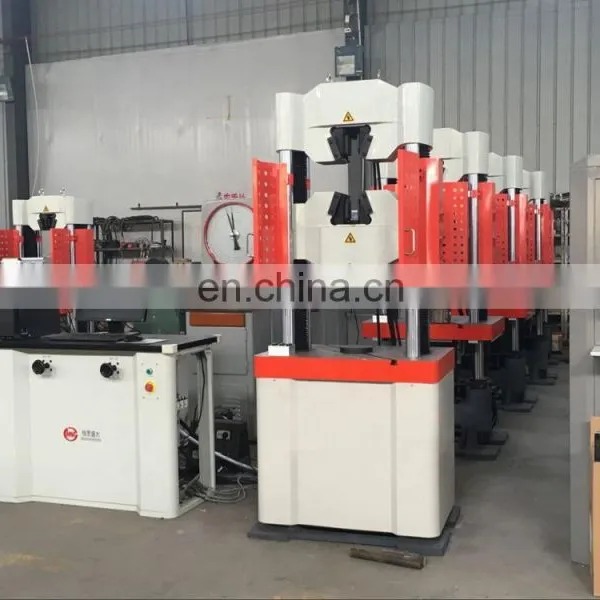

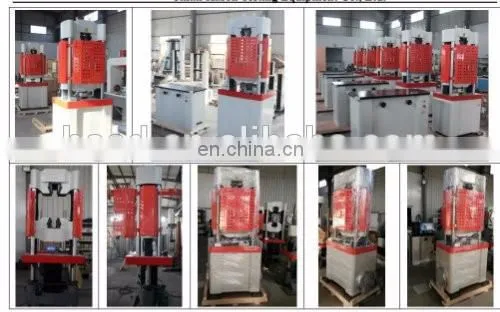

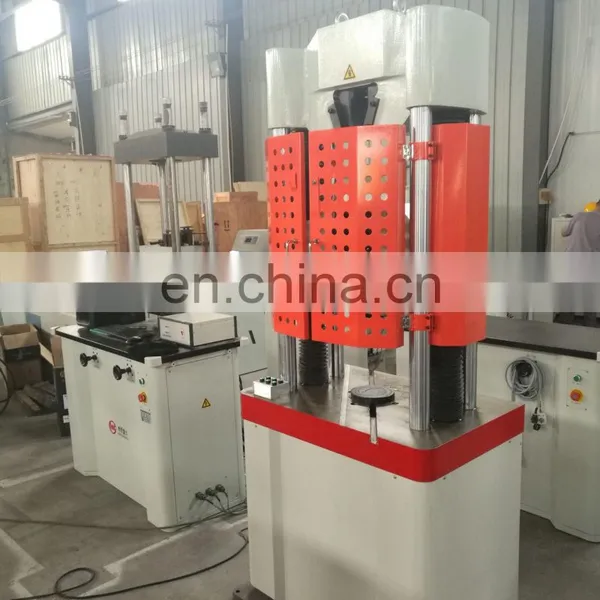

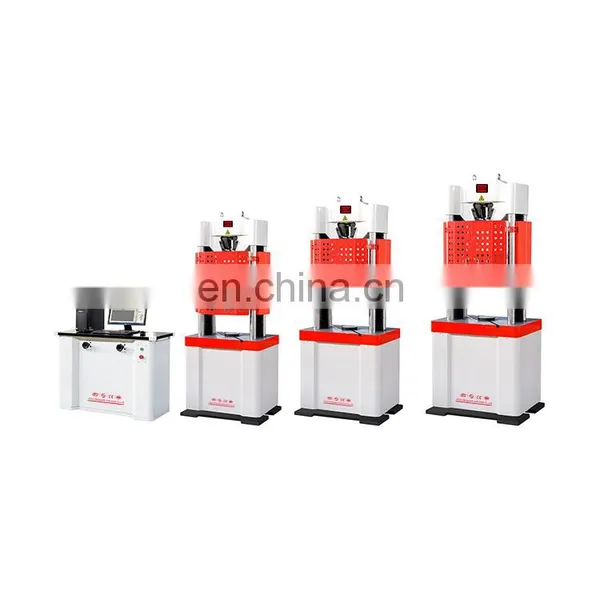

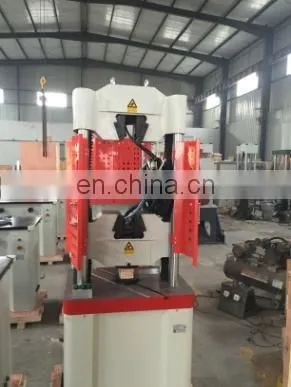

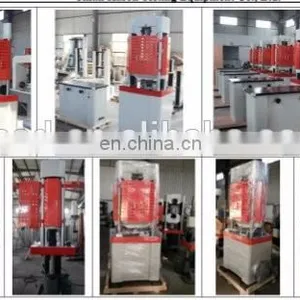

1000kn/2000kn Computer Control Hydraulic Universal Testing Machine
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Model |
WAW-2000D |
Structure |
4 columns and 2 screws |
Control way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
Max.load (kN) |
2000kN |
Load accuracy |
≤±1% |
Load range |
2%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1% |
Displacement resolution (mm) |
0.01 |
Displacement error |
≤±0.5% |
Max.piston stroke(mm) |
250 |
Max piston moving speed |
0-90mm/min stepless speed adjusting |
Crosshead lifting speed |
200mm/min |
Max. tension test space |
650mm (can customize) |
Max.Compression Test Space |
500mm (can customize) |
Column clearance(mm) |
525 |
Clamping method |
Hydraulic clamp |
