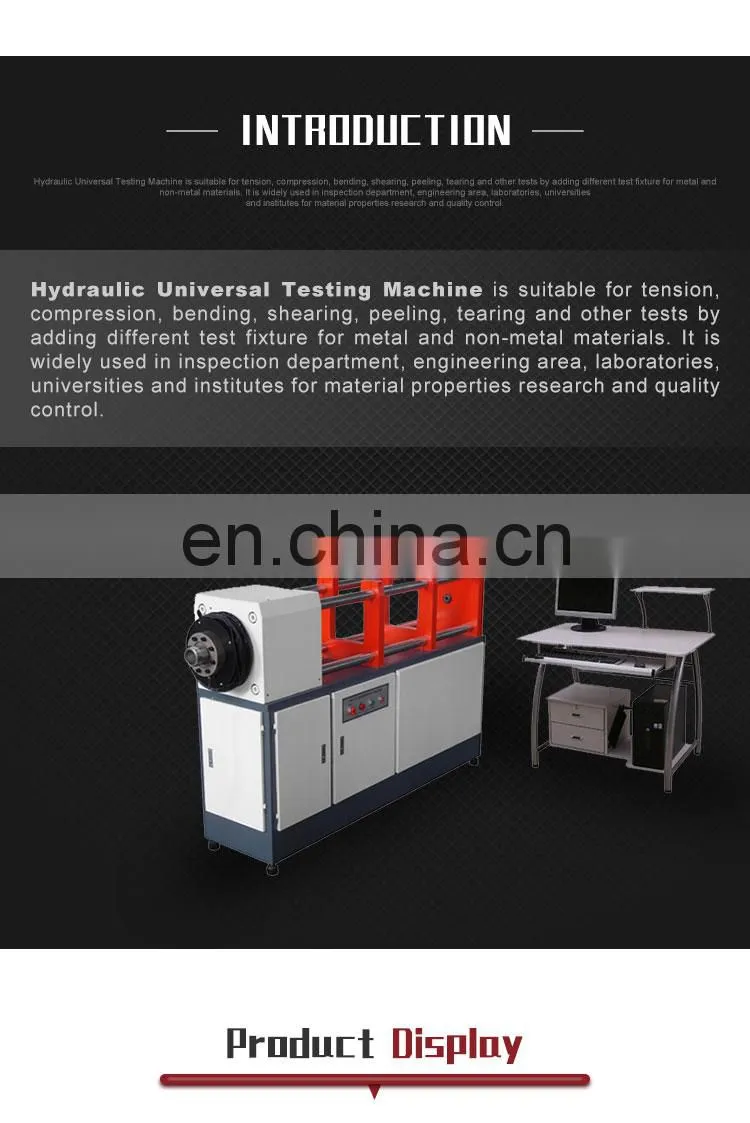

HSC-300 Computer Control
Steel Strand Tensile Stress Relaxation Testing Machine
HSC-300 Computer Control Steel Strand Tensile Stress Relaxation Testing Machine used to test the relaxation properties of the Steel Strand, Steel Bars and Stress Wires. using advanced Gear Of Tooth Modification technology, to ensure that testing machine structure compact, achieve precise measurement results, at the same time with high-quality accessories, to achieve efficient measurement.
This machine meet these <> and <> standards of steel at room temperature tensile stress relaxation test requirements.
This machine widely used in Quality Inspection Departments, Construction Building Entities, Steel Strand and Reinforced Manufacturing Companies and so on. It is a new model testing machine for Modern Building Mechanical Tests.
2.Main Specifications:
Model |
HSC-300 |
Host Structure |
Horizontal Type |
Max. Test Force |
300 KN |
2%~100% (6 KN~300 KN) |
|
Accuracy Of Testing Force |
Better Than ±0.5% Of Indicated Value |
Test Force Resolution |
10 N |
Max. Relaxation Test Space |
2000 mm (Do Not Including Stretching Stroke) |
Chucks Displacement Resolution |
0.001 mm |
Stretching Stroke |
200 mm |
Digital Micrometer |
Range: 10 mm, Resolution: 0.001 mm |
Test Force Indication Relative Error |
±1% |
Temperature Resolution |
0.1 °C |
Displacement Measurement Accuracy |
≤±0.5%FS |
Chucks Moving Speed |
0-20 mm/min |
Clamping Specimen Diameter |
φ9.53, φ12.7, φ15.24. OR Other Diameter Depend On Customers’ Requirements |
Constant Speed Control Accuracy |
≤±1% (Set Value) |
Test Time |
More Than 1000 Hours |
