WE-D 600/1000/1500/2000kN WE-D Digital Display Laboratory Testing Equipment
UTM/ Universal Tensile Testing Machine price
1. Application
Digital universal testing machine is suitable for doing testing experiments such as the tensile,
compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Features

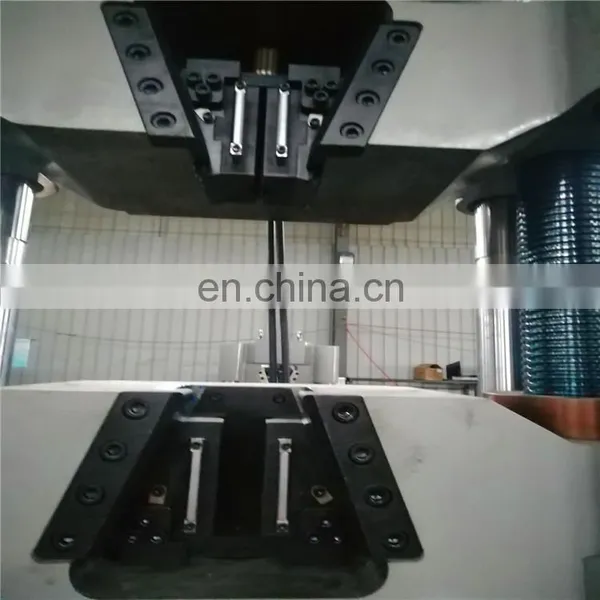

3.1 Specially designed extra-thick jaws block,sample clamp more reliable
3.2 Wear-resistant lining,protect jaws block
3.3 Fast operation testing system,multi specimen information imput
3.4 Consistant resolution,make sure data accuracy
3.5 Testing data real time display
3.6 Testing data auto analysis,save and print
3.7 Overload protection
3.8 History record check function
3.9 Software reserved data interface
4. Main Specifications
|
Model |
WE-100D |
WE-300D |
WE-600D |
WE-1000D |
|
structure |
Four column Two ball screw universal testing machine |
|||
|
Control way |
loading process manual control |
|||
|
Max. Load |
100kN |
300kN |
600kN |
1000kN |
|
Load range |
4%~100%FS |
|||
|
Load accuracy |
≤±1% |
|||
|
Test force resolution value |
0.01kN |
|||
|
Clamping Method |
Manual(Optional Hydraulic) |
|||
|
Mas piston moving speed |
50mm/min |
|||
|
Gantry adjust speed |
150mm/min |
|||
|
Max piston stoke |
250mm |
|||
|
Max. Tensile Test Space |
650mm |
|||
|
Max.Compression Test Space |
500 |
|||
|
Round Sample Clamping Diameter |
Φ6-Φ13mm |
Φ6-Φ26mm |
Φ13-Φ40mm |
Φ13-Φ40mm |
|
Flat Sample Clamping Diameter |
0-15mm |
0-15mm |
0-15mm |
0-30mm |
|
Clamping width of flat smple |
70mm |
70mm |
75mm |
75mm |
|
Pressure Plate Size |
Φ160/204x204(optional) |
|||
|
Bending Test Branch Roller Width |
140mm |
|||
|
Roller distance of bending |
600mm |
|||
|
Voltage |
380V/50Hz/3Phase(can be customized) |
|||
