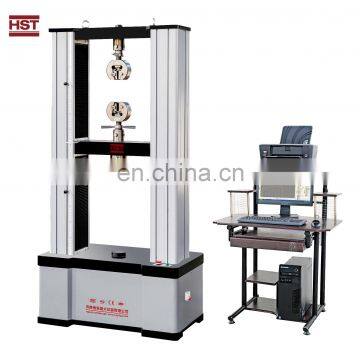

WDW Computer control Waterproof leather materials tensile tearing peel testing equipments
1. Application:
WDW Computer control electron pull push strength test machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .
2.Main Specifications:
|
Model |
WDW-5 |
WDW-10 |
WDW-20 |
WDW-30 |
WDW-50 |
WDW-100 |
|
Max. Load |
5kN 500kgf 1120lbf |
10kN 1000kgf 2240lbf |
20kN 2000kgf 4480lbf |
30kN 3000kgf 6720lbf |
50kN 5000kgf 11200lbf |
100kN 10000kgf 22400lbf |
|
Load accuracy |
≤±1% |
|||||
|
Load range |
2%-100% of full scale |
|||||
|
Load resolution |
1/200000 of full scale |
|||||
|
Disp. resolution |
0.01mm |
|||||
|
Test speed |
0.05-500mm/min |
0.05-300mm/min |
||||
|
Tensile space |
750mm|30in |
650mm|25.6in |
650mm|25.6in |
|||
|
Comp. space |
750mm|30in |
650mm|25.6in |
650mm|25.6in |
|||
|
test width |
375mm |
400mm |
420mm |
|||
|
Dimension |
730×430×1700mm |
755×480×1780mm |
825×600×1950mm |
|||
|
Power supply |
220V, 1ph, 0.5kW |
220V, 1ph, 0.75kW |
220V, 1ph, 1kW |
|||
|
Weight (kg) |
250kg|550lb |
280kg|616lb |
350kg|770lb |
|||
