WDW-10 Automatic Geotextile Tensile Testing Machine / Tensile Tearing Bursting Testing Machine

WDW-10 automatic Geotextile tensile testing machine / tensile tearing bursting testing machine

1. Application:

WDW  Geotextile Strength Testing Equipment are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .

2.Main Specifications:

3.  Feature:

  3.1 Main Unit:

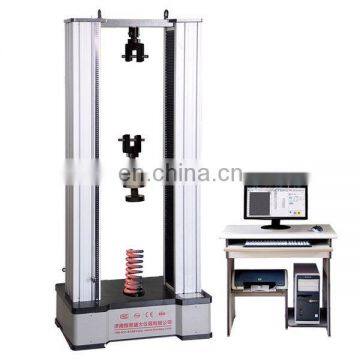

This machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.

3.2 Electrical measurement and control system

3.2.1 With protect function of overload,over current, over voltage, displacement  limit,emergency stop, etc .

3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.

3.2.3 When finished testing, automatic stop.

3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one

3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
