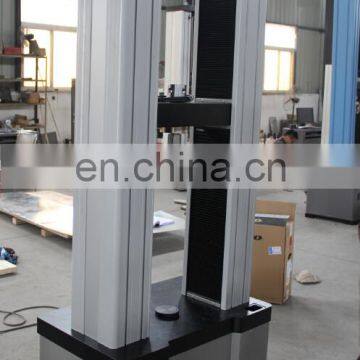

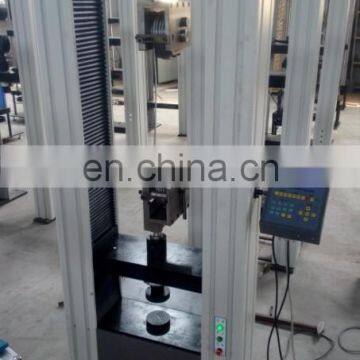

strength tester electronic machinery and equipments for wire and cable testing

Model

WDW-10

WDW-20

WDW-30

WDW-50

WDW-

100

WDW-200

WDW-300

Max. load

10kN

20kN

30kN

50kN

100kN

200kN

300kN

Tensile space

800mm

700mm

700mm

550mm

Compression space

800mm

700mm

700mm

550mm

Test width

400mm

500mm

550mm

600mm

Structure

Four-column floor type, (upper is compression and lower is tensile)

Control method

Computer control

Load accuracy

1 class/0.5 class optional

Load range

2%~100%F·S/0.4%-100% optional

Resolution

1/300000

Measuring range of deformation

2%-100%

Accuracy Indication of deformation

≤±1%

Disp. indicating relative error

≤±1%

Displacement Resolution

0.04um

Adjusting range of control rate of load

0.005~5%FS/S

Adjustment scope of deformation rate

0.005-5%FN/S

Adjusting range of displacement rate

0.05-500mm/min(can be customized)

Load Cell Configuration

One(max load), more load cells can be added according to customer requirement

Extend configuration

Large deformation extensometer, high or low

temperature teste chamber, high temperature oven

Power supply

AC220/380V±10%,50Hz (can be customized)

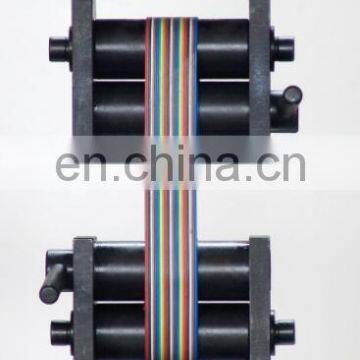

Grips

Manual/Hydraulic automatic optional

Dimension

1000x550x2076 mm

Weight

160kg

460kg
