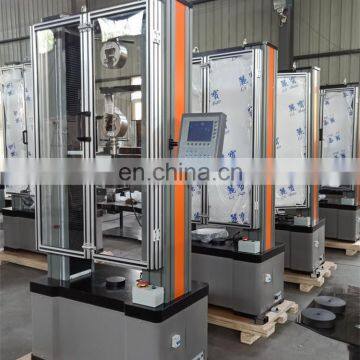

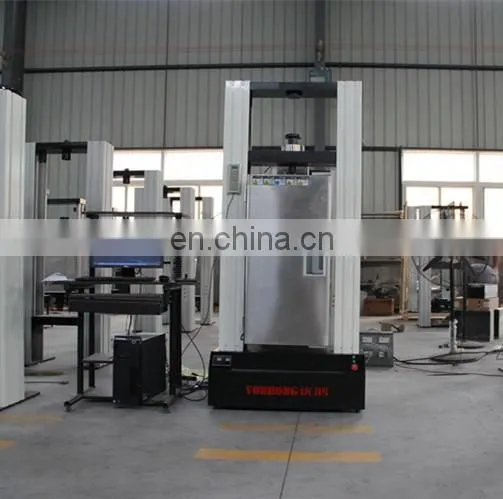

WQT computer control iron ore pellets compression tester
Application:
The test machine meets the requirements of the method for determination of compressive strength of GB/T14201-93 pellet ore . Used to measure the melting of iron ore pellet compression strength. This machine can also be used for other metals, non-metallic and other composite material to test and analysis of mechanical properties of materials for study.Widely used in the foundry, metallurgy, mining and other industries.
Technical Parameter:
Model |
WQT-5 |
WQT-10 |
WQT-20 |
Max test force |
5 kN |
10 kN |
20 kN |
Level |
1 class |
||
Force accuracy |
2%-100% |
||
Displacement accuracy |
Better than ±1% |
||
Test speed |
0.05-500mm/min |
||
Displacement resolution |
0.01 |
||
Effective compression space |
700 mm |
||
Effective test width |
370mm |
||
Compression |
700mm |
||
Power |
0.5kw/AC220V±10%. |
||
Working environment |
tempetature10-35°C, humidity 20%-80% |
||
Mainframe dimension (mm) |
690*380*1650 |
||
Weight (kg) |
320 |
||
