Home > Instruments & Meters > Test Instrument > Test Machine > WDW-500E/600E 500kn 600kn Universal Tensile Strength Testing Machine CE APPROVED
WDW-500E/600E 500kn 600kn Universal Tensile Strength Testing Machine CE APPROVED
US$ 5,000 - 13,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
WDW-500E/600E
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100KN Computer Controller Electronic Universal Tensile Strain Testing Measurement Instrument Machine For SaleUS$ 6,300 - 6,500MOQ: 1 Set -
UTM Universal Testing Machine With High Temperature FurnaceUS$ 1,500 - 2,000MOQ: 1 Set
-
UTM Tensile Strength Testing Machine With High-low Temperature ChamberUS$ 2,000 - 5,000MOQ: 1 Set
-
High Temperature Bending Strength Tester Universal Tensile Testing MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
10N New Design Desktop Electronic Testing Machines For Spring Supply SupplierUS$ 3,450 - 4,000MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
WDW-500E/600E
Power
Electronic
tensile testing machine

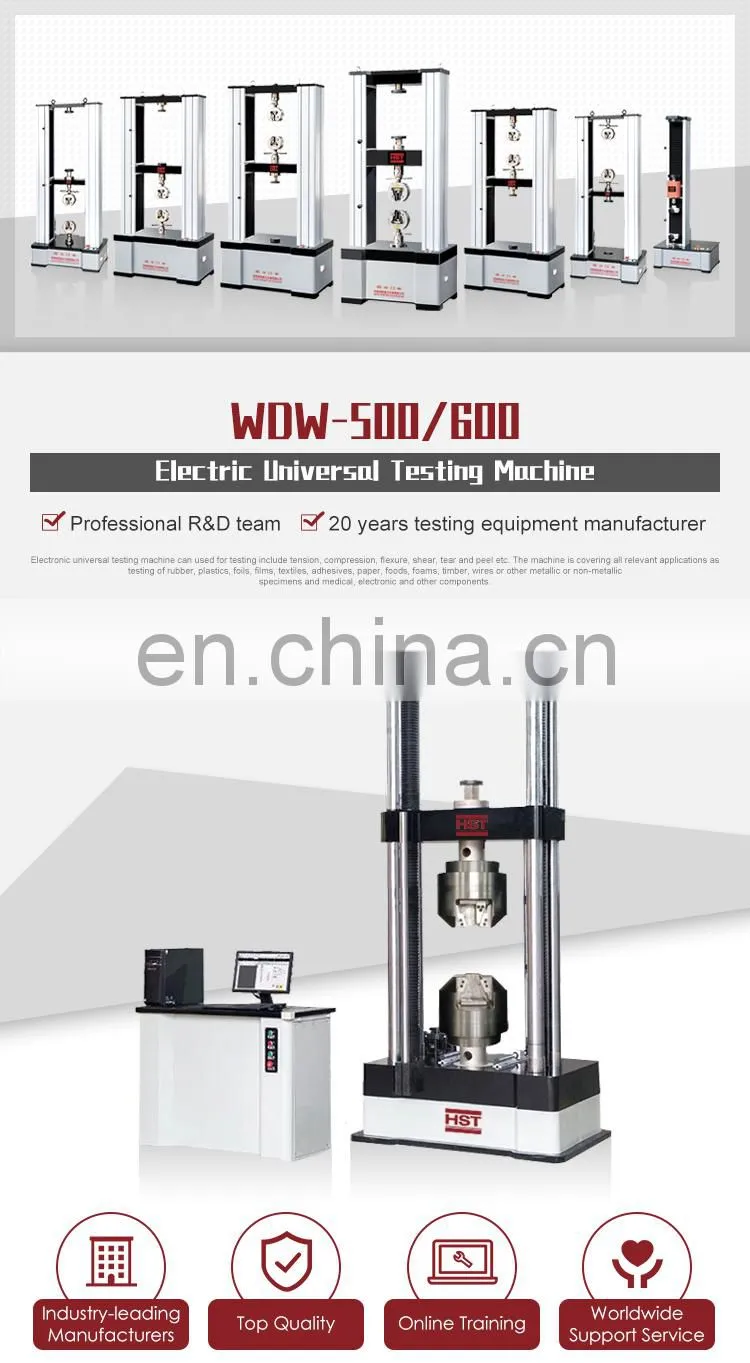

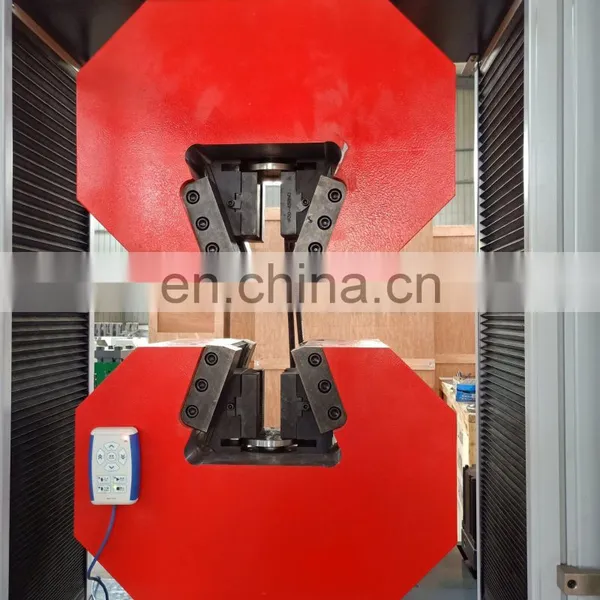

WDW-500E/600E 500kn 600kn electronic Universal testing machine UTM

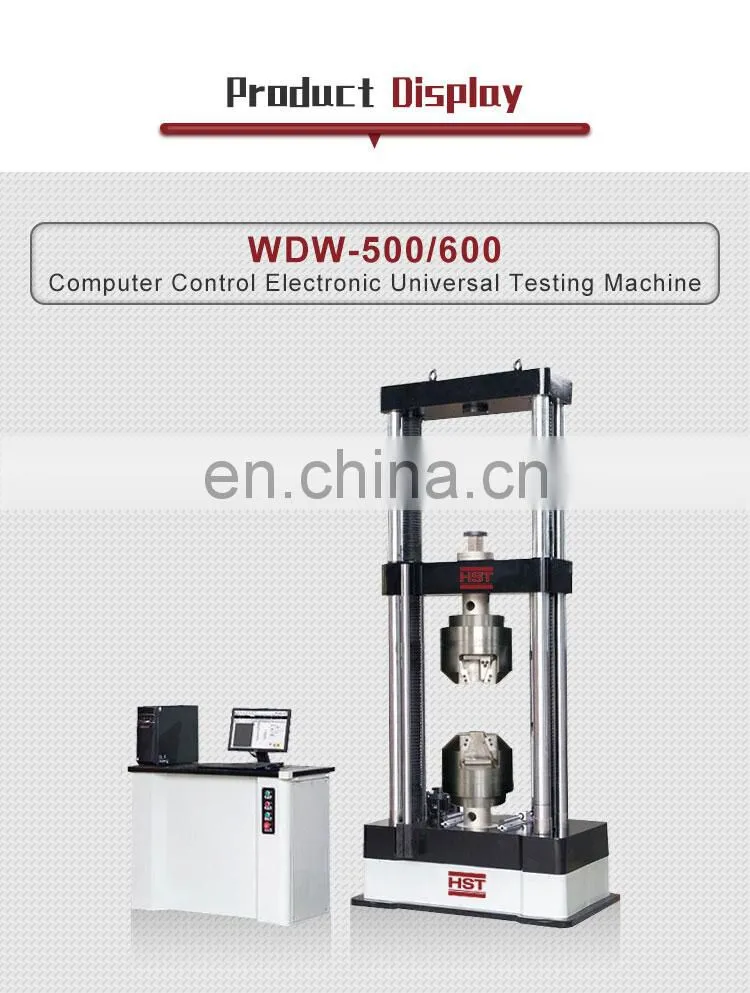

Product Display
Main Unit Feature:
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
1 The main frame is designed with high rigidity ,the overall is simple and clear;
2 The working height is adjustable and easy for the experimenter to operate;
3 High-performance helical gear reducer with large load, low noise, low temperature rise, high reliability and long life use.
4 Innovative integrated design controller, directly placed on the host side, built-in electrical components, control boards, etc.,

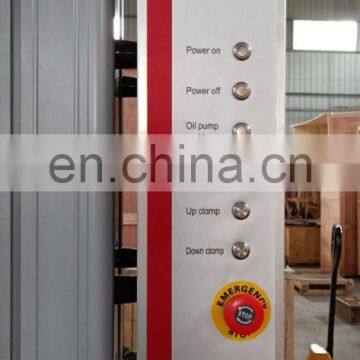

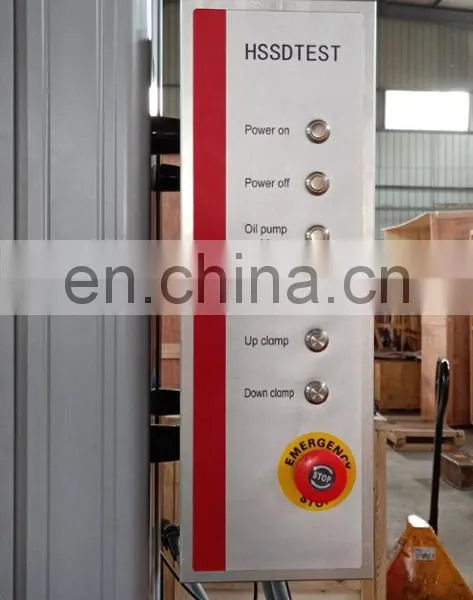

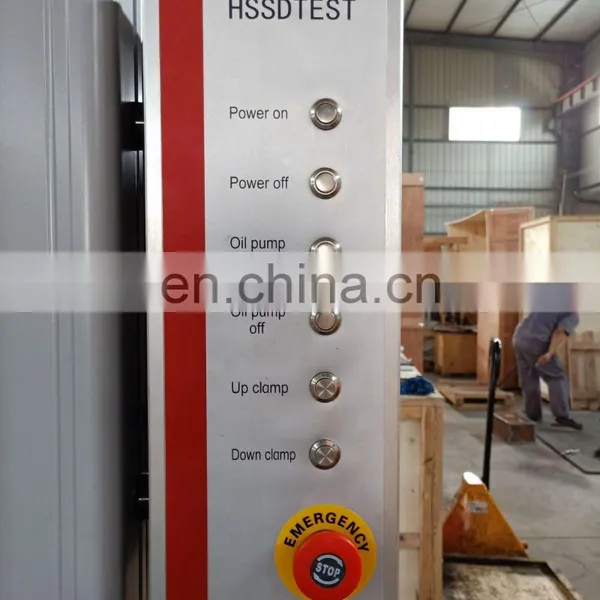

5 The controller panel is equipped with electrical buttons, easy to operate.6 The coaxial beam is mounted on the middle beam to ensure the coaxiality of the upper and lower clamps.
Model | WDW-500E/WDW-600E |
Max. Load(kN) | 500/600 |
Load accuracy | Class 0.5 |
Load range | 0.2%~100%F·S |
Load resolution | 1/300000 |
Resolution of deformation | 0.04um |
Accuracy of displacement | Within±0.5%of indicating load |
Resolution of displacement | 0.01mm |
Test speed(mm/min) | 0.05-200 stepless arbitrary setting |
Within ±0.5% of set speed | |
E-Tensile space(mm) | 1000 (can be customized) |
E-Compression space(mm) | 850 (can be customized) |
D-Test width(mm) | 800 (can be customized) |
F-Beam travel distance(mm) | 1150 |
H-Workbench thickness(mm) | 108 |
I-Base height(mm) | 540-970 adjustable |
Power supply | AC380V/220V±10%,50Hz/60Hz (can be customized) |
Weight(KG) | 4300 |
