Home > Instruments & Meters > Test Instrument > Test Machine > WDS-5kn Single-Arm Tensile Strength Testing Machine for 0.75mm Cold Drawn Steel Wire

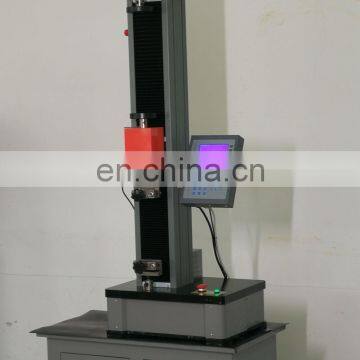

WDS-5kn Single-Arm Tensile Strength Testing Machine for 0.75mm Cold Drawn Steel Wire
US$ 1,700 - 1,900
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST OR OEM
Place of Origin:
Shandong, China
Model Number:
WDS-5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO 80369 Medical Bone Screw Axial Tension And Torsion Testing MachineUS$ 1,999 - 9,999MOQ: 1 Set -
WDW-2 2000n Rubber Tensile Testing MachineUS$ 1,400 - 1,500MOQ: 1 Set
-
ASTM EN ISO 100kn Geotextile Grid Testing Machine/Universal Testing Machine FactoryUS$ 1,000 - 9,000MOQ: 1 Set
-
10/20/50/200/300KN Geogrid Universal Tensile Strength Testing Machine With Geogrid Winding FixtureUS$ 4,800 - 5,500MOQ: 1 Set
-
WDW-10/20KN Computer Control Geotextile Puncture Tear Tensile Strength Testing MachineUS$ 3,999 - 7,999MOQ: 1 Set
Brand Name
HST OR OEM
Place of Origin
Shandong, China
Model Number
WDS-5
Power
Electronic
WDS-5kn Single-Arm Tensile Strength Testing Machine for 0.75mm Cold Drawn Steel Wire
We could help to customize the special grips for the 0.75mm Cold Drawn Steel Wires as below:
1. Application:

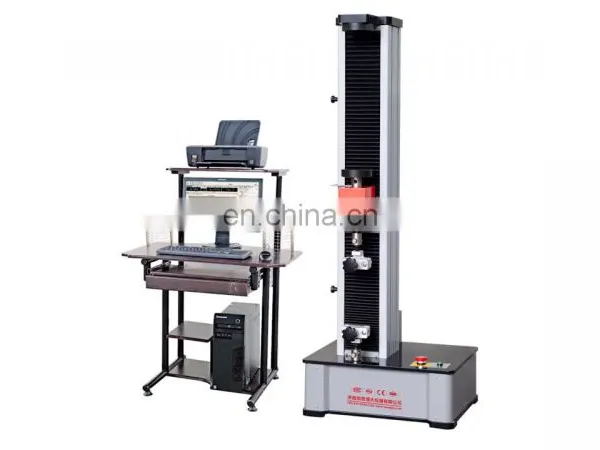

WDS series digital display Universal Tensile Strength Testing Machine are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Main Specifications:
|
Model |
WDS-02 |
WDS-05 |
WDS-1 |
WDS-2 |
WDS-3 |
WDS-5 |
|
Max. Load |
0.2kN 20kgf 44.8lbf |
0.5kN 50kgf 112lbf |
1kN 100kgf 224lbf |
2kN 200kgf 448lbf |
3kN 300kgf 672lbf |
5kN 500kgf 1120lbf |
|
Load accuracy |
≤±1% |
|||||
|
Load range |
2%-100% of full scale |
|||||
|
Disp. resolution |
0.01mm |
|||||
|
Test speed |
0.05-500mm/min|0.001968-19.685in/min |
|||||
|
Tensile space |
750mm|30in |
|||||
|
Dimension |
550×350×1580mm |
|||||
|
Power supply |
220V, 1ph, 0.5KW |
|||||
|
Weight (kg) |
150KG|330lb |
|||||
