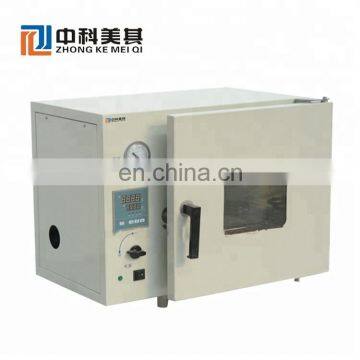

Desktop vacuum oven
Product Usage:
Vacuum drying oven is widely used in research and application fields such as biochemistry, chemical and pharmaceutical, medical and health, agricultural research, and environmental protection. It is used for powder drying, baking, and disinfection and sterilization of various types of glass containers. It is particularly suitable for the rapid and efficient drying of dry heat-sensitive, easily decomposable, easily oxidizable substances and complex ingredients.
Product advantages:
1. The vacuum environment greatly reduces the boiling point of liquids that need to be expelled, so vacuum drying can be easily applied to heat-sensitive substances;
2. For samples that are not easily dried, such as powders or other granular samples, vacuum drying method can effectively shorten the drying time;
3. All kinds of complicated mechanical parts or other porous samples are cleaned and vacuum-dried. After drying completely, no substances are involved;
4. Safer use - completely eliminate the possibility of oxides exploding under vacuum or inert conditions;
Compared to ordinary drying relying on air circulation, powdered samples are not blown or moved by moving air.
Product Features:
1. With the power failure, the status data and the saved parameter memory are lost, and the call recovery function is enabled. Adopting the domestic first streamlined arc design, the shell is made of cold-rolled steel plate and the surface is electrostatically sprayed;
2. It adopts dual-screen high-brightness digital tube display, with accurate and intuitive indication, superior performance, and touch-sensitive keys to set adjustment parameters;
3, the temperature has a timing function, the timing of up to 9999 minutes;
4, the liner is made of stainless steel 3mm thick, semi-circular four corner design is more convenient to clean;
5. The outer box adopts the 1.2mm SECC steel plate that is commonly used in the international equipment industry. The outer surface of the steel plate is treated with precise double-layer powder paint. Compared with the ordinary exterior coating process, the appearance is more beautiful and the anti-corrosion and anti-rust performance is enhanced;
6. The looseness of the door of the chassis can be adjusted by the user at will, and the integrally formed silicon rubber door seal ensures high vacuum inside the box.
7. The machine studio is a rectangular structure that maximizes the effective volume. The door is made of toughened, bullet-proof double-glazed glass doors, making it easy for the user to see at a glance the culture contents of the observation studio.
Technical indicators:
product name | Desktop vacuum oven | ||||
Product number | MQ-DZF-6020 | MQ-DZF-6030 | MQ-DZF-6050 | MQ-DZF-6090T | |
Nominal volume/L | 20 | 30 | 50 | 90 | |
Carrier bracket/block | 1 | 1 | 2 | 2 | |
Vacuum degree/Pa | 133 | 133 | 133 | 133 | |
voltage | AC 220V±10%/50Hz±2% | AC 220V±10%/50Hz±2% | AC 220V±10%/50Hz±2% | AC 220V±10%/50Hz±2% | |
Inner size | Width × depth × height (mm) | 300×300×275 | 320×320×300 | 450×450×450 | 450×450×450 |
External size | Width × depth × height (mm) | 580×450×450 | 630×510×460 | 760×600×720 | 760×600×720 |
input power | Unit/W | 500 | 800 | 2400 | 2400 |
performance index
| temperature range | RT+10℃~250℃ | |||
Temperature fluctuation | ≤±0.5℃ | ||||
Temperature resolution | 0.1℃ | ||||
Timing range | 0-9999min | ||||
The main components
| Temperature measurement and control system | Microcomputer single-chip design, with temperature control, timing, over-temperature alarm function | |||

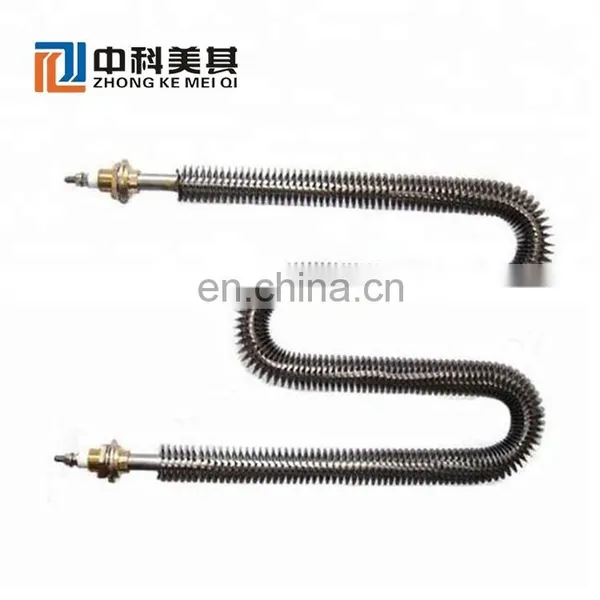

Heating system | Nickel-chromium alloy electric heater, evenly distributed around the outer wall of the studio, to ensure good temperature uniformity inside the box | ||||
Electrical control system | Electrical components use domestic famous brand "Zhengtai", control cabinet at the top of the cabinet | ||||
Circulatory system | Double-cycle system, consisting of stainless steel multi-wing centrifugal wind turbine and circulating air duct | ||||
main material | Carton material | High-quality cold-rolled steel plate, green metal spraying | |||
Inner box material | International standard SUS304# stainless steel mirror treatment | ||||
Insulation material | High-quality ultra-fine glass fiber insulation cotton | ||||
Sealing material | High temperature and environment-friendly silicone rubber seal | ||||
Optional accessories (charged) | Programmable LCD Controller, Independent Temperature Limit Controller, Paperless Recorder, RS-485 Interface, Temperature Test Hole, Load Carrier | ||||
safety devices | Over-temperature alarm, over-current protection, quick fuse, ground protection | ||||
Environmental requirements | Ambient temperature: 5~35°C, relative humidity: ≤85%RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around | ||||
Note: 1, temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test; 2, according to the specific requirements of users customized non-standard high-temperature test box; 3. This technical information is subject to change without notice. | |||||
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
