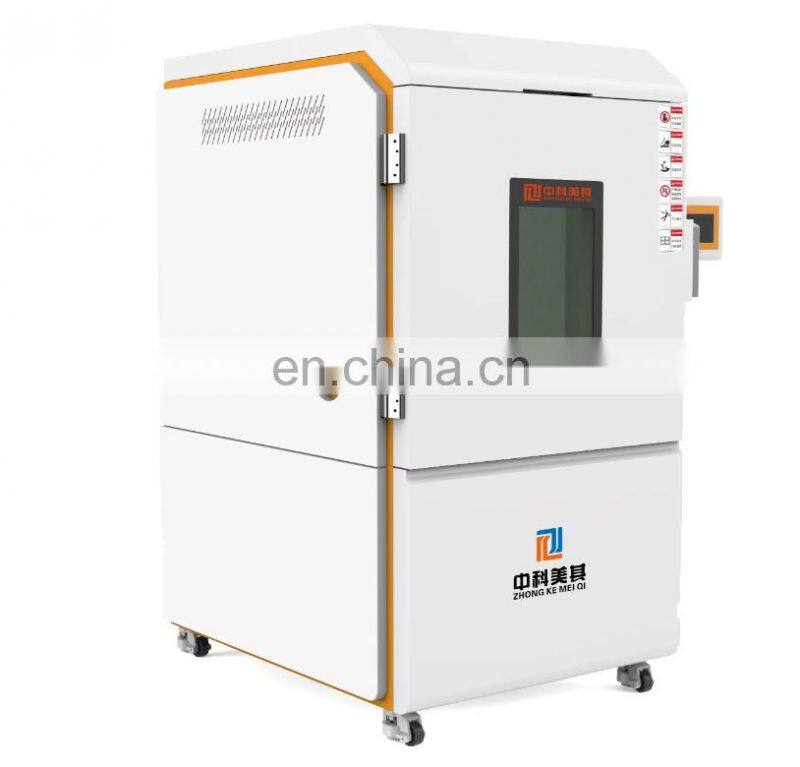

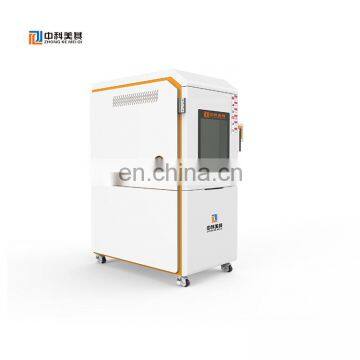

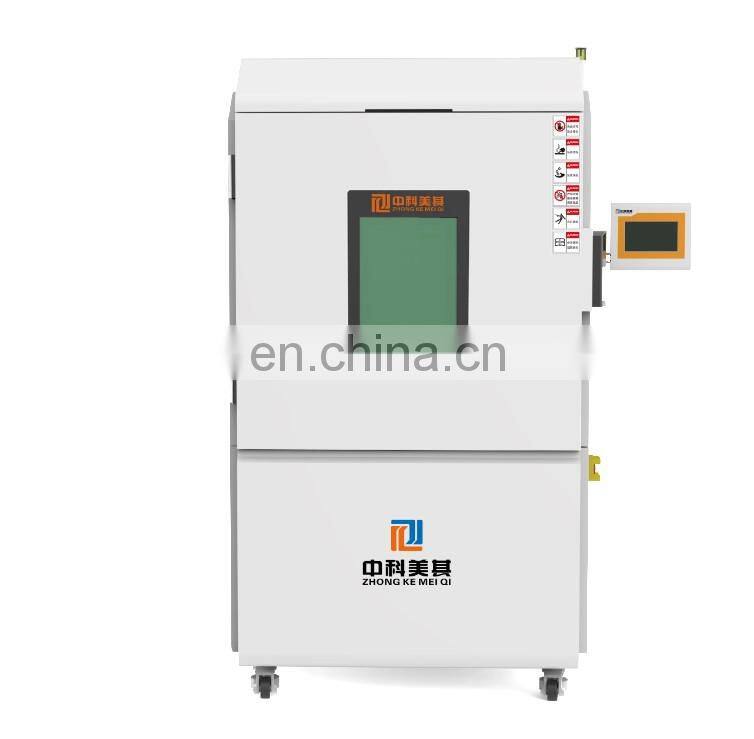

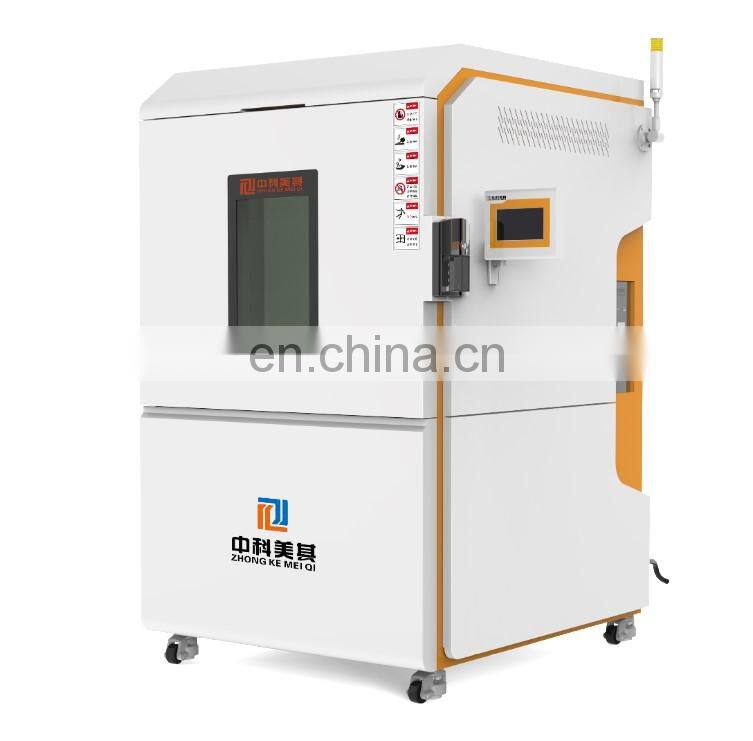

High Low temperature test chamber environmental test equipment with CE certificate

product name

High and low temperature test chamber

Product number

MQ-T100F-2

MQ-T250F-2

MQ-T500F-2

MQ-T1000F-2

Nominal volume

unit/L

100

250

500

1000

Inner size

Width × depth × height (mm)

450×450×500

600×600×700

750×750×900

1000×1000×1000

External size

Width × depth × height (mm)

650×1000×1450

800×1200×1700

950×1400×1900

1200×1500×1950

Performance

Temperature range

A,-40℃~150℃   B,-70℃~150℃  C,-90℃~150℃  D,-120℃~150℃

Temperature fluctuation

±0.5℃

Temperature uniformity

≤2.0℃

Temperature deviation

≤±2.0℃

Heating rate

≥2.0℃/ Min

Cooling rate

≥2.0℃/ Min

Linear temperature control

0.5~1.0℃/Min

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled

The main components

Control System

Siemens programmable controller + touch screen + independent development program

Heating system

Fully independent system, high efficiency stainless steel finned tube heater

Cooling System

Importer-type scroll compressor

Circulatory system

Temperature and low noise motor, stainless steel centrifugal impeller

Use materials

Carton material

High-quality carbon steel plate, phosphating electrostatic spray treatment

Inner box material

International standard SUS304# stainless steel mirror treatment

Insulation material

Hard flame retardant polyurethane foam

Sealing material

High and low temperature environment-friendly silicone rubber seal

voltage

380±10% VAC,50Hz,3L+N+G

Communication Interface

RS232 communication interface, USB data interface

Standard configuration

Sample holder 1 set, test lead hole 1 set

Optional accessories

Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge

safety devices

Leakage, short circuit, motor overheating, heater overheating, compressor overpressure, overload, multiple overtemperature protection

Environmental requirements

Ambient temperature: 5~35°C, relative humidity: ≤85%RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around

Note:

1.temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;

2. according to the specific requirements of users customized non-standard high and low temperature test box;

3. This technical information is subject to change without notice.
