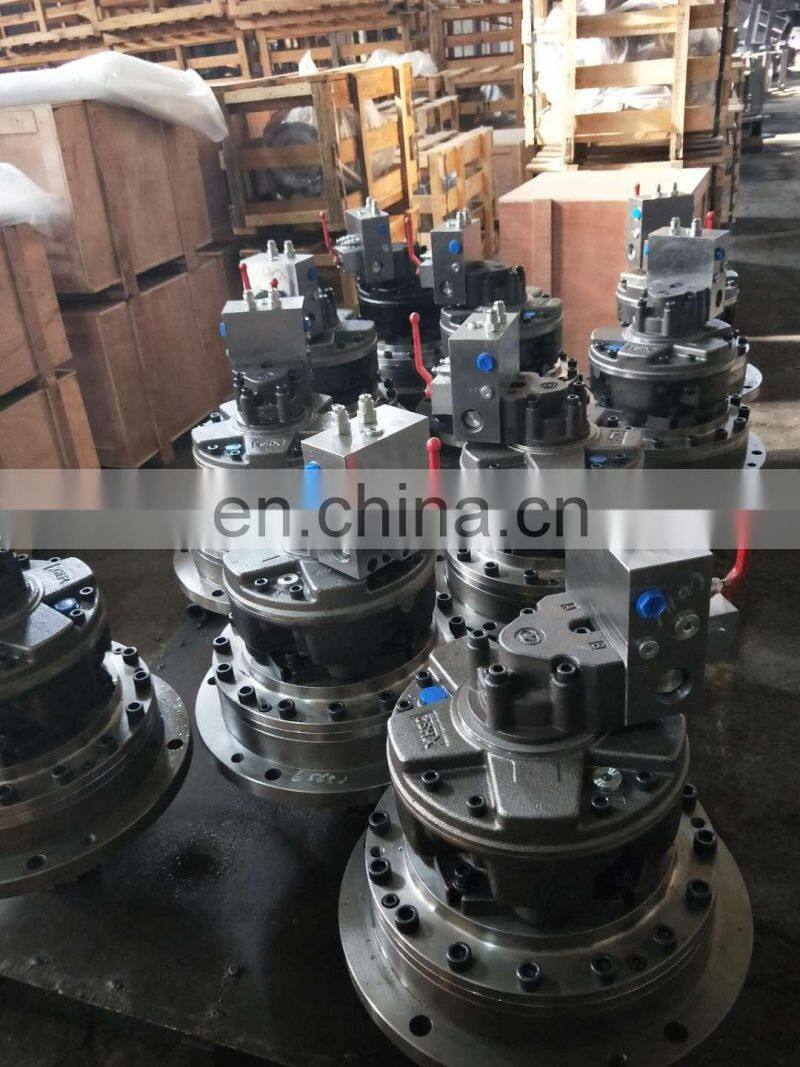

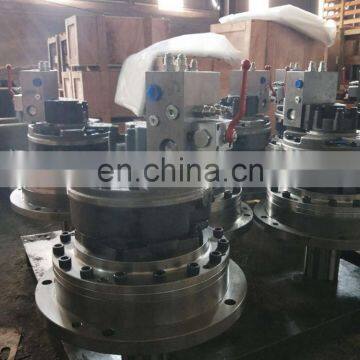

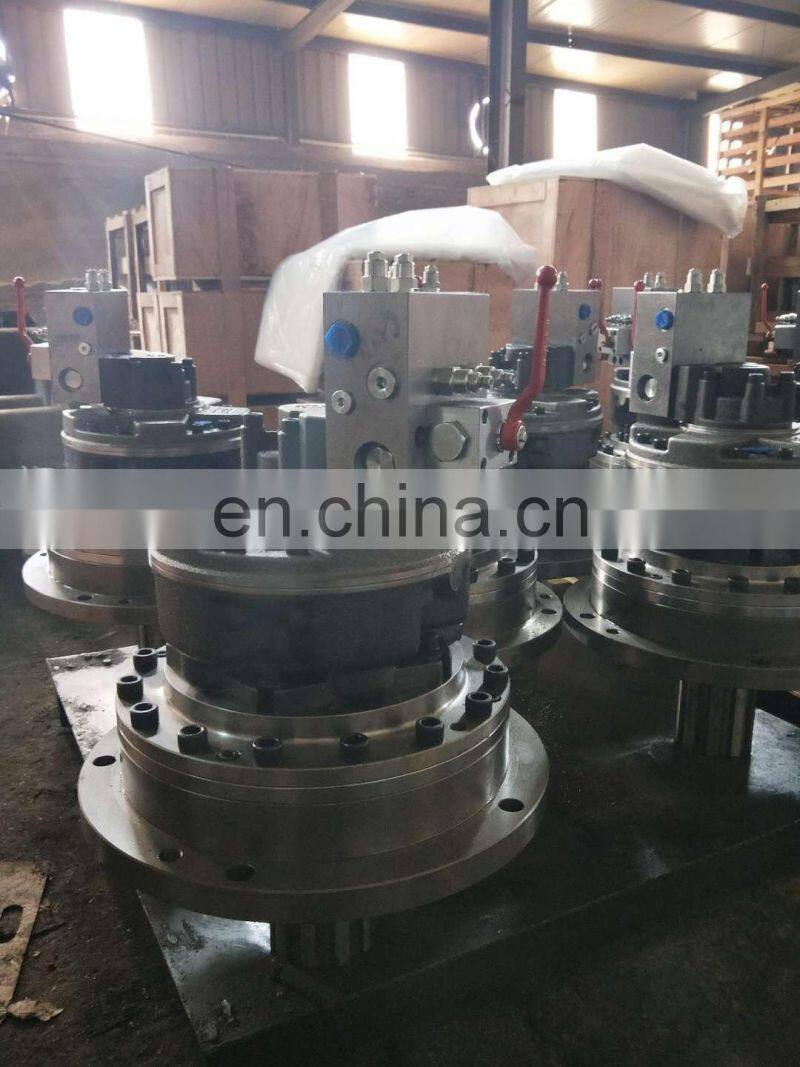

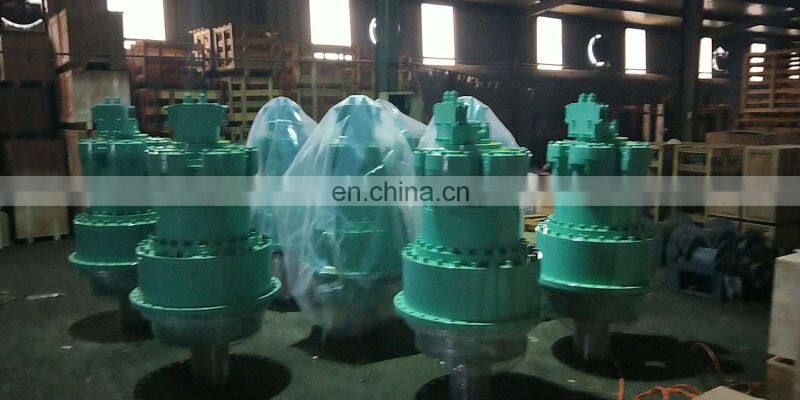

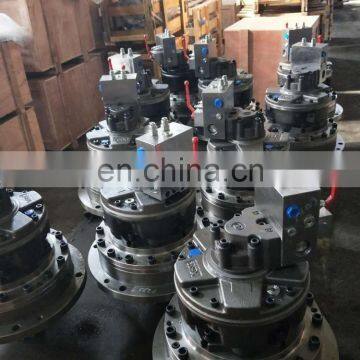

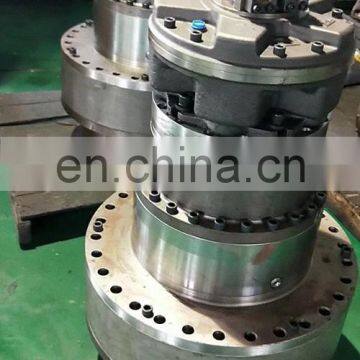

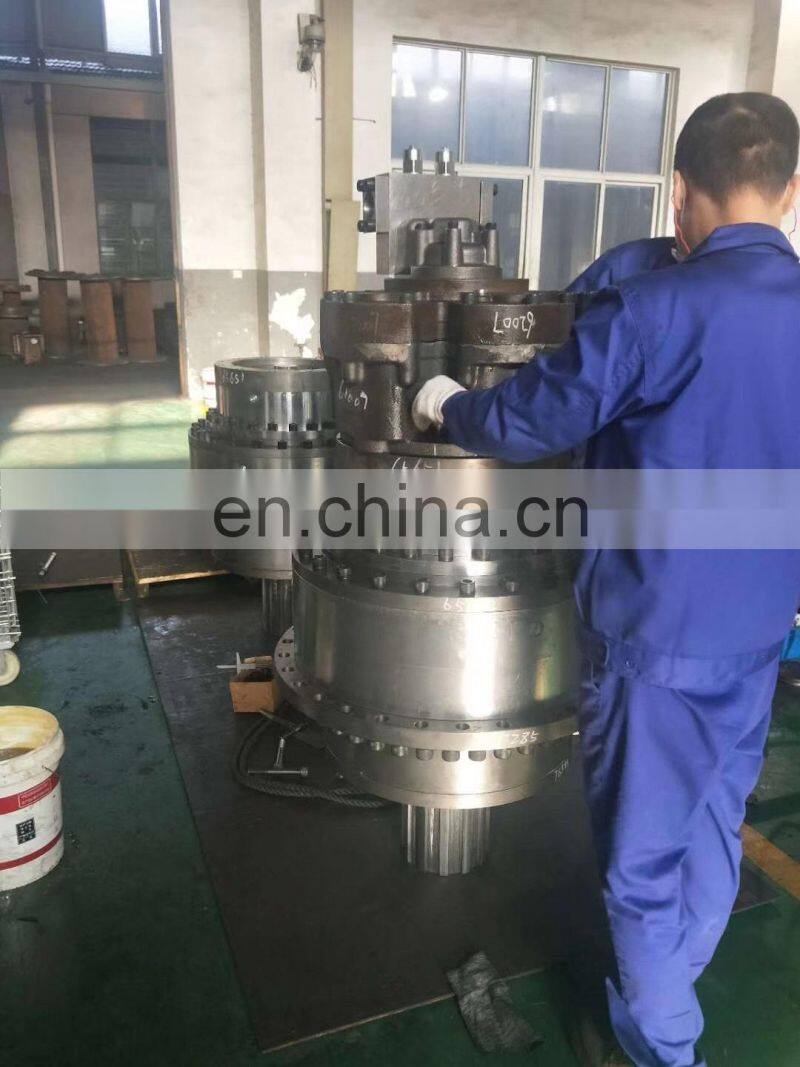

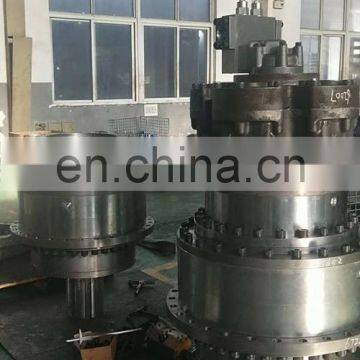

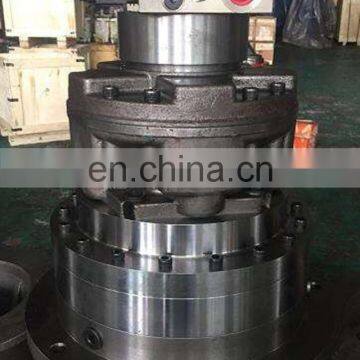

Hydraulic Planetary Gearbox Driven by Sai GM Hydraulic Motor

 Hydraulic Planetary Gearbox Driven by Sai GM Hydraulic Motor

       1-   GMG series hydraulic transmission drive can work under high pressure.

2-   Hydraulic oil: recommend using high quality, anti-foam and anti-oxidation mineral hydraulicoil.

The ideal working oil temperature is 30℃ to 50℃ and the permissible oil temperature is between -20℃ to 80℃ When oil temperature is lower than 10℃ low-freezing hydraulic oil must be used. The viscidity of hydraulic oil is between 40-60 CST and

the permissible viscidity is 5-300 CST.

3-   The recommended hydraulic oil filtering precision is 25μm or more precision.

       4-  The hydraulic transmission device can rotate in both directions; please see the details in the charts. If users require the equipment to rotate in opposite direction, please make notes when you place orders.

  Gear modulus of gearbox & stage

GMG2.5: displacement: 575~1050 (cc/rev)

GMG 3: displacement:1220~2327 (cc/rev)

GMG 4: displacement:2455~4378 (cc/rev)

GMG 5: displacement:5190~11028 (cc/rev)

GMG 6: displacement:12475~16720 (cc/rev)

GMG 7: displacement:14912~23645 (cc/rev)

GMG 9: displacement:23092~66132 (cc/rev) GMG2.53: displacement:1695~3820 (cc/rev) GMG34: displacement:4018~8115 (cc/rev)

GMG45: displacement:6965~13810 (cc/rev)

GMG56: displacement:12311~25289 (cc/rev) GMG67: displacement:29220~45750 (cc/rev) GMG79: displacement:40145~83456 (cc/rev)

More detailed technical data, please contact our company .
